0331-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .037-.043 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Finish	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Socket Depth	Socket Depth	Termination
Mill-Max Manufacturing Corp. 0331-0-15-01-18-27-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.043 in	1.09 mm	0.94 mm	0.037 in	Gold	Beryllium Copper	0.09 in	2.29 mm	30 Áin	0.76 Ám	1.37 mm	0.054 in	1.8 mm	0.071 in	No Tail	3.23 mm	0.127 in	Solder

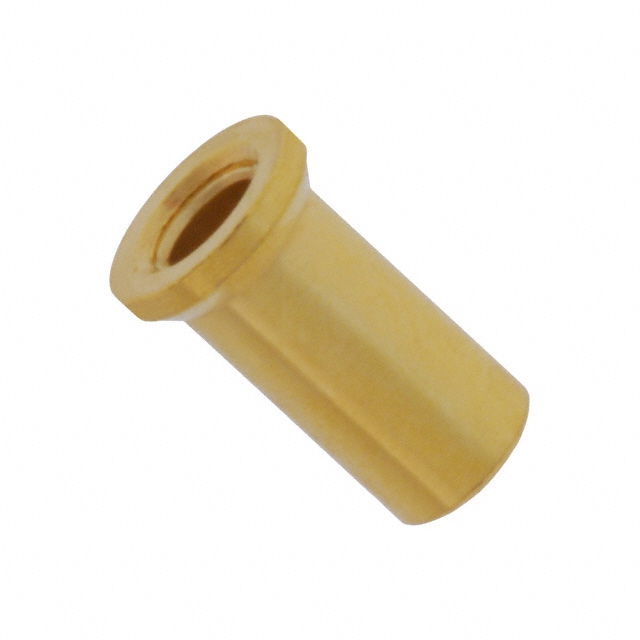

Mill-Max Manufacturing Corp. 0331-0-15-15-18-27-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.043 in	1.09 mm	0.94 mm	0.037 in	Gold	Beryllium Copper	0.09 in	2.29 mm	30 Áin	0.76 Ám	1.37 mm	0.054 in	1.8 mm	0.071 in	No Tail	3.23 mm	0.127 in	Solder
Mill-Max Manufacturing Corp. 0331-0-15-80-18-14-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.043 in	1.09 mm	0.94 mm	0.037 in	Gold	Beryllium Copper	0.09 in	2.29 mm	10 Áin	0.25 Ám	1.37 mm	0.054 in	1.8 mm	0.071 in	No Tail	3.23 mm	0.127 in	Solder
Mill-Max Manufacturing Corp. 0331-0-15-01-18-14-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.043 in	1.09 mm	0.94 mm	0.037 in	Gold	Beryllium Copper	0.09 in	2.29 mm	10 Áin	0.25 Ám	1.37 mm	0.054 in	1.8 mm	0.071 in	No Tail	3.23 mm	0.127 in	Solder

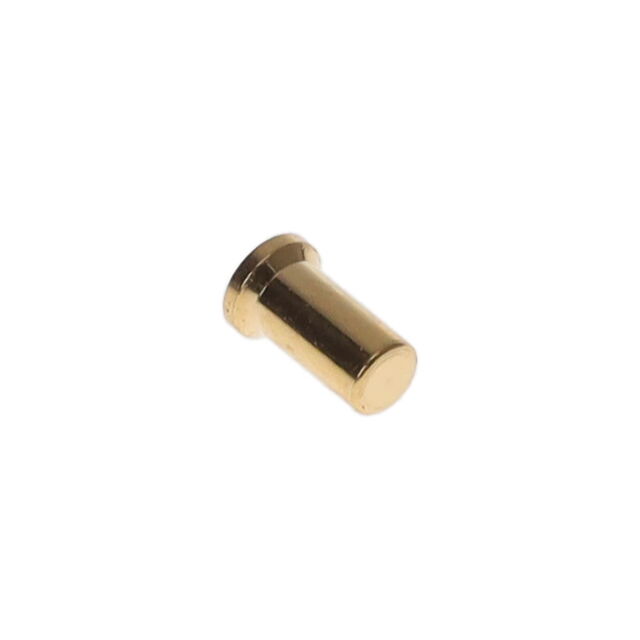

Mill-Max Manufacturing Corp. 0331-0-15-15-18-14-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.043 in	1.09 mm	0.94 mm	0.037 in	Gold	Beryllium Copper	0.09 in	2.29 mm	10 Áin	0.25 Ám	1.37 mm	0.054 in	1.8 mm	0.071 in	No Tail	3.23 mm	0.127 in	Solder

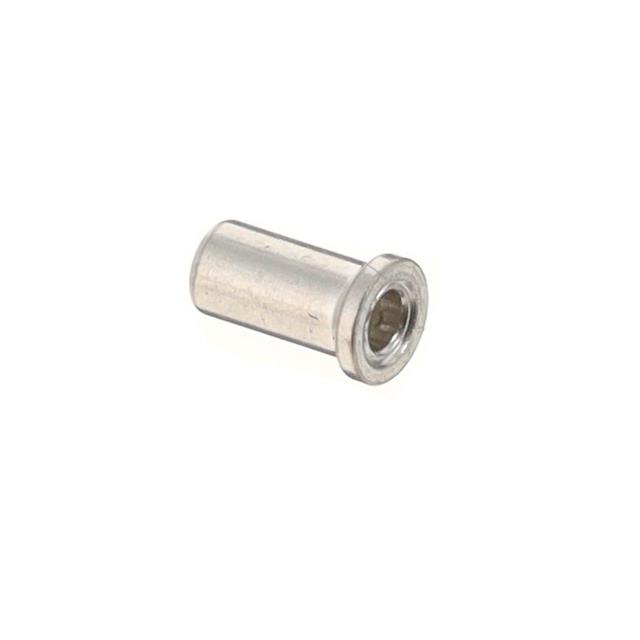

Mill-Max Manufacturing Corp. 0331-0-15-01-18-01-10-0	-55 C	125 °C	3.81 mm	0.15 in	0.043 in	1.09 mm	0.94 mm	0.037 in	Tin-Lead	Beryllium Copper	0.09 in	2.29 mm	200 Áin	5.08 Ám	1.37 mm	0.054 in	1.8 mm	0.071 in	No Tail	3.23 mm	0.127 in	Solder
