CF-LA-2 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH ROCKER DPST 16A 125V
| Part | Electrical Life | Switch Function | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Approval Agency | Features | Circuit | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Current Rating (Amps) | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 20000 Steps | On-Off | 28.2 mm | 12.9 mm | cULus UL | In Rush 160A Max | DPST | 125 V | 85 °C | -25 °C | O - | 16 A | Concave (Curved) | Panel Mount Snap-In | Solder Lug | IP40 | Black |

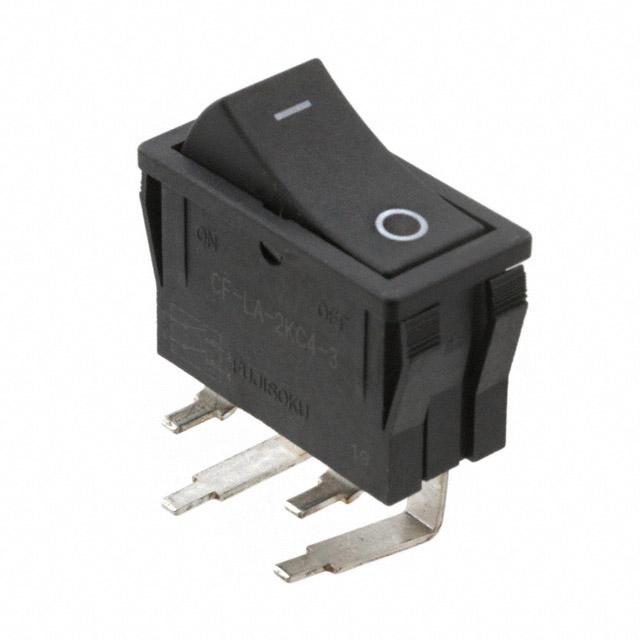

 Nidec Components Corporation | 20000 Steps | On-Off | 28.2 mm | 12.9 mm | cULus UL | In Rush 160A Max | DPST | 125 V | 85 °C | -25 °C | O I | 16 A | Concave (Curved) | Panel Mount Right Angle Snap-In | PC Pin | IP40 | Black |

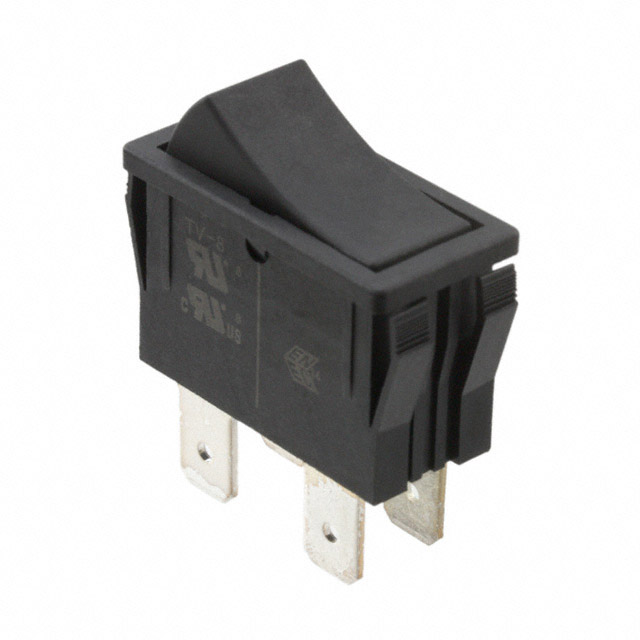

 Nidec Components Corporation | 20000 Steps | On-Off | 28.2 mm | 12.9 mm | cULus UL | In Rush 160A Max | DPST | 125 V | 85 °C | -25 °C | No Marking | 16 A | Concave (Curved) | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | Black |

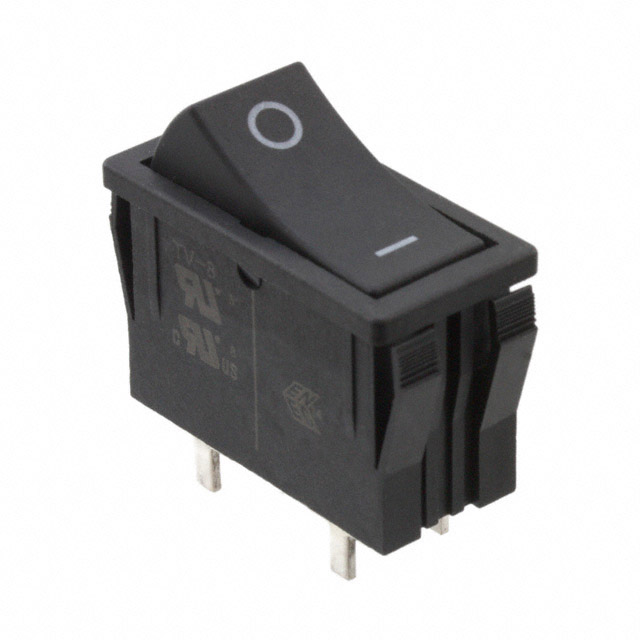

 Nidec Components Corporation | 20000 Steps | On-Off | 28.2 mm | 12.9 mm | cULus UL | In Rush 160A Max | DPST | 125 V | 85 °C | -25 °C | O I | 16 A | Concave (Curved) | Panel Mount Snap-In | PC Pin | IP40 | Black |
Nidec Components Corporation | 20000 Steps | On-Off | 28.2 mm | 12.9 mm | cULus UL | In Rush 160A Max | DPST | 125 V | 85 °C | -25 °C | Dot | 16 A | Concave (Curved) | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | Black |

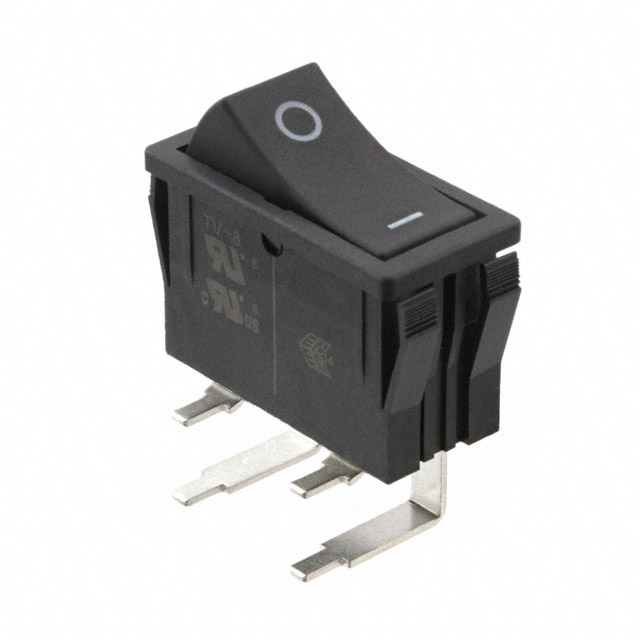

 Nidec Components Corporation | 20000 Steps | On-Off | 28.2 mm | 12.9 mm | cULus UL | In Rush 160A Max | DPST | 125 V | 85 °C | -25 °C | O I | 16 A | Concave (Curved) | Panel Mount Right Angle Snap-In | PC Pin | IP40 | Black |
Nidec Components Corporation | 20000 Steps | On-Off | 28.2 mm | 12.9 mm | cULus UL | In Rush 160A Max | DPST | 125 V | 85 °C | -25 °C | O - | 16 A | Concave (Curved) | Panel Mount Snap-In | PC Pin | IP40 | Black |

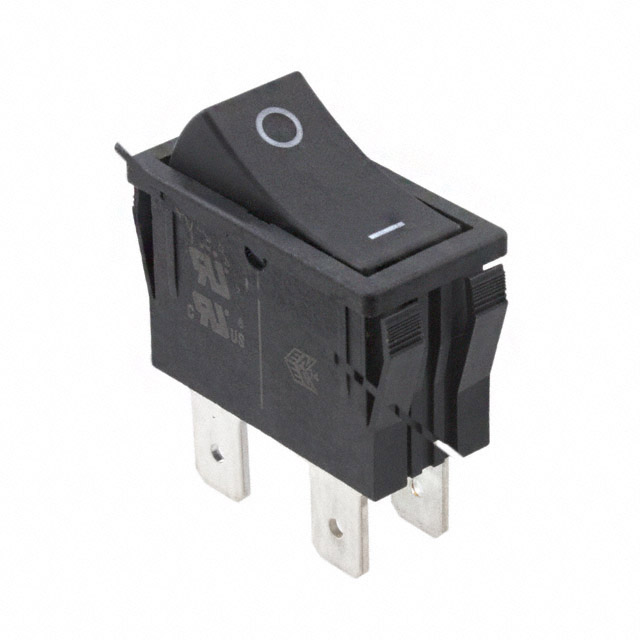

 Nidec Components Corporation | 20000 Steps | On-Off | 28.2 mm | 12.9 mm | cULus UL | In Rush 160A Max | DPST | 125 V | 85 °C | -25 °C | O I | 16 A | Concave (Curved) | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | Black |

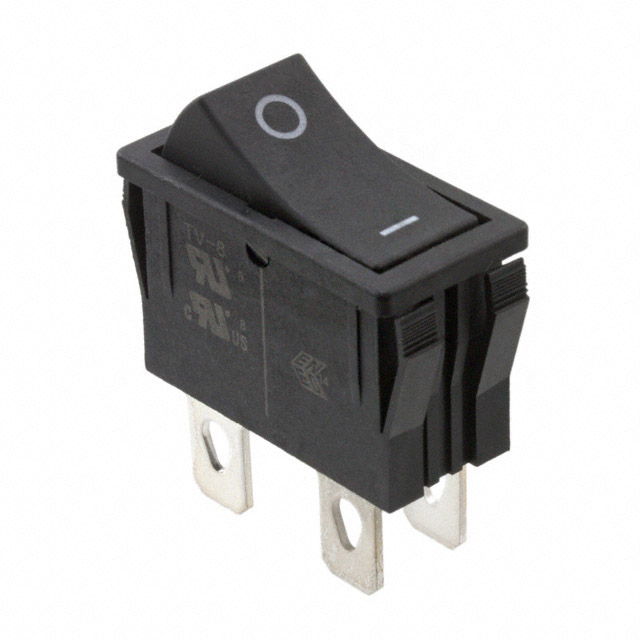

 Nidec Components Corporation | 20000 Steps | On-Off | 28.2 mm | 12.9 mm | cULus UL | In Rush 160A Max | DPST | 125 V | 85 °C | -25 °C | O I | 16 A | Concave (Curved) | Panel Mount Snap-In | Solder Lug | IP40 | Black |
 Nidec Components Corporation | 20000 Steps | On-Off | 28.2 mm | 12.9 mm | cULus UL | In Rush 160A Max | DPST | 125 V | 85 °C | -25 °C | O - | 16 A | Concave (Curved) | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | Black |
