5824 Series

Manufacturer: BRADY

Catalog

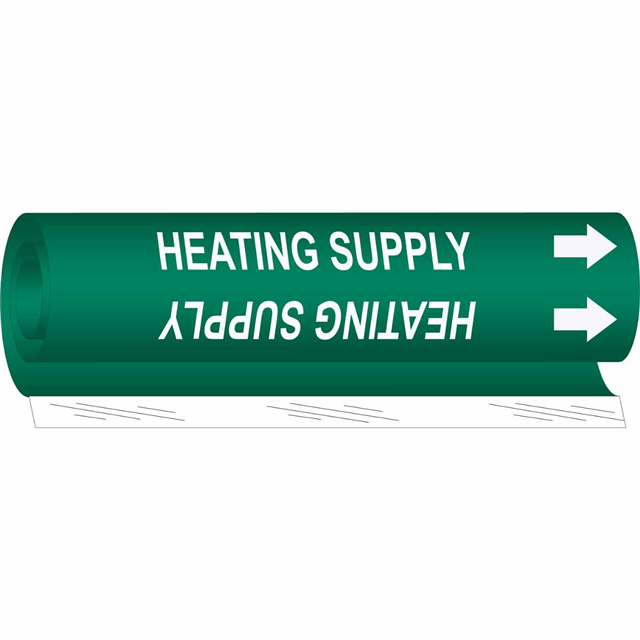

B689 5824-II WHT/GRN STYLE II

Part	Arrangement	Shape	Width	Width	Legend (Text)	Mounting Type	Location	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Application Specifics	Length [x]	Length [x]	Legend (Symbol Only)	Print Type	Outside Pipe Diameter (Min) [Min]	Outside Pipe Diameter (Min) [Min]	Color - Legend	Language	Material - Body	Applications	Color - Background	Features	Width [x]	Width [x]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Length	Length	Outside Pipe Diameter (Min)
BRADY 5824-II	Symbol and Text	Rectangle	304.8 mm	12 in	Heating Supply	Snap On	Outdoor	63.5 mm	2.5 in	Directionality	660.4 mm	26 in	Directional Arrow	Pre-Printed	7.875 in	200.03 mm	White	63000 A 69000 A	Plastic	Pipe	Green	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant
BRADY 5824-O	Text Only	Rectangle			Heating Supply		Outdoor			Notice			No Symbol	Pre-Printed	1.375 in		White	63000 A 69000 A	Plastic	General	Green	Chemical Resistant	127 mm	127 mm	0.5 in	12.7 mm	8 in	203.2 mm	34.93 mm
