PFB0912 Series

Catalog

FAN AXIAL 92X38MM 12VDC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Voltage - Rated	Power (Watts)	Weight	Weight	RPM	Termination	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Bearing Type	Approval Agency	Noise	Width [y]	Static Pressure	Static Pressure	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Features

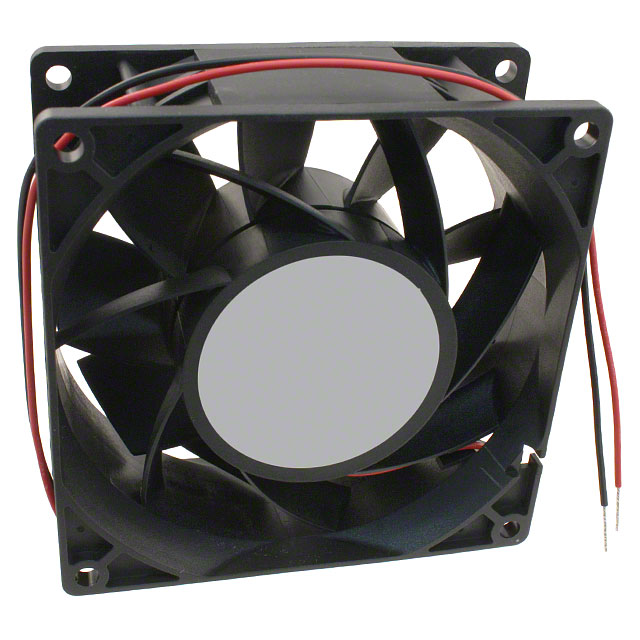

Delta Electronics PFB0912DHE	3.1 A	40 °C 50000 Hrs	Plastic	7 V	13.2 VDC	Plastic	12 VDC	37.2 W	0.553 lb	250.84 g	8000 RPM	2 Wire Leads	92 mm	92 mm	175 CFM	4.9 mł/min	Ball	CE CSA UL VDE	66.5 dB(A)	38 mm	453.1 Pa	1.819 in H2O	Tubeaxial	-10 °C	60 °C
Delta Electronics PFB0912DHE-T500	3.1 A	40 °C 50000 Hrs	Plastic	7 V	13.2 VDC	Plastic	12 VDC	37.2 W	0.553 lb	250.84 g	8000 RPM	2 Wire Leads	92 mm	92 mm	175 CFM	4.9 mł/min	Ball	CE CSA UL VDE	66.5 dB(A)	38 mm	453.1 Pa	1.819 in H2O	Tubeaxial	-10 °C	60 °C	IP55 - Dust Protected Water Resistant

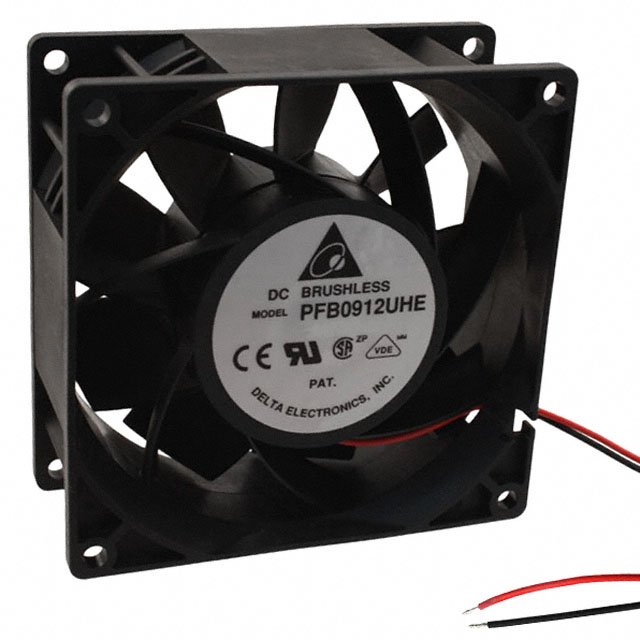

Delta Electronics PFB0912UHE	1.96 A	40 °C 50000 Hrs	Plastic	7 V	13.2 VDC	Plastic	12 VDC	23.5 W	0.553 lb	250.84 g	7000 RPM	2 Wire Leads	92 mm	92 mm	153.5 CFM	4.3 m³/min	Ball	CE CSA UL VDE	64 dB(A)	38 mm	360.9 Pa	1.449 in H2O	Tubeaxial	-10 °C	60 °C

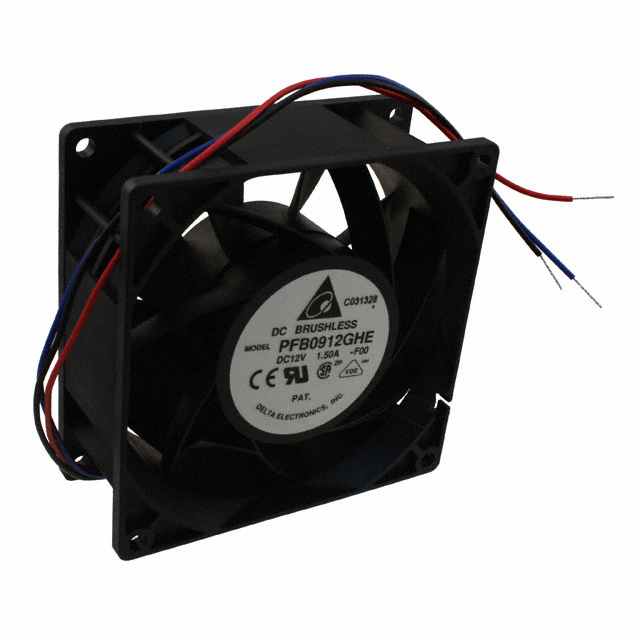

Delta Electronics PFB0912GHE-F00	1.22 A	40 °C 50000 Hrs	Plastic	7 V	13.2 VDC	Plastic	12 VDC	14.64 W	0.553 lb	250.84 g	6000 RPM	3 Wire Leads	92 mm	92 mm	129.3 CFM	3.62 m³/min	Ball	CE CSA UL VDE	60.5 dB(A)	38 mm	252.8 Pa	1.015 in H2O	Tubeaxial	-10 °C	60 °C		Locked Rotor Protection Speed Sensor (Tach)

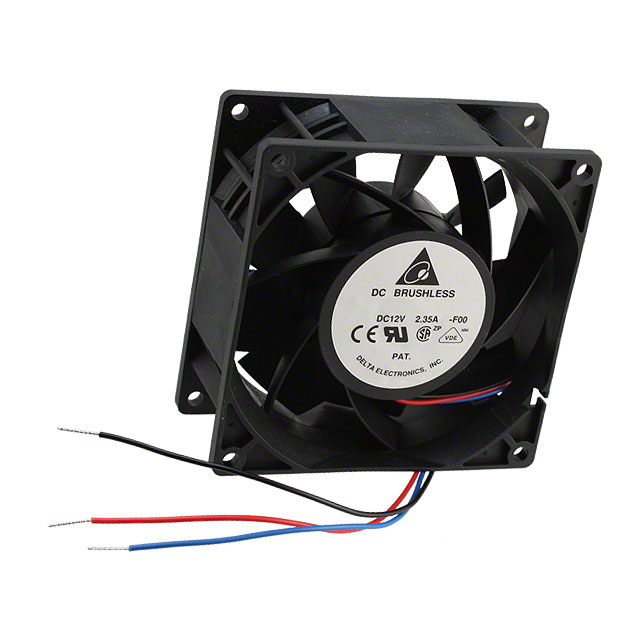

Delta Electronics PFB0912UHE-F00	1.96 A	40 °C 50000 Hrs	Plastic	7 V	13.2 VDC	Plastic	12 VDC	23.5 W	0.553 lb	250.84 g	7000 RPM	3 Wire Leads	92 mm	92 mm	153.5 CFM	4.3 m³/min	Ball	CE CSA UL VDE	64 dB(A)	38 mm	360.9 Pa	1.449 in H2O	Tubeaxial	-10 °C	60 °C		Locked Rotor Protection Speed Sensor (Tach)

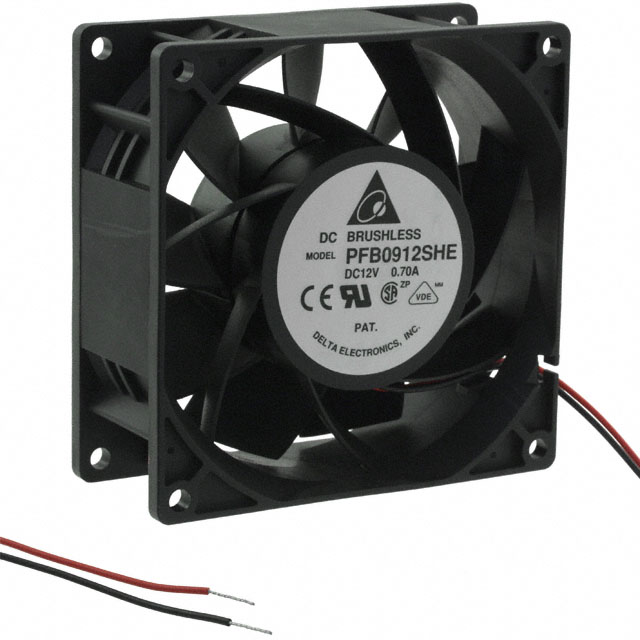

Delta Electronics PFB0912SHE	0.55 A		Plastic	7 V	13.2 VDC	Plastic	12 VDC	6.6 W	0.553 lb	250.84 g	4400 RPM	2 Wire Leads	92 mm	92 mm	94.2 CFM	2.64 mł/min	Ball	CE CSA UL VDE	51.7 dB(A)	38 mm	144 Pa	0.578 in H2O	Tubeaxial	-10 °C	60 °C

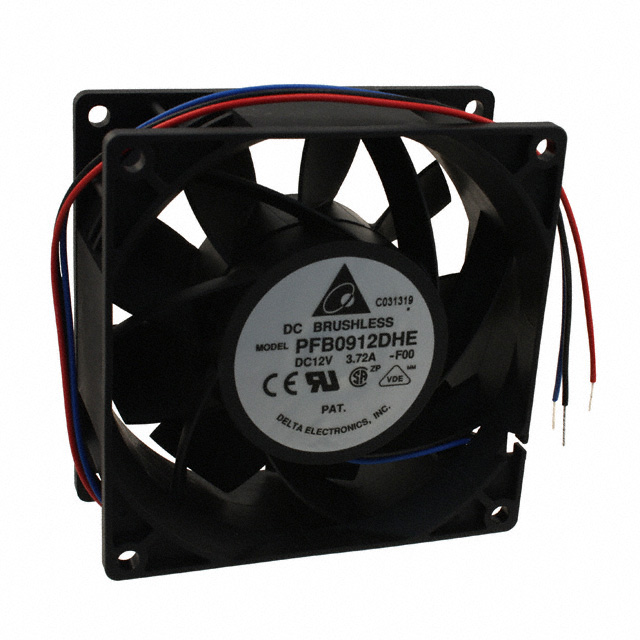

Delta Electronics PFB0912DHE-F00	3.1 A	40 °C 50000 Hrs	Plastic	7 V	13.2 VDC	Plastic	12 VDC	37.2 W	0.553 lb	250.84 g	8000 RPM	3 Wire Leads	92 mm	92 mm	175 CFM	4.9 mł/min	Ball	CE CSA UL VDE	66.5 dB(A)	38 mm	453.1 Pa	1.819 in H2O	Tubeaxial	-10 °C	60 °C		Locked Rotor Protection Speed Sensor (Tach)

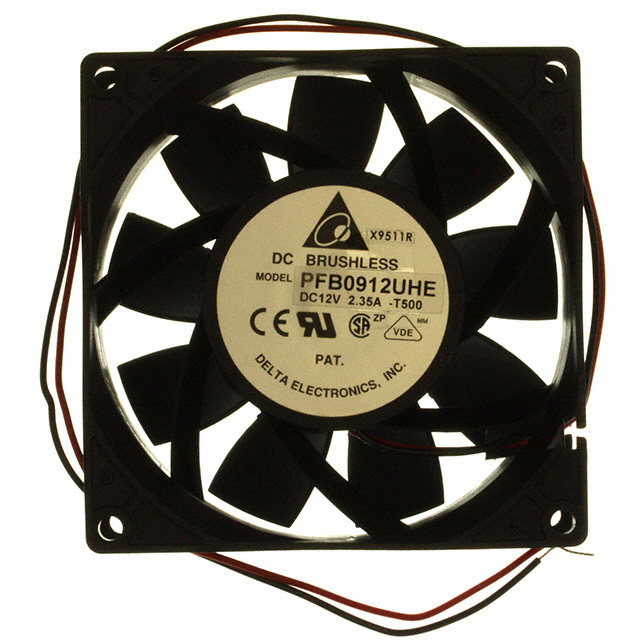

Delta Electronics PFB0912UHE-T500	1.96 A	40 °C 50000 Hrs	Plastic	7 V	13.2 VDC	Plastic	12 VDC	23.5 W	0.553 lb	250.84 g	7000 RPM	2 Wire Leads	92 mm	92 mm	153.5 CFM	4.3 m³/min	Ball	CE CSA UL VDE	64 dB(A)	38 mm	360.9 Pa	1.449 in H2O	Tubeaxial	-10 °C	60 °C	IP54 - Dust Protected Water Resistant
Delta Electronics PFB0912EHE	0.68 A	70000 Hrs	Plastic	7 V	13.2 VDC	Plastic	12 VDC	8.16 W	0.553 lb	250.84 g	4800 RPM	2 Wire Leads	92 mm	92 mm	103.7 CFM	2.9 m³/min	Ball	CE CSA UL VDE	54 dB	38 mm	172.1 Pa	0.691 in H2O	Tubeaxial	-10 °C	60 °C

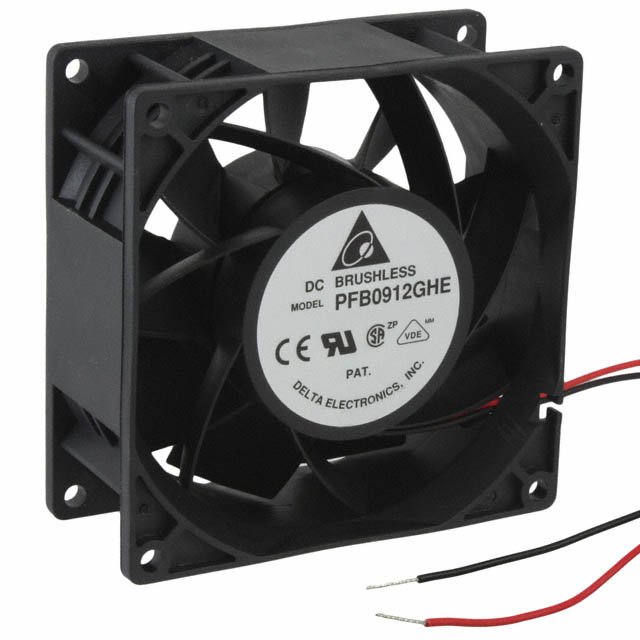

Delta Electronics PFB0912GHE	1.22 A	40 °C 50000 Hrs	Plastic	7 V	13.2 VDC	Plastic	12 VDC	14.64 W	0.553 lb	250.84 g	6000 RPM	2 Wire Leads	92 mm	92 mm	129.3 CFM	3.62 m³/min	Ball	CE CSA UL VDE	60.5 dB(A)	38 mm	252.8 Pa	1.015 in H2O	Tubeaxial	-10 °C	60 °C
