FDC1004-Q1 Series
Automotive, 4-channel 16-bit capacitance-to-digital converter with active shield driver for EMC
Manufacturer: Texas Instruments
Catalog
Automotive, 4-channel 16-bit capacitance-to-digital converter with active shield driver for EMC
| Part | Sensor Type | Supplied Contents | Voltage - Supply | Voltage - Supply | Utilized IC / Part | Embedded | Embedded | Number of Inputs | Package / Case | Resolution | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Proximity Detection | Current - Supply | Interface | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [x] | Package / Case [x] | Qualification | Grade | Sensing Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

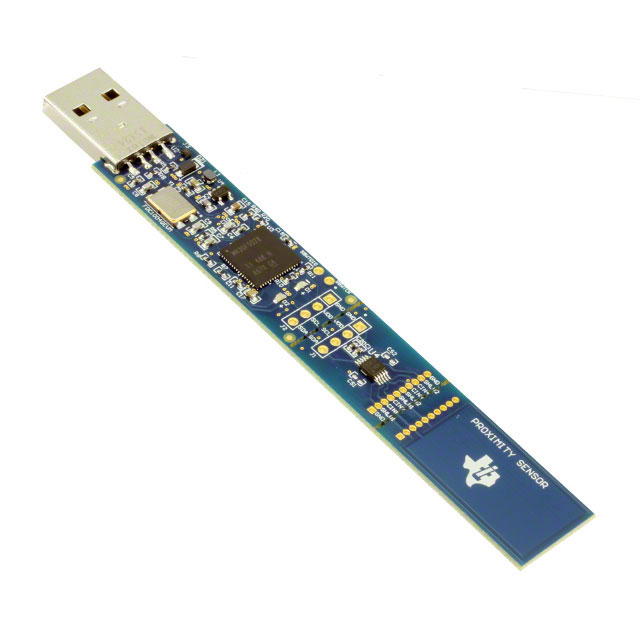

 Texas Instruments | Touch Capacitive | Board(s) | 5 V | USB | FDC1004Q | 16-Bit MCU | ||||||||||||||||||
 Texas Instruments | 4 | 10-WFDFN Exposed Pad | 16 b | 3.6 V | 3 V | Surface Mount | 750 µA | I2C | 10-WSON (3x3) | 125 °C | -40 °C | |||||||||||||
 Texas Instruments | 4 | 10-MSOP 10-TFSOP | 16 b | 3.6 V | 3 V | Surface Mount | 750 µA | I2C | 10-VSSOP | 125 °C | -40 °C | 3 mm | 0.118 in | |||||||||||
 Texas Instruments | 4 | 10-WFDFN Exposed Pad | 16 b | 3.6 V | 3 V | Surface Mount | 750 µA | I2C | 10-WSON (3x3) | 125 °C | -40 °C | |||||||||||||
Texas Instruments | 4 | 10-MSOP 10-TFSOP | 16 b | 3.6 V | 3 V | Surface Mount | 750 µA | I2C | 10-VSSOP | 125 °C | -40 °C | 3 mm | 0.118 in | AEC-Q100 | Automotive | |||||||||
Texas Instruments | 4 | 10-MSOP 10-TFSOP | 16 b | 3.6 V | 3 V | Surface Mount | 750 µA | I2C | 10-VSSOP | 125 °C | -40 °C | 3 mm | 0.118 in | |||||||||||

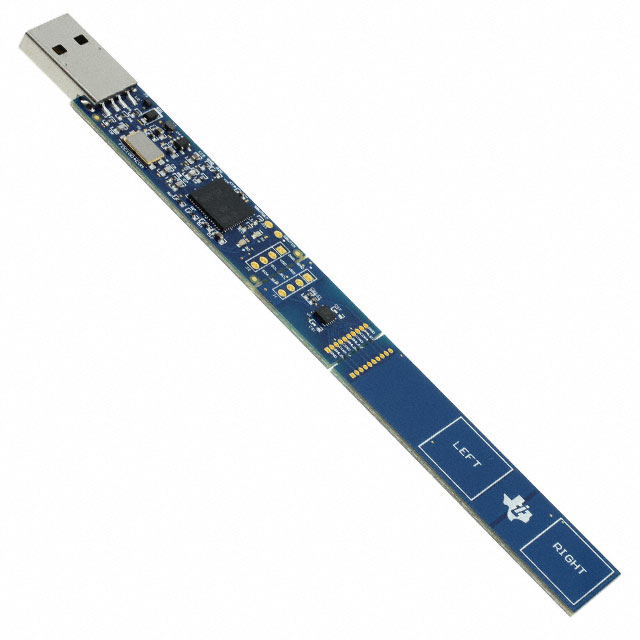

 Texas Instruments | Touch Capacitive | Board(s) | 5 V | USB | FDC1004 | 16-Bit MCU | 2 | |||||||||||||||||
Texas Instruments | 4 | 10-MSOP 10-TFSOP | 16 b | 3.6 V | 3 V | Surface Mount | 750 µA | I2C | 10-VSSOP | 125 °C | -40 °C | 3 mm | 0.118 in | AEC-Q100 | Automotive | |||||||||
Texas Instruments | 4 | 10-WFDFN Exposed Pad | 16 b | 3.6 V | 3 V | Surface Mount | 750 µA | I2C | 10-WSON (3x3) | 125 °C | -40 °C |
Key Features
• Qualified for automotive applicationsAEC-Q100 qualified with the following resultsDevice temperature grade 1: –40°C to 125°C ambient operating temperature rangeDevice HBM ESD classification level 2Device CDM ESD classification level C5Input range: ±15pFMeasurement resolution: 0.5fFMaximum offset capacitance: 100pFProgrammable output rates: 100/200/400 S/sMaximum shield load: 400pFSupply voltage: 3.3VTemperature range: –40° to 125°CCurrent consumption:Active: 750µAStandby: 29µAInterface: I2CNumber of channels: 4Qualified for automotive applicationsAEC-Q100 qualified with the following resultsDevice temperature grade 1: –40°C to 125°C ambient operating temperature rangeDevice HBM ESD classification level 2Device CDM ESD classification level C5Input range: ±15pFMeasurement resolution: 0.5fFMaximum offset capacitance: 100pFProgrammable output rates: 100/200/400 S/sMaximum shield load: 400pFSupply voltage: 3.3VTemperature range: –40° to 125°CCurrent consumption:Active: 750µAStandby: 29µAInterface: I2CNumber of channels: 4
Description
AI
Capacitive sensing with grounded capacitor sensors is a very low-power, low-cost, high-resolution contact-less sensing technique that can be applied to a variety of applications ranging from proximity sensing and gesture recognition to material analysis and remote liquid level sensing. The sensor in a capacitive sensing system is any metal or conductor, allowing for low cost and highly flexible system design.
The FDC1004-Q1 is a high-resolution, AEC-Q100 qualified, 4-channel capacitance-to-digital converter for implementing capacitive sensing solutions. Each channel has a full scale range of ±15pF and can handle a sensor offset capacitance of up to 100pF, which can be either programmed internally or can be an external capacitor for tracking environmental changes over time and temperature. The large offset capacitance capability allows for the use of remote sensors.
The FDC1004-Q1 also includes shield drivers for sensor shields, which can reduce EMI interference and help focus the sensing direction of a capacitive sensor. The small footprint of the FDC1004-Q1 allows for use in space-constrained applications. The FDC1004-Q1 is available in a 10-pin VSSOP package, which allows for optical inspection in production, and features an I2C interface for interfacing to an MCU.
Capacitive sensing with grounded capacitor sensors is a very low-power, low-cost, high-resolution contact-less sensing technique that can be applied to a variety of applications ranging from proximity sensing and gesture recognition to material analysis and remote liquid level sensing. The sensor in a capacitive sensing system is any metal or conductor, allowing for low cost and highly flexible system design.
The FDC1004-Q1 is a high-resolution, AEC-Q100 qualified, 4-channel capacitance-to-digital converter for implementing capacitive sensing solutions. Each channel has a full scale range of ±15pF and can handle a sensor offset capacitance of up to 100pF, which can be either programmed internally or can be an external capacitor for tracking environmental changes over time and temperature. The large offset capacitance capability allows for the use of remote sensors.
The FDC1004-Q1 also includes shield drivers for sensor shields, which can reduce EMI interference and help focus the sensing direction of a capacitive sensor. The small footprint of the FDC1004-Q1 allows for use in space-constrained applications. The FDC1004-Q1 is available in a 10-pin VSSOP package, which allows for optical inspection in production, and features an I2C interface for interfacing to an MCU.
