337-050 Series
Manufacturer: EDAC Inc.
Beta
⌘K

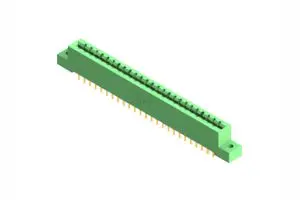

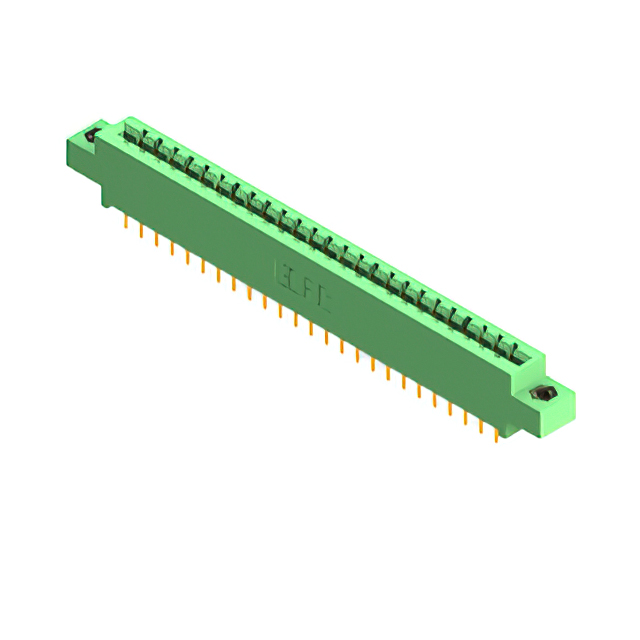

CONN EDGE DUAL FMALE 50POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Read Out | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Features | Color | Gender | Contact Material | Number of Positions | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Card Type | Pitch | Pitch | Termination | Flange Feature | Number of Positions/Bay/Row | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 2 | Card Extender | Green | Female | Copper Alloy | 50 | Cantilever | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Solder | M3 Threaded Insert Top Mount Opening | 25 | Gold | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 2 | Card Extender | Green | Female | Copper Alloy | 50 | Cantilever | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Solder Eyelet(s) | 25 | Gold | 0.156 " | 3.96 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 2 | Green | Female | Copper Alloy | 50 | Cantilever | 0.25 Ám | 10 Áin | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | 25 | Gold | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 2 | Green | Female | Copper Alloy | 50 | Cantilever | 0.25 Ám | 10 Áin | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Solder | 4-40 Threaded Insert Top Mount Opening | 25 | Gold | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 2 | Green | Female | Copper Alloy | 50 | Cantilever | 0.25 Ám | 10 Áin | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Wire Wrap | Flush Mount Top Opening Unthreaded | 25 | Gold | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 2 | Green | Female | Copper Alloy | 50 | Cantilever | 0.25 Ám | 10 Áin | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | 25 | Gold | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 2 | Green | Female | Copper Alloy | 50 | Cantilever | 0.25 Ám | 10 Áin | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Wire Wrap | Side Mount Opening Unthreaded | 25 | Gold | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 2 | Green | Female | Copper Alloy | 50 | Cantilever | 0.25 Ám | 10 Áin | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | 25 | Gold | |||

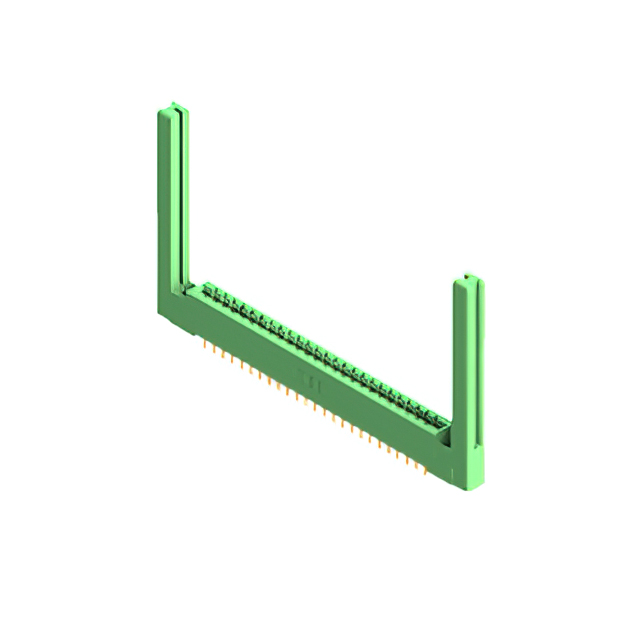

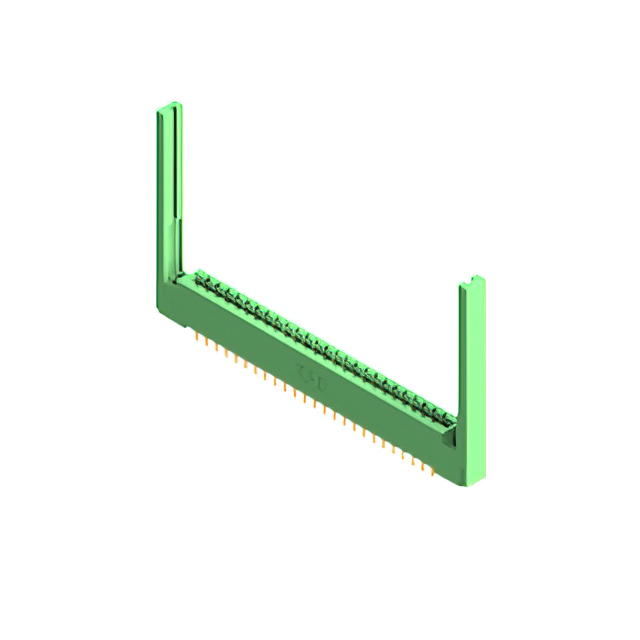

 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 2 | Card Guides | Green | Female | Copper Alloy | 50 | Cantilever | 0.25 Ám | 10 Áin | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | 25 | Gold | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | 2 | Card Extender | Green | Female | Copper Alloy | 50 | Cantilever | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Solder | 25 | Gold |
