ECS-F1 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP TANT 0.47UF 20% 35V RADIAL

Part	Package / Case	Tolerance	Capacitance	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Features	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Manufacturer Size Code	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

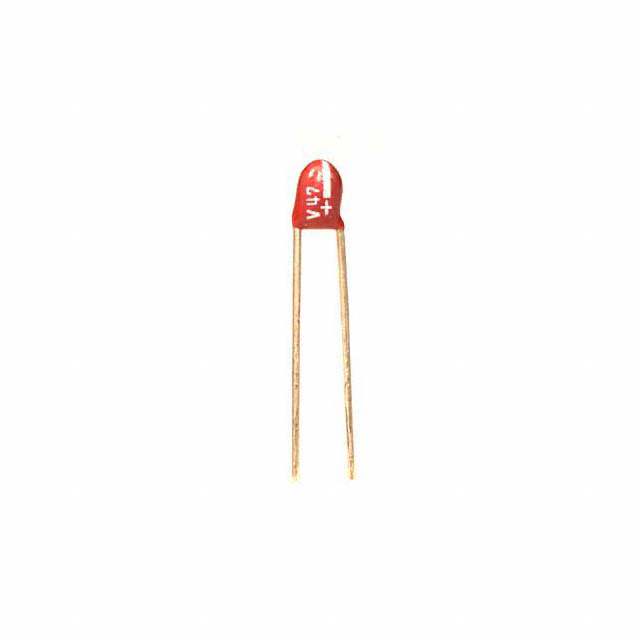

Panasonic Industrial Automation Sales ECS-F1VE474	Radial	20 %	0.47 µF	Conformal Coated	0.217 in	5.5 mm	35 V	General Purpose	0.098 in	2.5 mm	105 ░C	-55 °C	Through Hole	B

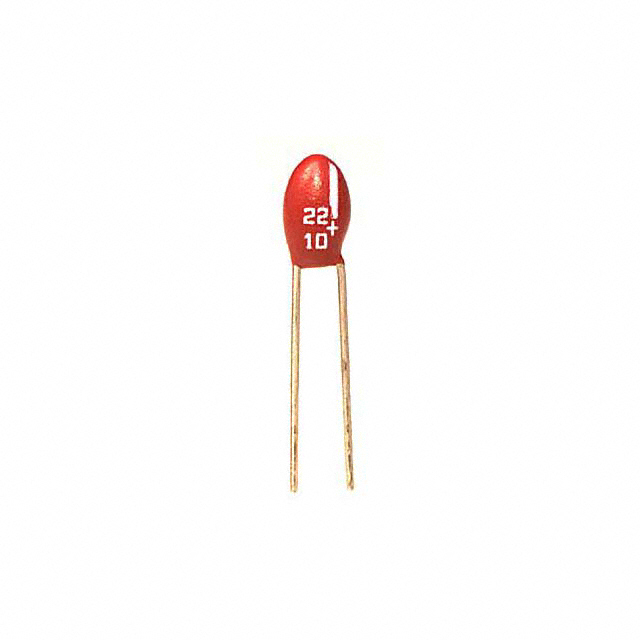

Panasonic Industrial Automation Sales ECS-F1AE226K	Radial	20 %	22 µF	Conformal Coated			10 V	General Purpose	0.098 in	2.5 mm	105 ░C	-55 °C	Through Hole	G	4.7 mm	0.185 in	8 mm	0.315 in

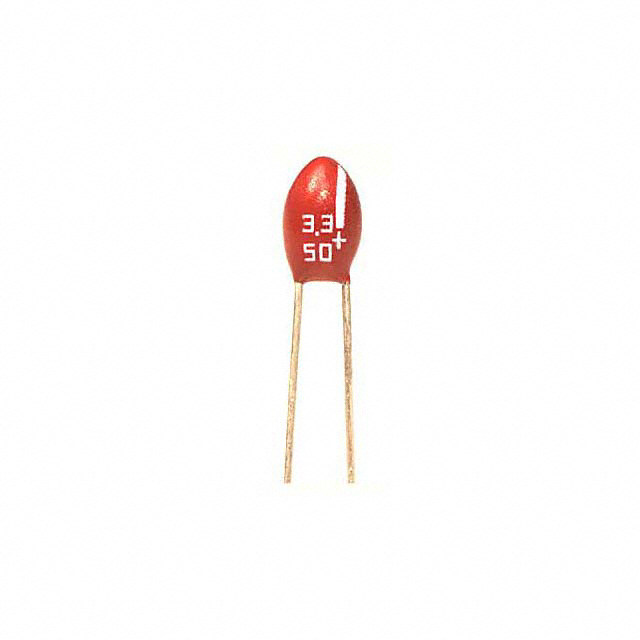

Panasonic Industrial Automation Sales ECS-F1HE335K	Radial	20 %	3.3 µF	Conformal Coated			50 VDC	General Purpose	0.098 in	2.5 mm	105 ░C	-55 °C	Through Hole	H	5.2 mm	0.205 in	8.5 mm	0.335 in
Panasonic Industrial Automation Sales ECS-F1HE155K	Radial	20 %	1.5 µF	Conformal Coated	0.276 "	7 mm	50 VDC	General Purpose	0.098 in	2.5 mm	105 ░C	-55 °C	Through Hole	F	4.5 mm	0.177 "

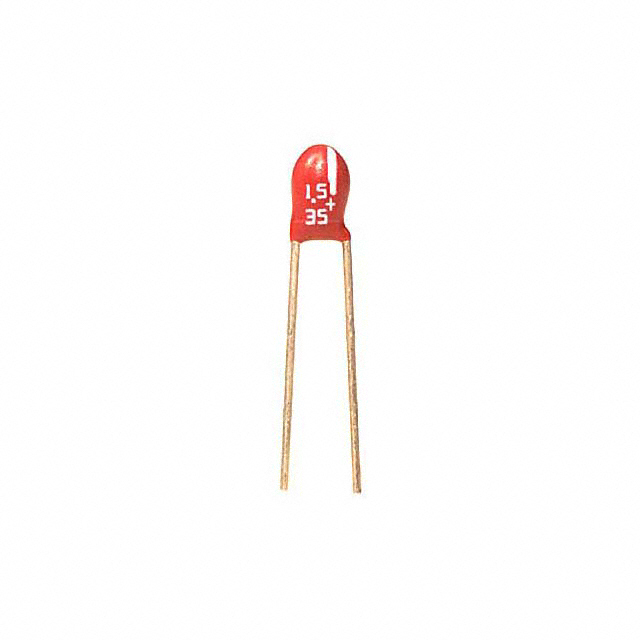

Panasonic Industrial Automation Sales ECS-F1VE155K	Radial	20 %	1.5 µF	Conformal Coated	0.217 in	5.5 mm	35 V	General Purpose	0.098 in	2.5 mm	105 ░C	-55 °C	Through Hole

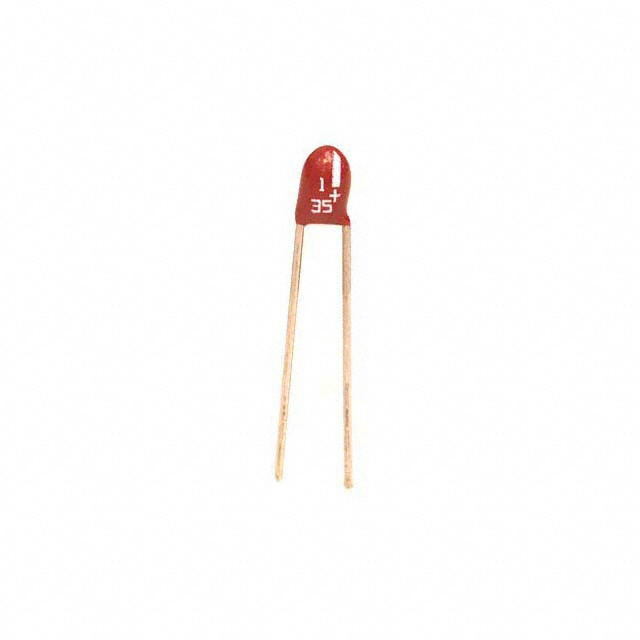

Panasonic Industrial Automation Sales ECS-F1VE105K	Radial	20 %	1 µF	Conformal Coated	0.217 in	5.5 mm	35 V	General Purpose	0.098 in	2.5 mm	105 ░C	-55 °C	Through Hole

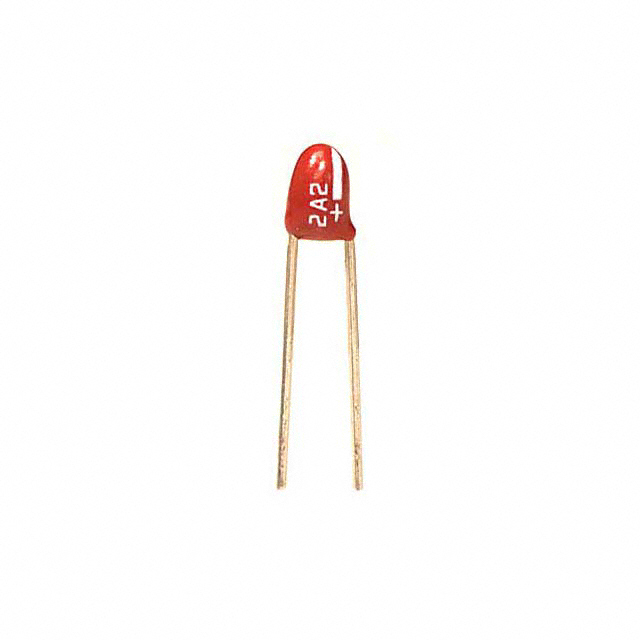

Panasonic Industrial Automation Sales ECS-F1AE225K	Radial	20 %	2.2 µF	Conformal Coated	0.217 in	5.5 mm	10 V	General Purpose	0.098 in	2.5 mm	105 ░C	-55 °C	Through Hole	B	3.3 mm	0.13 in

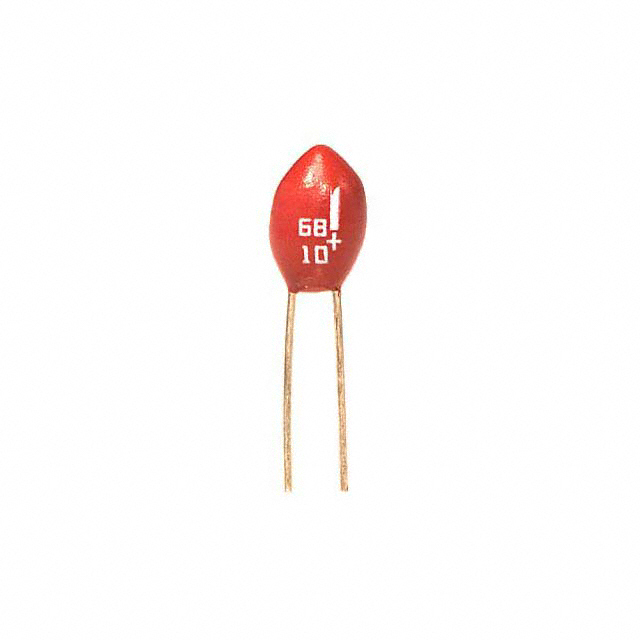

Panasonic Industrial Automation Sales ECS-F1AE686	Radial	20 %	68 µF	Conformal Coated			10 V	General Purpose	0.098 in	2.5 mm	105 ░C	-55 °C	Through Hole	J	6 mm	0.236 in	11 mm	0.433 in

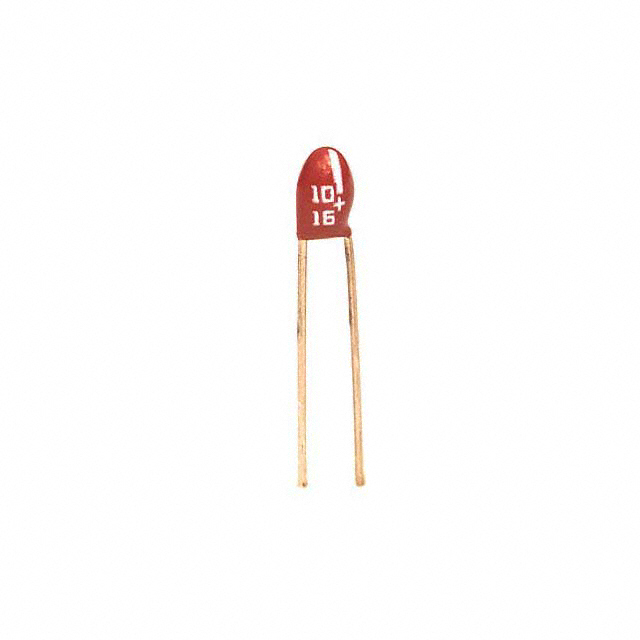

Panasonic Industrial Automation Sales ECS-F1CE106K	Radial	20 %	10 µF	Conformal Coated	0.276 "	7 mm	16 V	General Purpose	0.098 in	2.5 mm	105 ░C	-55 °C	Through Hole	F	4.5 mm	0.177 "

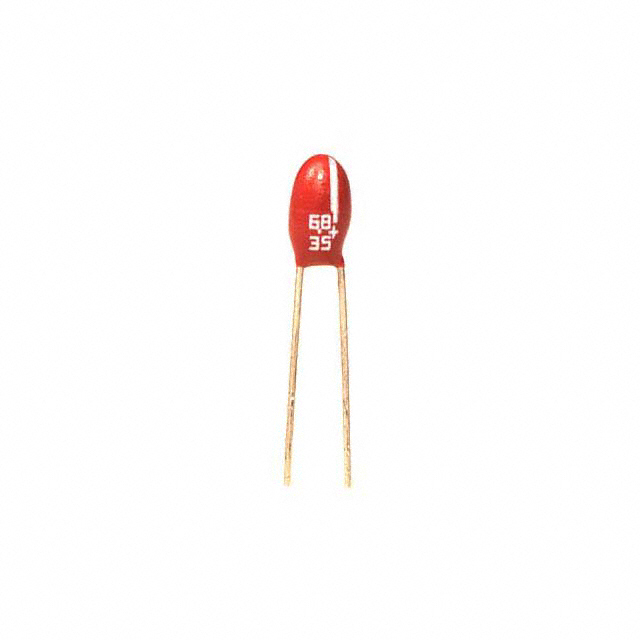

Panasonic Industrial Automation Sales ECS-F1VE685K	Radial	20 %	6.8 ÁF	Conformal Coated			35 V	General Purpose	0.098 in	2.5 mm	105 ░C	-55 °C	Through Hole	H	5.2 mm	0.205 in	8.5 mm	0.335 in
