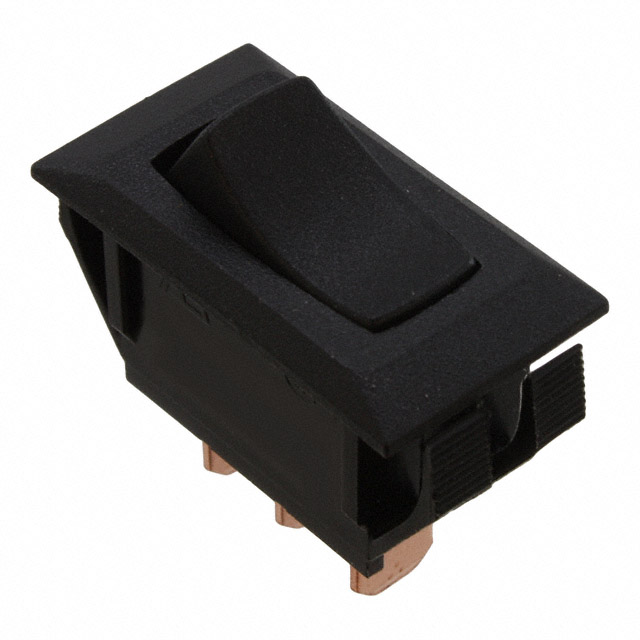

GRSH-2012 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH ROCKER SPDT 16A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Color - Actuator/Cap | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Type | Switch Function | Termination Style | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 100000 Cycles | 25000 Steps | 125 V | Black | 16 A | Panel Mount Snap-In | -20 ░C | 105 ░C | SPDT | 13.97 mm | 28.58 mm | Concave (Curved) | On-On | Quick Connect - 0.250" (6.3mm) | No Marking |
