CKG Series

Catalog

SPECIALTY CERAMIC CAPACITORS 2220 630V 0.068UF 5% C0G SGL STK AEC-Q20

Part	Temperature Coefficient	Thickness (Max) [Max]	Thickness (Max) [Max]	Features	Lead Style	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Rated	Mounting Type	Ratings	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Capacitance	Package / Case	Thickness (Max)	Thickness (Max) [Max] [z]

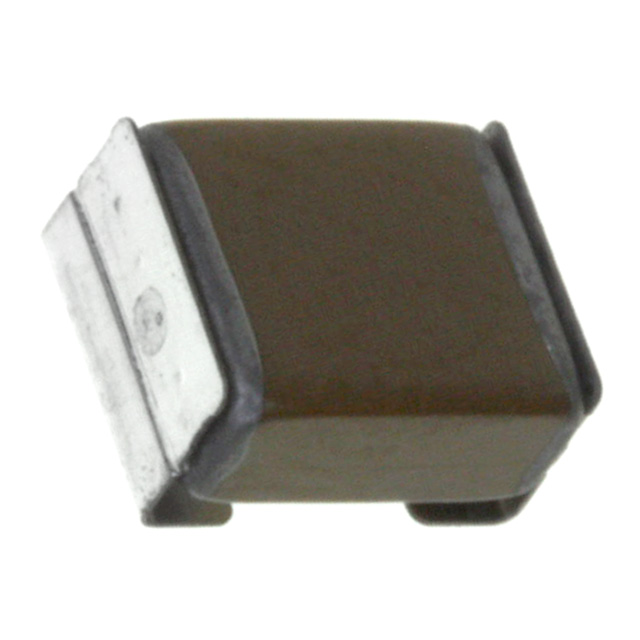

TDK Corporation CKG57KC0G2J683J335JJ	C0G NP0	3.5 mm	0.138 in	Low ESL	J-Lead	5 mm	0.197 "	0.236 in	6 mm	630 V	MLCC Surface Mount	AEC-Q200	Automotive Boardflex Sensitive SMPS Filtering	-55 C	125 °C	5 %	0.068 µF	J-Lead SMD

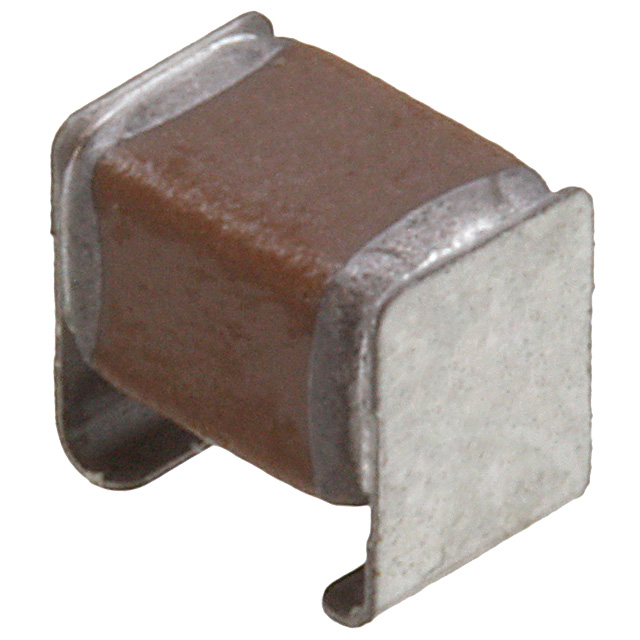

TDK Corporation CKG32KX7S1H106M335AH	X7S		0.136 in	Low ESL	J-Lead	2.6 mm	0.102 in	0.142 in	3.6 mm	50 VDC	MLCC Surface Mount		Bypass Decoupling SMPS Filtering	-55 C	125 °C	20 %	10 µF	J-Lead SMD	3.45 mm
TDK Corporation CKG32KC0G2J333J335AH	C0G NP0		0.136 in	Low ESL	J-Lead	2.6 mm	0.102 in	0.142 in	3.6 mm	630 V	MLCC Surface Mount		Bypass Decoupling SMPS Filtering	-55 C	125 °C	5 %	0.033 çF	J-Lead SMD	3.45 mm

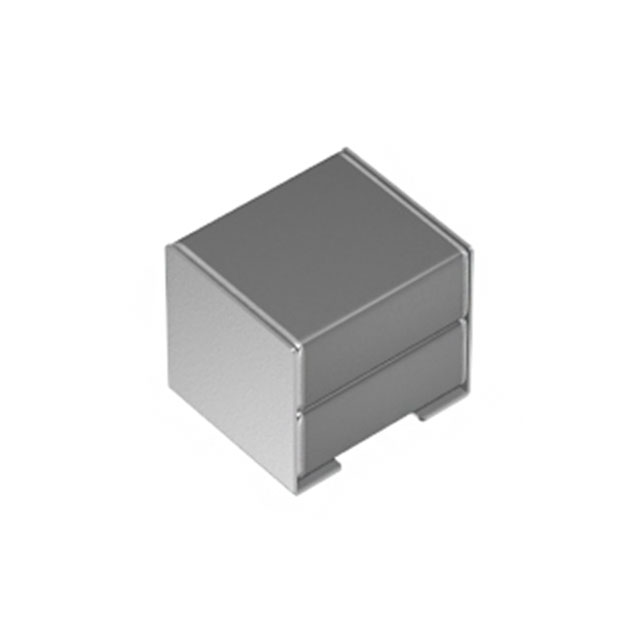

TDK Corporation CKG57NX7S1C107M500JJ	X7S			Low ESL (Stacked)	J-Lead	5 mm	0.197 "	0.236 in	6 mm	16 V	MLCC Surface Mount	AEC-Q200	Automotive Bypass Decoupling SMPS Filtering	-55 C	125 °C	20 %	100 µF	Stacked SMD 2 J-Lead	5.5 mm	0.217 in
TDK Corporation CKG57KX7T2E225M335JJ	X7T	3.5 mm	0.138 in	Low ESL	J-Lead	5 mm	0.197 "	0.236 in	6 mm	250 V	MLCC Surface Mount	AEC-Q200	Automotive Bypass Decoupling SMPS Filtering	-55 C	125 °C	20 %	2.2 µF	J-Lead SMD
TDK Corporation CKG45KC0G2W473J290JJ	C0G NP0	3 mm	0.118 in	Low ESL	J-Lead	3.5 mm	0.138 in	0.197 in	5 mm	450 V	MLCC Surface Mount	AEC-Q200	Automotive Boardflex Sensitive SMPS Filtering	-55 C	125 °C	5 %		J-Lead SMD
TDK Corporation CKG57KX7T2J334M335JH	X7T	3.5 mm	0.138 in	Low ESL	J-Lead	5 mm	0.197 "	0.236 in	6 mm	630 V	MLCC Surface Mount		Bypass Decoupling SMPS Filtering	-55 C	125 °C	20 %	0.33 µF	J-Lead SMD
TDK Corporation CKG32KX7S1H106M335AJ	X7S		0.136 in	Low ESL	J-Lead	2.6 mm	0.102 in	0.142 in	3.6 mm	50 VDC	MLCC Surface Mount	AEC-Q200	Automotive Bypass Decoupling SMPS Filtering	-55 C	125 °C	20 %	10 µF	J-Lead SMD	3.45 mm
TDK Corporation CKG57KX7S2A106M335JJ	X7S	3.5 mm	0.138 in	Low ESL	J-Lead	5 mm	0.197 "	0.236 in	6 mm	100 V	MLCC Surface Mount	AEC-Q200	Automotive Bypass Decoupling SMPS Filtering	-55 C	125 °C	20 %	10 µF	J-Lead SMD
TDK Corporation CKG57NX5R1H226M500JH	X5R			Low ESL (Stacked)	J-Lead	5 mm	0.197 "	0.236 in	6 mm	50 VDC	MLCC Surface Mount		Bypass Decoupling SMPS Filtering	-55 C	85 °C	20 %	22 µF	Stacked SMD 2 J-Lead	5.5 mm	0.217 in
