68463 Series

Catalog

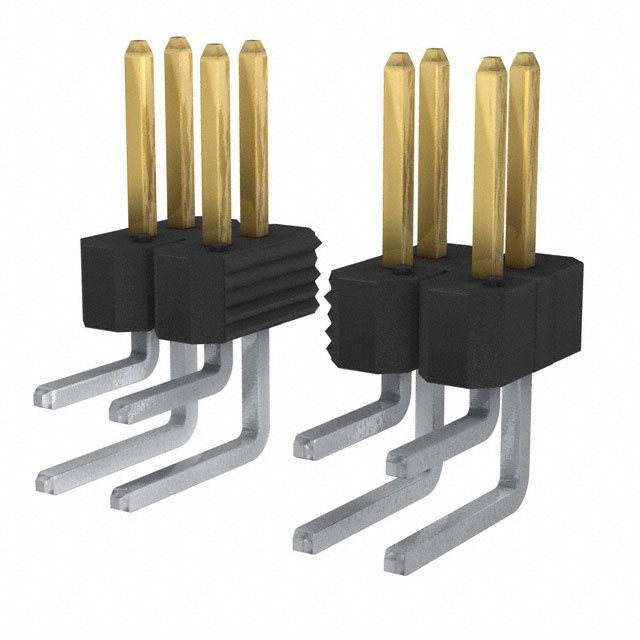

CONN HEADER R/A 72POS 2.54MM

Part	Number of Positions	Fastening Type	Connector Type	Insulation Height	Insulation Height	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating	Shrouding	Contact Type	Contact Length - Post [x]	Contact Length - Post	Contact Material	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Mounting Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Color	Contact Finish - Mating
Amphenol ICC (FCI) 68463-472	72	Push-Pull	Header	4.83 mm	0.19 in	Square	0.23 in	5.84 mm	Unshrouded	Male Pin	0.11 in	2.79 mm	Phosphor Bronze	2	2.54 mm	0.1 in	All	Through Hole Right Angle	UL94 V-0	0.1 in	2.54 mm	2.54 çm	100 çin	Solder	Black

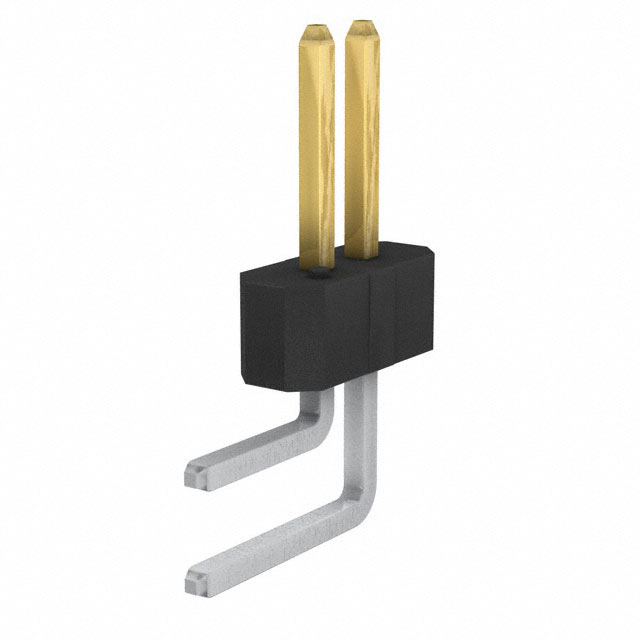

Amphenol ICC (FCI) 68463-602H	2	Push-Pull	Header	4.83 mm	0.19 in	Square	0.23 in	5.84 mm	Unshrouded	Male Pin	0.11 in	2.79 mm	Phosphor Bronze	2	2.54 mm	0.1 in	All	Through Hole Right Angle	UL94 V-0			0.76 Ám	30 Áin	Solder	Black	Gold or Gold GXT™
Amphenol ICC (FCI) 68463-172HLF	72	Push-Pull	Header	4.83 mm	0.19 in	Square	0.23 in	5.84 mm	Unshrouded	Male Pin	0.11 in	2.79 mm	Phosphor Bronze	2	2.54 mm	0.1 in	All	Through Hole Right Angle	UL94 V-0	0.1 in	2.54 mm	0.76 Ám	30 Áin	Solder	Black	Gold or Gold GXT™
