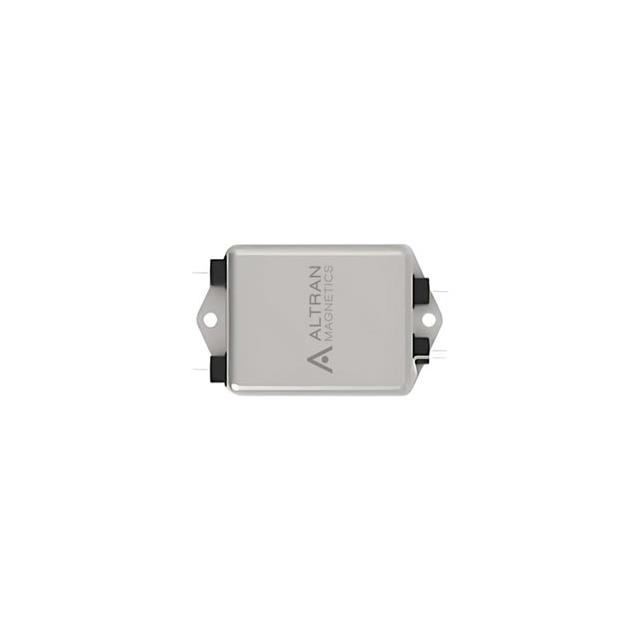

AMI-M11S Series
Manufacturer: Altran Magnetics, LLC
Beta
⌘K
LINE FILTER 250VAC 3A CHASSIS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current | Frequency - Operating [Max] | Frequency - Operating [Min] | Applications | Inductance | Configuration | Voltage - Rated AC | Filter Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altran Magnetics, LLC | 40 °C | -10 °C | Chassis Mount | 3 A | 60 Hz | 50 Hz | General Purpose | 36.8 mH | Single Stage | 250 V | Single Phase | IEC 320-C14 Quick Connect |
 Altran Magnetics, LLC | 40 °C | -10 °C | Chassis Mount | 3 A | 60 Hz | 50 Hz | General Purpose | 36.8 mH | Single Stage | 250 V | Single Phase | Quick Connect |
Altran Magnetics, LLC | 40 °C | -10 °C | Chassis Mount | 3 A | 60 Hz | 50 Hz | General Purpose | 36.8 mH | Single Stage | 250 V | Single Phase | Wire Leads |
Altran Magnetics, LLC | 40 °C | -10 °C | Chassis Mount | 6 A | 60 Hz | 50 Hz | General Purpose | 18.5 mH | Single Stage | 250 V | Single Phase | Wire Leads |
Altran Magnetics, LLC | 40 °C | -10 °C | Chassis Mount | 6 A | 60 Hz | 50 Hz | General Purpose | 18.5 mH | Single Stage | 250 V | Single Phase | Quick Connect |
