96578 Series

Manufacturer: Pflitsch

Catalog

CABLE FEEDTHROUGH 57.91-65.02MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Thread Size	Thread Length	Thread Length	Ingress Protection	Material	Panel Hole Size	Panel Hole Size	Color	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]
Pflitsch 96578.7	500 °C	-60 °C	Cable Feedthrough	M75x1.5	14.99 mm	0.59 in	IP68 - Dust Tight Waterproof	Stainless Steel	74.9 mm	2.95 in	Silver	Sealing Ring	2.28 in	57.91 mm	65.02 mm	2.56 in

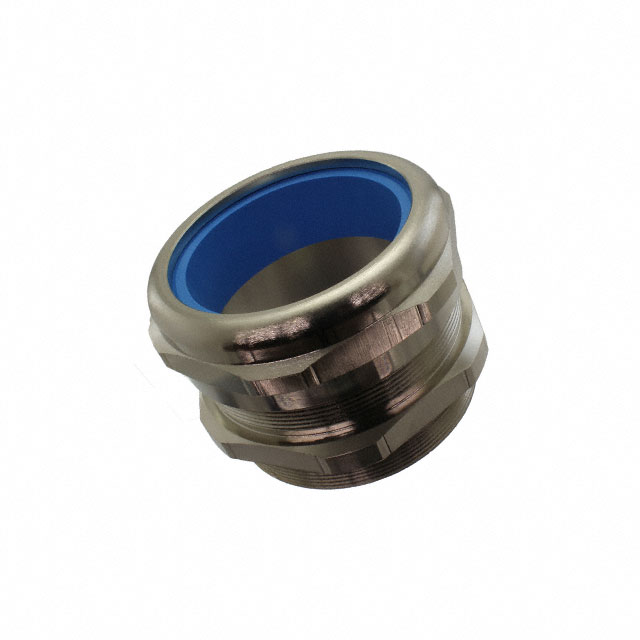

Pflitsch 96578.6	300 °C	-40 C	Cable Feedthrough	M75x1.5	14.99 mm	0.59 in	IP68 - Dust Tight Waterproof NEMA 4X	Brass Nickel Plated	74.9 mm	2.95 in	Silver	Sealing Ring	2.28 in	57.91 mm	65.02 mm	2.56 in
