W22L0C-P Series

Manufacturer: ODU

Catalog

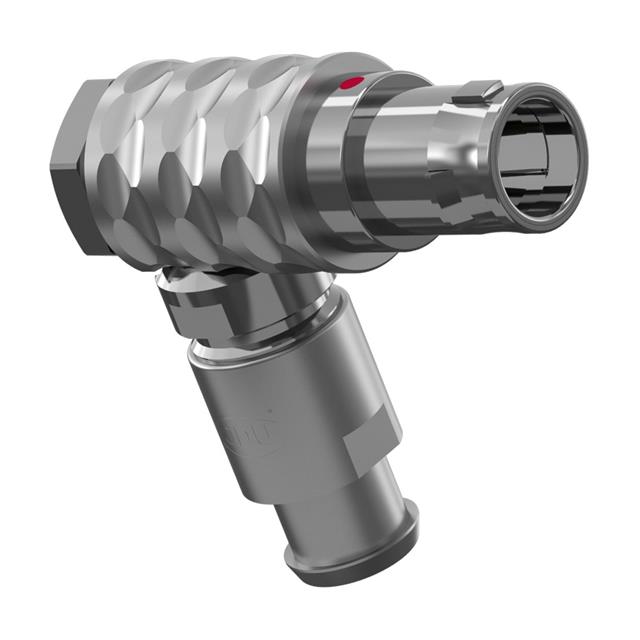

ODU MINI-SNAP RT. ANGLE PLUG, ST

Part	Features	Contact Finish - Mating	Color	Connector Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert [custom]	Primary Material	Contact Material	Ingress Protection	Current Rating (Amps)	Shell Finish	Number of Positions	Mounting Type	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Applications	Shielding	Insert Material	Fastening Type	Shell Material	Backshell Material, Plating	Cable Opening	Termination	Cable Opening [Max]
ODU W22L0C-P02MTS0-720S	Backshell Strain Relief	Gold	Silver	Plug Male Pins	600 V	120 °C	-40 C	2	Metal	Brass	IP50 - Dust Protected	24 A	Chrome over Nickel	2	Free Hanging (In-Line) Right Angle	0.283 "	6 mm	0.236 in	7.2 mm	Industrial Medical Military Testing Equipment & Measurement	Unshielded	Polyetheretherketone (PEEK)	Push-Pull	Brass	Brass Chrome over Nickel
ODU W22L0C-P10PJG0-520S	Backshell Strain Relief	Gold	Silver	Plug Male Pins	500 V	120 °C	-40 C	2	Metal	Brass	IP50 - Dust Protected	7.5 A	Chrome over Nickel	10	Free Hanging (In-Line) Right Angle	0.205 in		0.157 in		Industrial Medical Military Testing Equipment & Measurement	Unshielded	Polyetheretherketone (PEEK)	Push-Pull	Brass	Brass Chrome over Nickel	4 mm 5.2 mm	Crimp
ODU W22L0C-P05MPN0-520S	Backshell Strain Relief	Gold	Silver	Plug Male Pins	500 V	120 °C	-40 C	2	Metal	Brass	IP50 - Dust Protected	15 A	Chrome over Nickel	5	Free Hanging (In-Line) Right Angle	0.205 in		0.157 in		Industrial Medical Military Testing Equipment & Measurement	Unshielded	Polyetheretherketone (PEEK)	Push-Pull	Brass	Brass Chrome over Nickel	4 mm 5.2 mm
ODU W22L0C-P06MPH0-320S	Backshell Strain Relief	Gold	Silver	Plug Male Pins	500 V	120 °C	-40 C	2	Metal	Brass	IP50 - Dust Protected	12 Amps	Chrome over Nickel	6	Free Hanging (In-Line) Right Angle	0.126 in 3.2 mm		0.079 in 2 mm		Industrial Medical Military Testing Equipment & Measurement	Unshielded	Polyetheretherketone (PEEK)	Push-Pull	Brass	Brass Chrome over Nickel
ODU W22L0C-P08MJG0-620S	Backshell Strain Relief	Gold	Silver	Plug Male Pins	500 V	120 °C	-40 C	2	Metal	Brass	IP50 - Dust Protected	7.5 A	Chrome over Nickel	8	Free Hanging (In-Line) Right Angle	0.244 "	5 mm	0.197 in	6.2 mm	Industrial Medical Military Testing Equipment & Measurement	Unshielded	Polyetheretherketone (PEEK)	Push-Pull	Brass	Brass Chrome over Nickel
ODU W22L0C-P14MFG0-920S	Backshell Strain Relief	Gold	Silver	Plug Male Pins	366 V	120 °C	-40 C	2	Metal	Brass	IP50 - Dust Protected	7.5 A	Chrome over Nickel	14	Free Hanging (In-Line) Right Angle	0.362 in	8 mm	0.315 "		Industrial Medical Military Testing Equipment & Measurement	Unshielded	Polyetheretherketone (PEEK)	Push-Pull	Brass	Brass Chrome over Nickel			9.2 mm
ODU W22L0C-P06MPH0-720S	Backshell Strain Relief	Gold	Silver	Plug Male Pins	500 V	120 °C	-40 C	2	Metal	Brass	IP50 - Dust Protected	12 Amps	Chrome over Nickel	6	Free Hanging (In-Line) Right Angle	0.283 "	6 mm	0.236 in	7.2 mm	Industrial Medical Military Testing Equipment & Measurement	Unshielded	Polyetheretherketone (PEEK)	Push-Pull	Brass	Brass Chrome over Nickel
ODU W22L0C-P26MCC0-920S	Backshell Strain Relief	Gold	Silver	Plug Male Pins	300 VDC	120 °C	-40 C	2	Metal	Brass	IP50 - Dust Protected	4 A	Chrome over Nickel	26	Free Hanging (In-Line) Right Angle	0.362 in	8 mm	0.315 "		Industrial Medical Military Testing Equipment & Measurement	Unshielded	Polyetheretherketone (PEEK)	Push-Pull	Brass	Brass Chrome over Nickel			9.2 mm
ODU W22L0C-P04MPH0-720S	Backshell Strain Relief	Gold	Silver	Plug Male Pins	650 V	120 °C	-40 C	2	Metal	Brass	IP50 - Dust Protected	12 Amps	Chrome over Nickel	4	Free Hanging (In-Line) Right Angle	0.283 "	6 mm	0.236 in	7.2 mm	Industrial Medical Military Testing Equipment & Measurement	Unshielded	Polyetheretherketone (PEEK)	Push-Pull	Brass	Brass Chrome over Nickel
ODU W22L0C-P04MPH0-920S	Backshell Strain Relief	Gold	Silver	Plug Male Pins	650 V	120 °C	-40 C	2	Metal	Brass	IP50 - Dust Protected	12 Amps	Chrome over Nickel	4	Free Hanging (In-Line) Right Angle	0.362 in	8 mm	0.315 "		Industrial Medical Military Testing Equipment & Measurement	Unshielded	Polyetheretherketone (PEEK)	Push-Pull	Brass	Brass Chrome over Nickel			9.2 mm
