WR9QX312 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

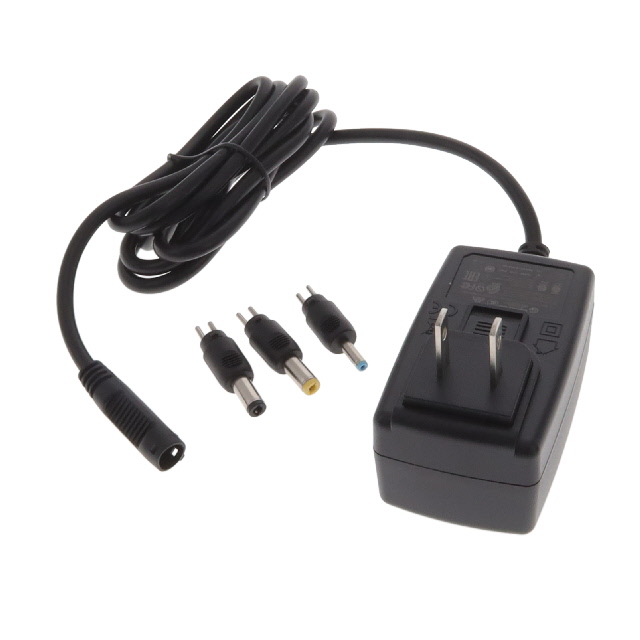

AC/DC WALL MOUNT ADAPTER 48V 15W
| Part | Input Type | Power (Watts) | Output Connector | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector | Standard Number | Approval Agency | Cord Length | Cord Length | Operating Temperature [Min] | Operating Temperature [Max] | Region Utilized | Applications | Form | Efficiency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | No Load Power Consumption | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | Multi-Blade (Included) | 15 W | Barrel Plug Kit (1.3mm x 3.5mm | 48 V | 264 VAC | 90 VAC | Multi-Blade (Included) | 60335-1 60601-1 60950-1 62368-1 | BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI | 1.5 m | 59 in | -20 ░C | 40 °C | International | Household Appliances ITE (Commercial) Medical | Wall Mount | CoC Tier 2 Level VI | 74 mm | 1.45 in | 2.91 in | 43.5 mm | 1.71 in | 36.8 mm | 75 mW | 310 mA |
