176-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB RCPT 9POS R/A SLDR
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Features | Connector Type | Contact Finish | Connector Style | Number of Rows [custom] | Current Rating (Amps) | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Material Flammability Rating | Number of Positions | Mounting Type | Backset Spacing | Backset Spacing | Contact Finish Thickness | Termination | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

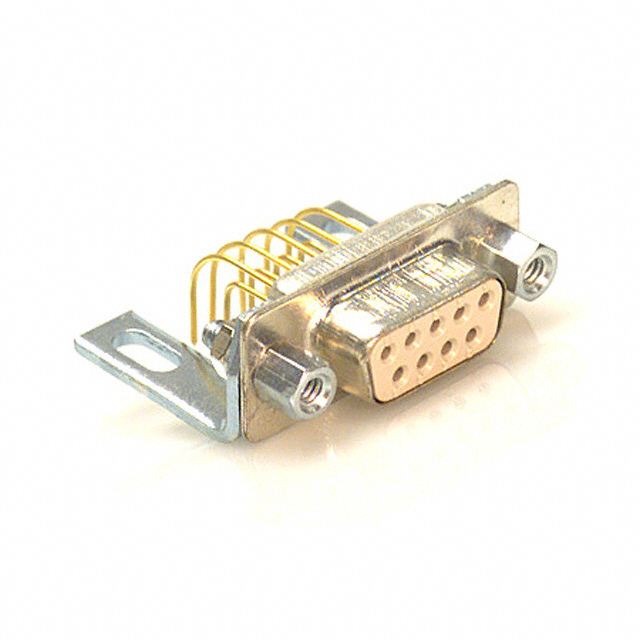

 NorComp Inc. | Polybutylene Terephthalate (PBT) Polyester | 100 °C | -50 °C | Brass | Beige | Mounting Brackets | Receptacle Female Sockets | Gold | D-Sub | 2 | 5 A | Signal | 1 | DE E | 4-40 Mating Side Female Screwlock | UL94 V-0 | 9 | Panel Mount Right Angle Through Hole | 13.84 mm | 0.545 in | Flash | Solder | ||

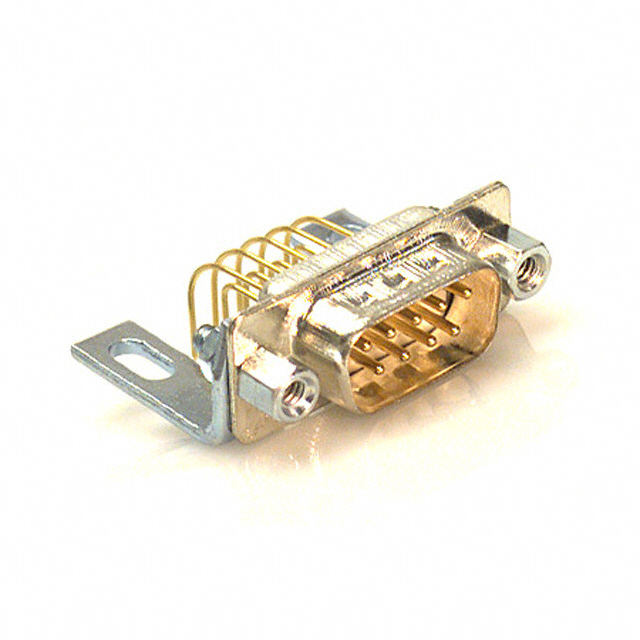

 NorComp Inc. | Polybutylene Terephthalate (PBT) Polyester | 100 °C | -50 °C | Brass | Beige | Grounding Indents Mounting Brackets | Plug Male Pins | Gold | D-Sub | 2 | 5 A | Signal | 1 | DE E | 4-40 Mating Side Female Screwlock | UL94 V-0 | 9 | Panel Mount Right Angle Through Hole | 13.84 mm | 0.545 in | Flash | Solder | ||

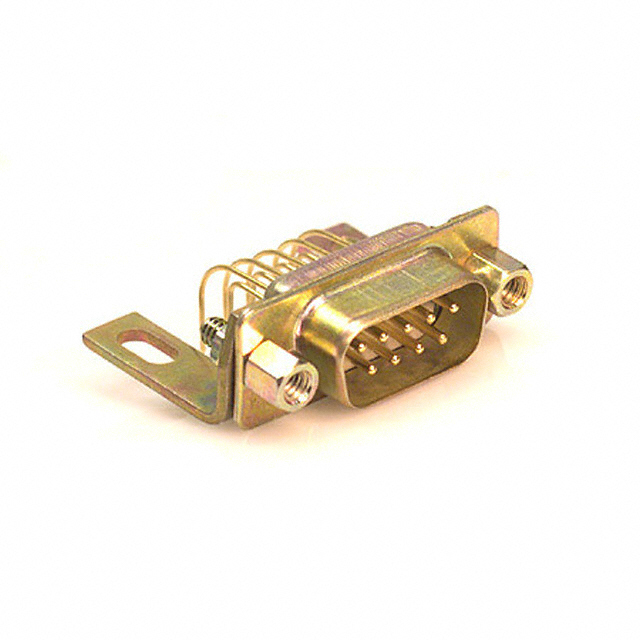

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Beige | Mounting Brackets | Plug Male Pins | Gold | D-Sub | 2 | 5 A | Signal | 1 | DE E | 4-40 Mating Side Female Screwlock | UL94 V-0 | 9 | Panel Mount Right Angle Through Hole | 13.84 mm | 0.545 in | Flash | Solder | Steel | Yellow Chromate Plated |
