501591 Series

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, Surface Mount, Dual Row, Vertical Stacking, 0.90mm Stacking Height, with Solder Tabs, 20 Circuits

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, Surface Mount, Dual Row, Vertical Stacking, 0.90mm Stacking Height, with Solder Tabs, 20 Circuits

Part	Number of Positions	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Mounting Type	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Contact Finish

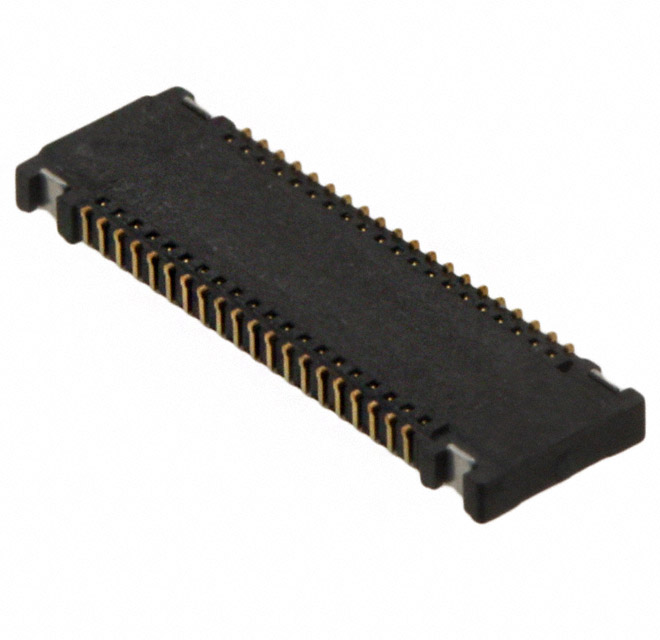

Molex 5015914011	40	Solder Retention	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.9 mm	Surface Mount	2	0.88 mm	0.035 in	0.4 mm	0.016 in	Gold

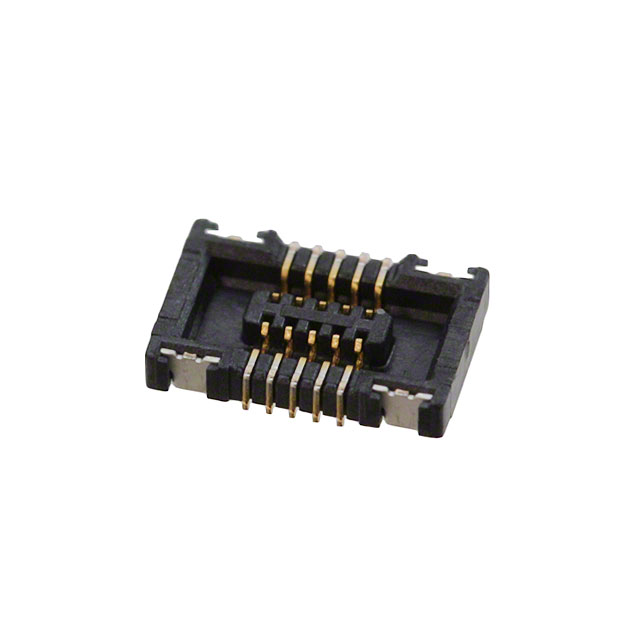

Molex 5015911011	10	Solder Retention	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.9 mm	Surface Mount	2	0.88 mm	0.035 in	0.4 mm	0.016 in	Gold
Molex 5015912211	22	Solder Retention	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.9 mm	Surface Mount	2	0.88 mm	0.035 in	0.4 mm	0.016 in	Gold

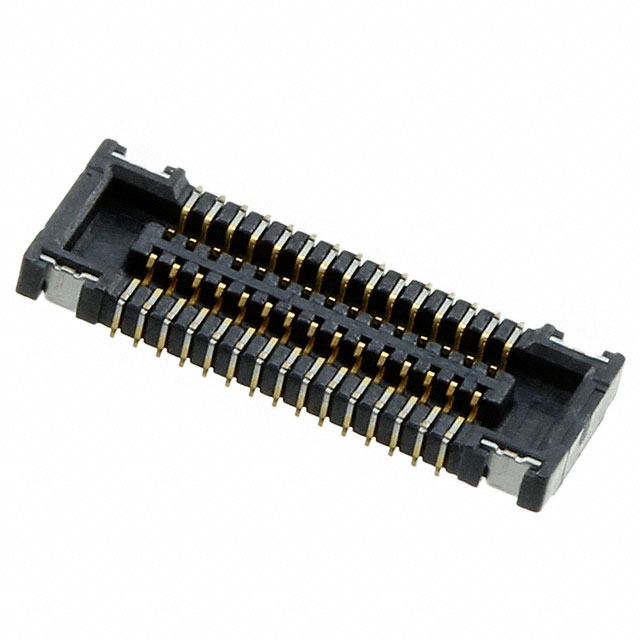

Molex 5015913011	30	Solder Retention	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.9 mm	Surface Mount	2	0.88 mm	0.035 in	0.4 mm	0.016 in	Gold
Molex 5015912011	20	Solder Retention	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.9 mm	Surface Mount	2	0.88 mm	0.035 in	0.4 mm	0.016 in	Gold
Molex 5015912411	24	Solder Retention	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.9 mm	Surface Mount	2	0.88 mm	0.035 in	0.4 mm	0.016 in	Gold

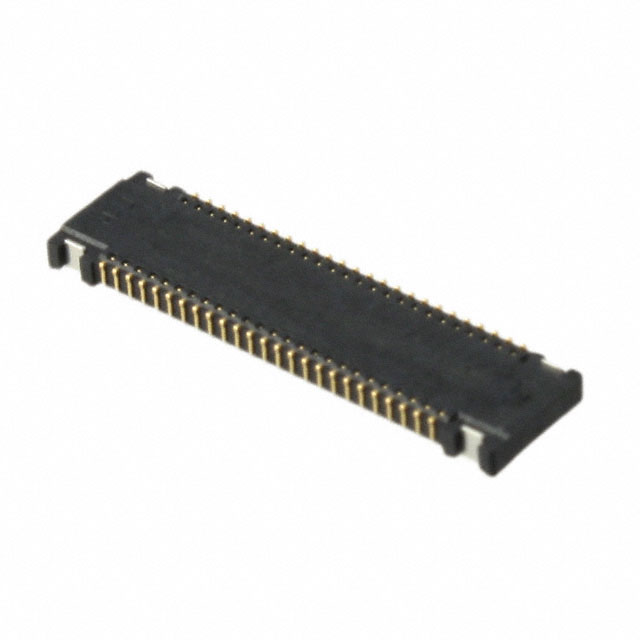

Molex 5015915011	50	Solder Retention	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.9 mm	Surface Mount	2	0.88 mm	0.035 in	0.4 mm	0.016 in	Gold

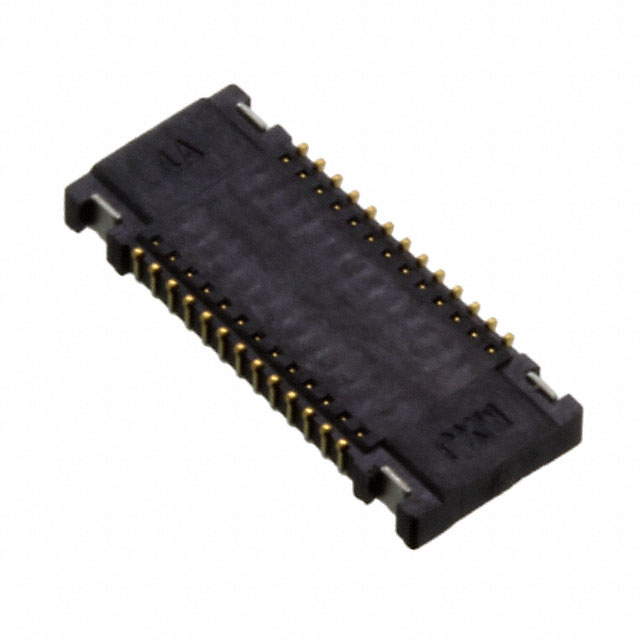

Molex 5015912611	26	Solder Retention	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.9 mm	Surface Mount	2	0.88 mm	0.035 in	0.4 mm	0.016 in	Gold
Molex 5015917011	70	Solder Retention	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.9 mm	Surface Mount	2	0.88 mm	0.035 in	0.4 mm	0.016 in	Gold

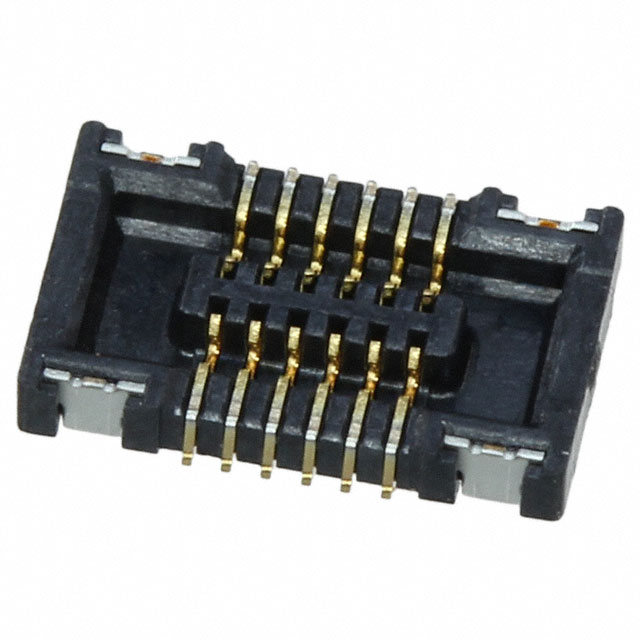

Molex 5015911211	12	Solder Retention	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.9 mm	Surface Mount	2	0.88 mm	0.035 in	0.4 mm	0.016 in	Gold
