FASTON 250 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
CONN QC TAB 0.250 SOLDER
...
| Part | Contact Finish | Insulation | Tab Thickness | Tab Thickness | Mounting Type | Tab Length | Tab Length | Termination | Gender | Terminal Type | Contact Material | Tab Width [x] | Tab Width [x] | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall | Length - Overall | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Number of Positions | Style | Color | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Features | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Note | Material | For Use With/Related Products | For Use With/Related Products | Terminal Size | Terminal Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | Non-Insulated | 0.81 mm | 0.032 in | Right Angle Through Hole | 0.312 " | 7.92 mm | Solder | Male | Standard | Brass | 6.35 mm | 0.25 in | ||||||||||||||||||||||||||||

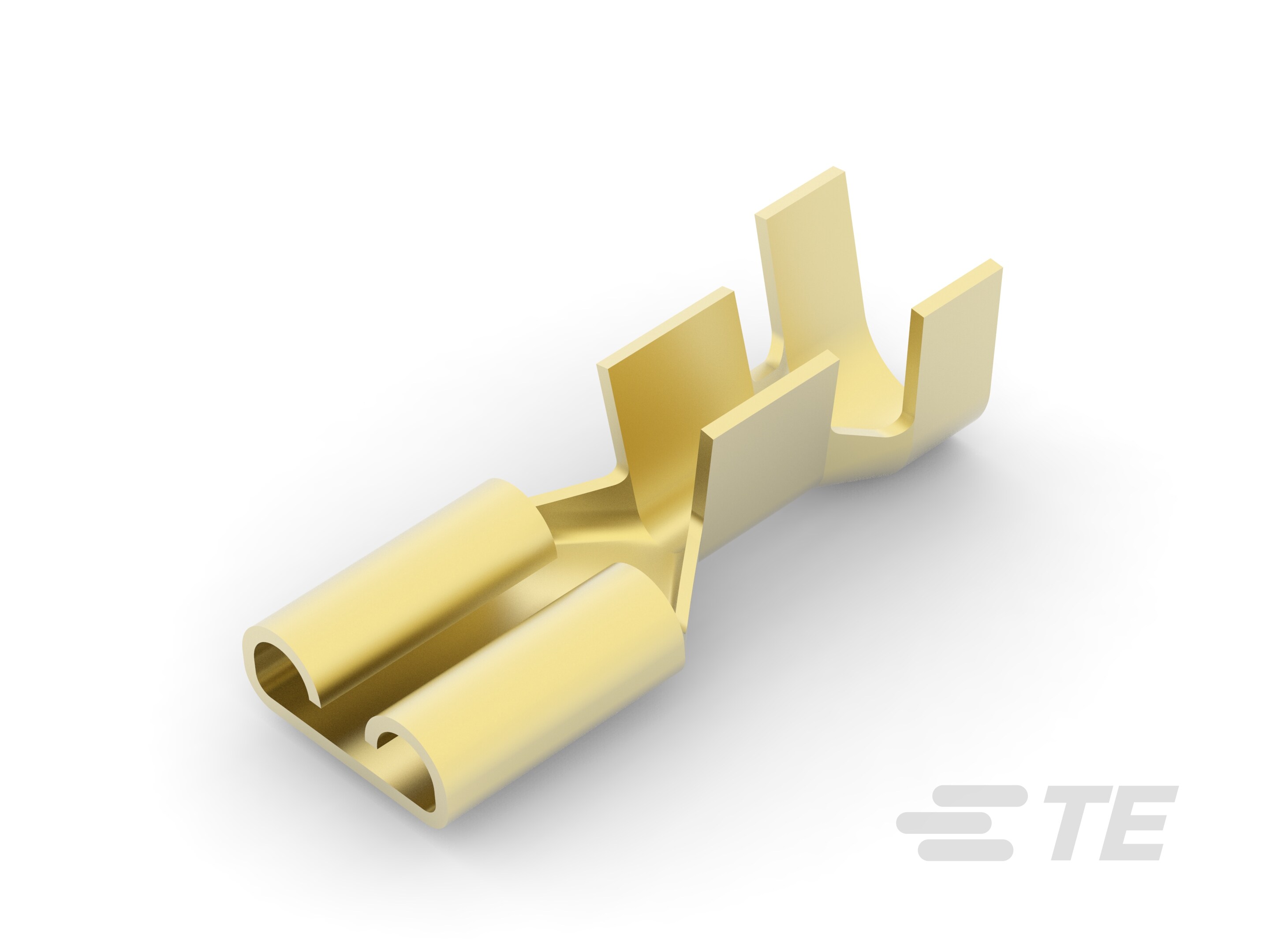

 TE Connectivity AMP Connectors | Non-Insulated | 0.81 mm | 0.032 in | Free Hanging (In-Line) | 0.305 in | 7.75 mm | Crimp | Female | Standard | Brass | 6.35 mm | 0.25 in | 14 AWG | 10 AWG | 0.77 in | 19.56 mm | |||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Nickel | Non-Insulated | 0.81 mm | 0.032 in | Free Hanging (In-Line) | 0.303 in | 7.7 mm | Crimp | Female Male | Stacked | Steel | 6.35 mm | 0.25 in | 18 AWG | 14 AWG | 0.791 in | 20.09 mm | ||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Tin | Non-Insulated | 0.81 mm | 0.032 in | Through Hole | 0.312 " | 7.92 mm | Solder | Male | Standard | Brass | 6.35 mm | 0.25 in | 0.74 in | 18.8 mm | ||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Tin | Non-Insulated | 0.81 mm | 0.032 in | Free Hanging (In-Line) Right Angle | Crimp | Female | Angled - 90° Flag | Brass | 6.35 mm | 0.25 in | 22 AWG | 17.5 AWG | 2.54 mm | 0.1 in | 1.52 mm | 0.06 in | ||||||||||||||||||||||||

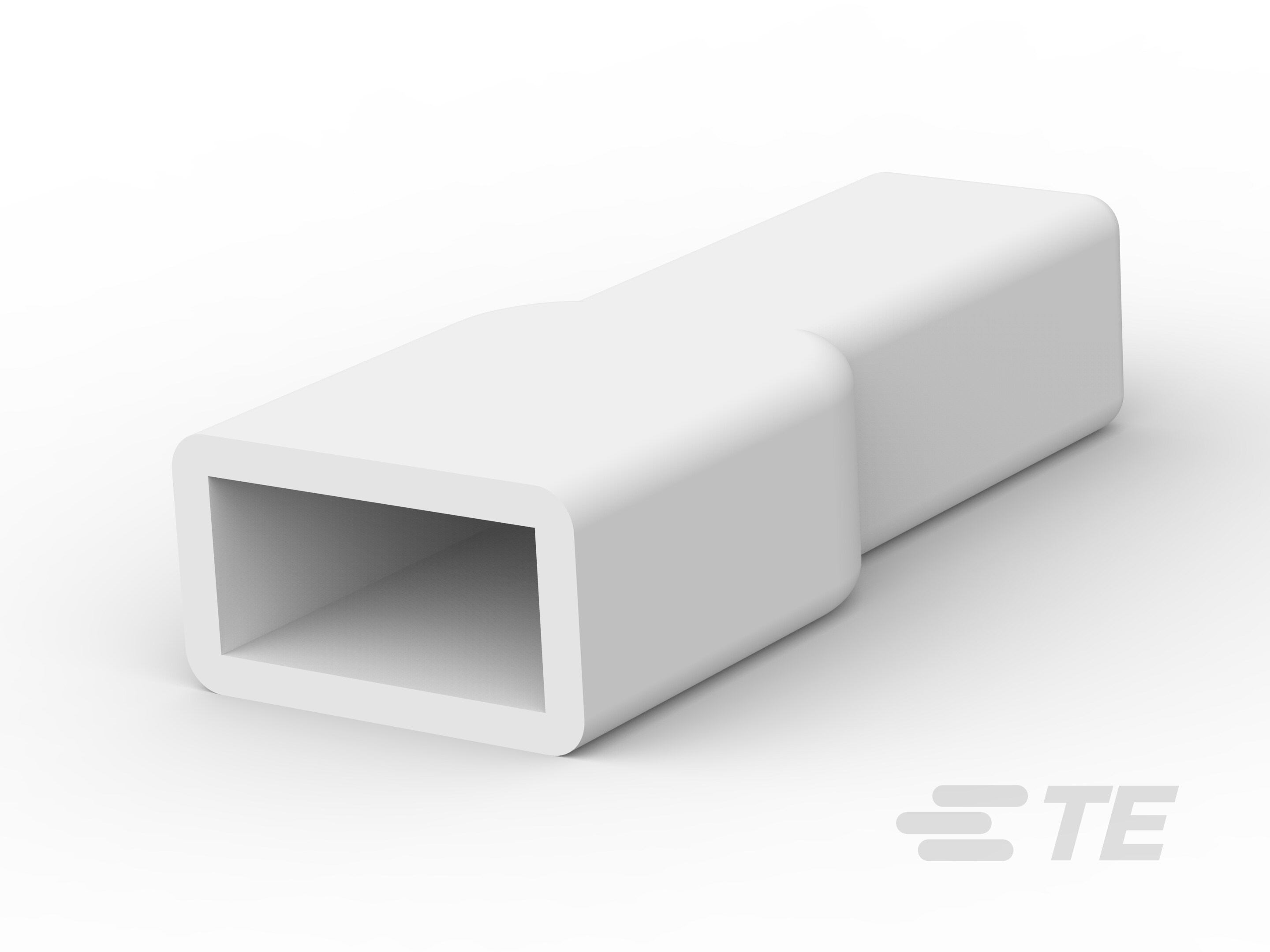

 TE Connectivity AMP Connectors | Free Hanging (In-Line) | Female Receptacle | Quick Connect Disconnect | 1 | Sleeve | Natural | |||||||||||||||||||||||||||||||||||

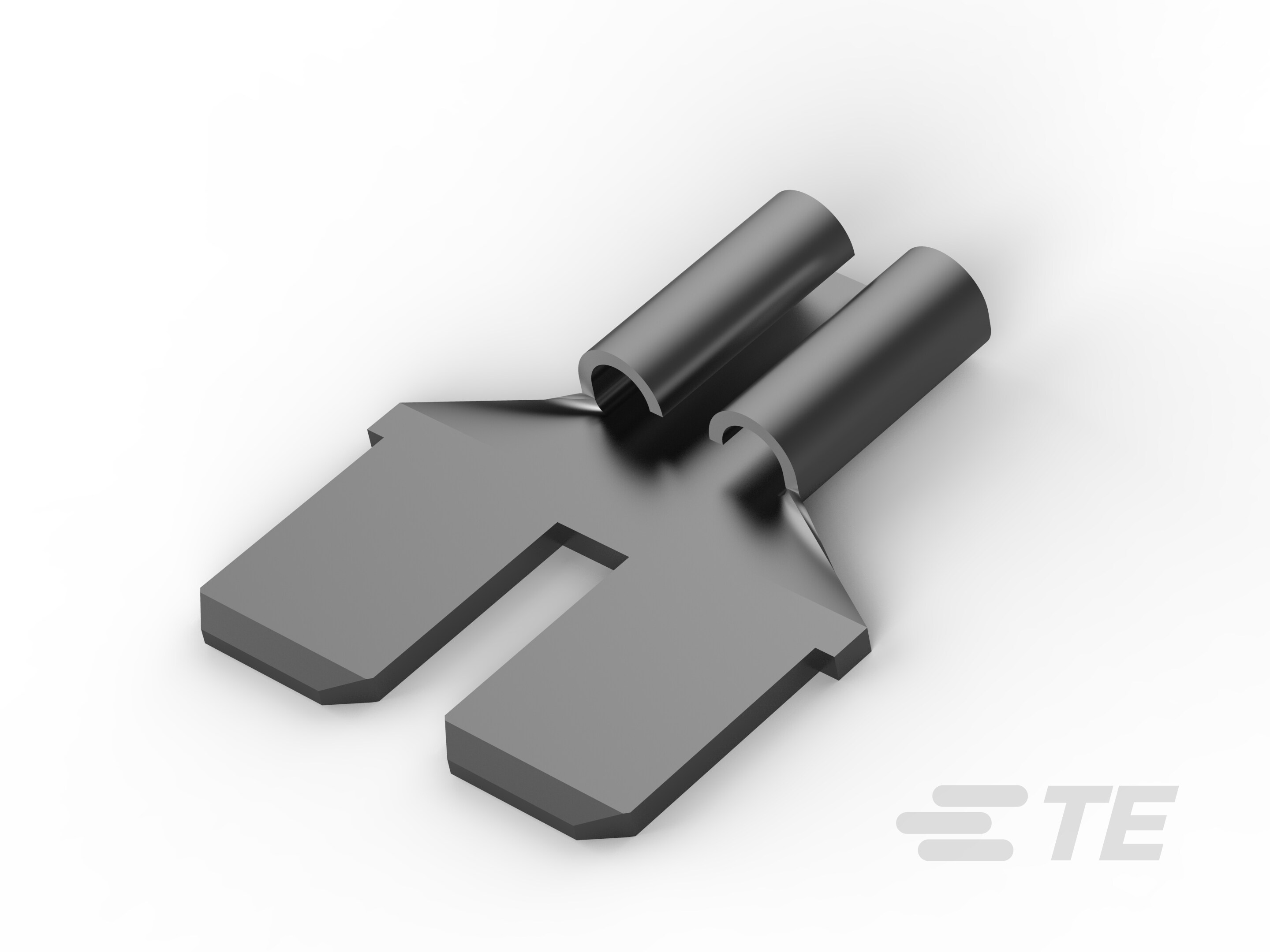

 TE Connectivity AMP Connectors | Tin | Non-Insulated | Brass | Quick Connect Male Quick Connect Male (2) | 0.25 in | 0.25 in 2 Rows | 6.35 mm | Side by Side Male Terminals | Quick Connect Female | 0.25 in | 0.25 in | 0.25 in | |||||||||||||||||||||||||||||

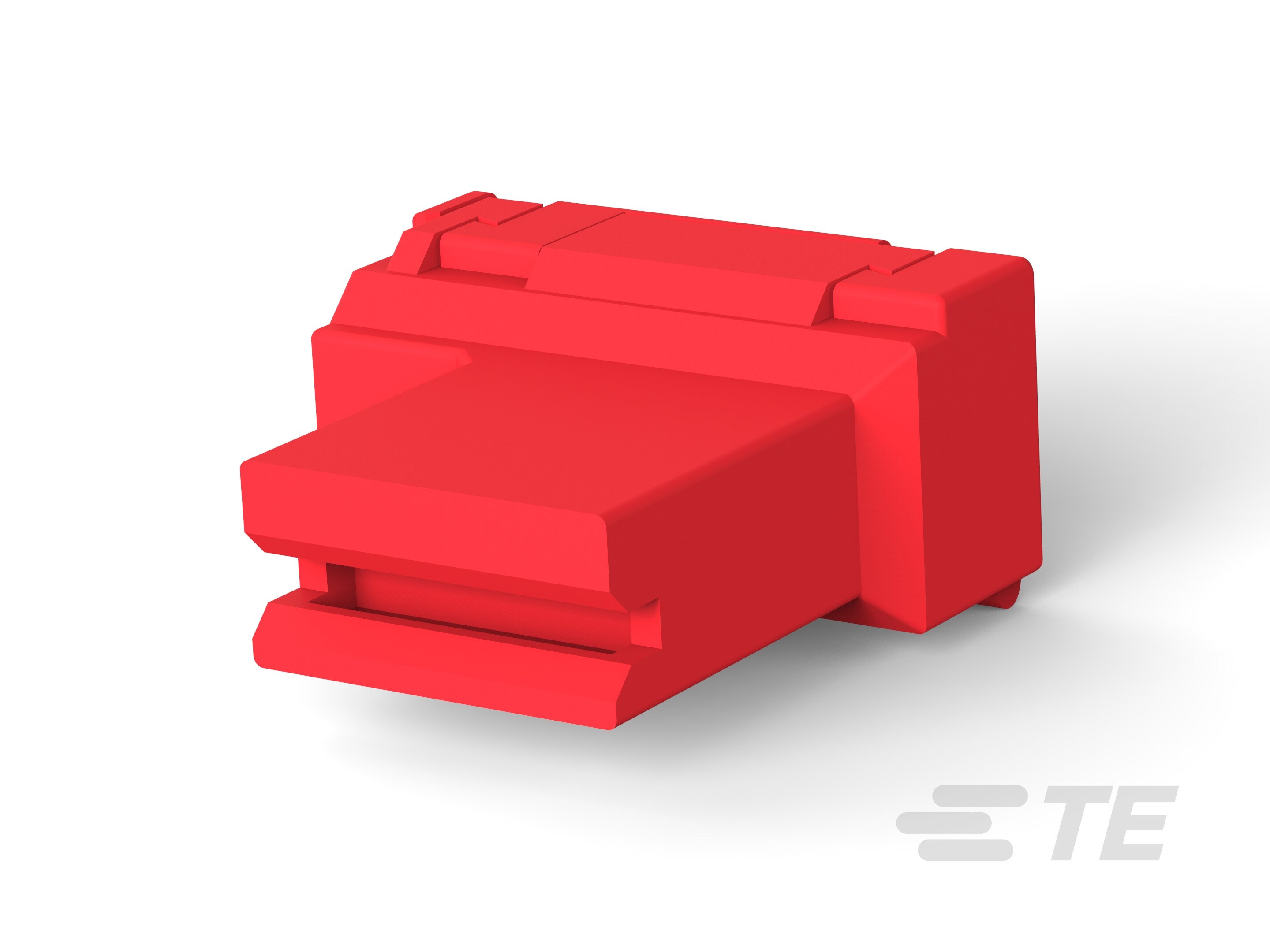

 TE Connectivity AMP Connectors | Free Hanging (In-Line) | Female Receptacle | Quick Connect Disconnect | 1 | Housing | Red | Contacts Not Included | Polyamide (PA) Nylon | Flag Quick Connects | 6.35 mm | 0.25 in | 6.35 mm | |||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Tin | Non-Insulated | 0.81 mm | 0.032 in | Free Hanging (In-Line) | 0.303 in | 7.7 mm | Crimp | Female | Standard | Bronze | 6.35 mm | 0.25 in | 17 AWG | 13 AWG | 0.669 in | 17 mm | ||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Non-Insulated | 0.81 mm | 0.032 in | Free Hanging (In-Line) | 0.303 in | 7.7 mm | Crimp | Female | Standard | Phosphor Bronze | 6.35 mm | 0.25 in | 20 AWG | 16 AWG | 0.748 in | 19 mm |
