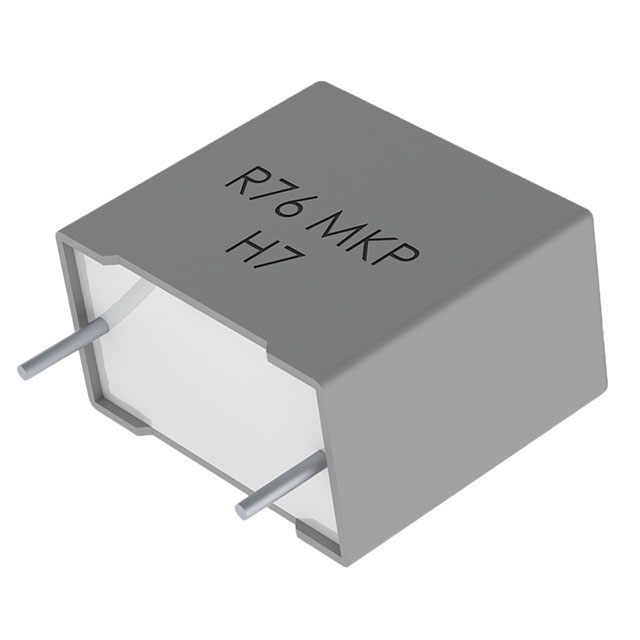

R76UI Series

Manufacturer: KEMET

Catalog

CAP, 470PF, 2 KV, 5%, PP, RADIAL

Part	Mounting Type	Tolerance	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Package / Case	Lead Spacing	Lead Spacing	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Termination	Voltage Rating - AC	Capacitance	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [z]	Height - Seated (Max) [Max] [z]
KEMET R76UI04704000J	Through Hole	5 %	2 kV	2 kVDC	11.1 mm	0.437 in	Automotive High Frequency Switching High Pulse DV/DT	-55 C	110 °C	AEC-Q200	Radial	15 mm	0.591 in	Polypropylene (PP) Metallized	0.709 in	5 mm	18 mm	0.197 "	PC Pins	700 V	470 pF
KEMET R76UI12204030J	Through Hole	5 %	2 kV	2 kVDC	11.1 mm	0.437 in	Automotive High Frequency Switching High Pulse DV/DT	-55 C	110 °C	AEC-Q200	Radial	15 mm	0.591 in	Polypropylene (PP) Metallized	0.709 in	5 mm	18 mm	0.197 "	PC Pins	700 V	2200 pF
KEMET R76UI0150SE40J	Through Hole	5 %	2 kV	2 kVDC			Automotive High Frequency Switching High Pulse DV/DT	-55 C	125 °C	AEC-Q200	Radial	15 mm	0.591 in	Polypropylene (PP) Metallized	0.709 in		18 mm	0.157 "	PC Pins	700 V	150 pF	4 mm	4.244 Ohms	10.1 mm	0.398 in
KEMET R76UI0100SE40J	Through Hole	5 %	2 kV	2 kVDC			Automotive High Frequency Switching High Pulse DV/DT	-55 C	125 °C	AEC-Q200	Radial	15 mm	0.591 in	Polypropylene (PP) Metallized	0.709 in		18 mm	0.157 "	PC Pins	700 V	100 pF	4 mm	6.366 Ohms	10.1 mm	0.398 in
