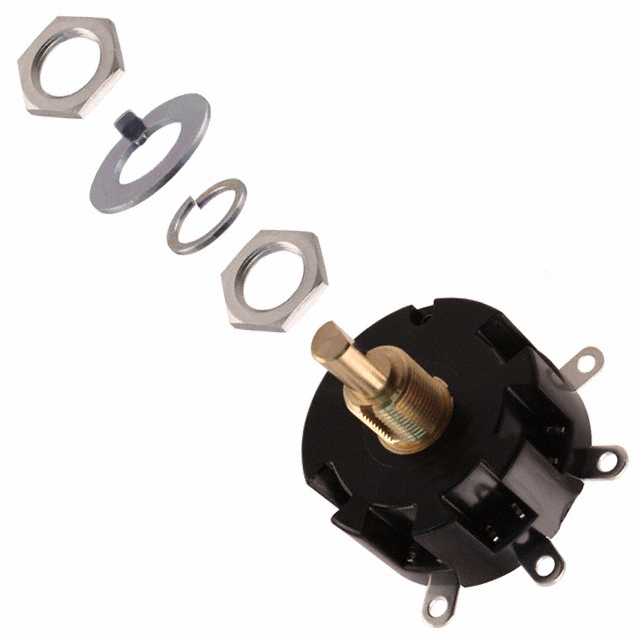

HS13Y Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROTARY 3POS 6A 125V
| Part | Panel Cutout Dimensions [diameter] | Mounting Type | Contact Timing | Actuator Length [x] | Angle of Throw | Number of Decks [custom] | Voltage Rating - DC | Termination Style | Index Stops | Depth Behind Panel [z] | Circuit per Deck | Number of Poles per Deck | Contact Material | Current Rating (Amps) | Voltage Rating - AC | Actuator Type | Actuator Type [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10.3 mm | Panel Mount | Non-Shorting (BBM) | 10 mm | 45 ° | 1 | 30 V | Solder Lug | Fixed | 20 mm | SP3T | 1 | Phosphor Bronze | 5 A 6 A | 125 V | Flatted | 6 mm |
