6340 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

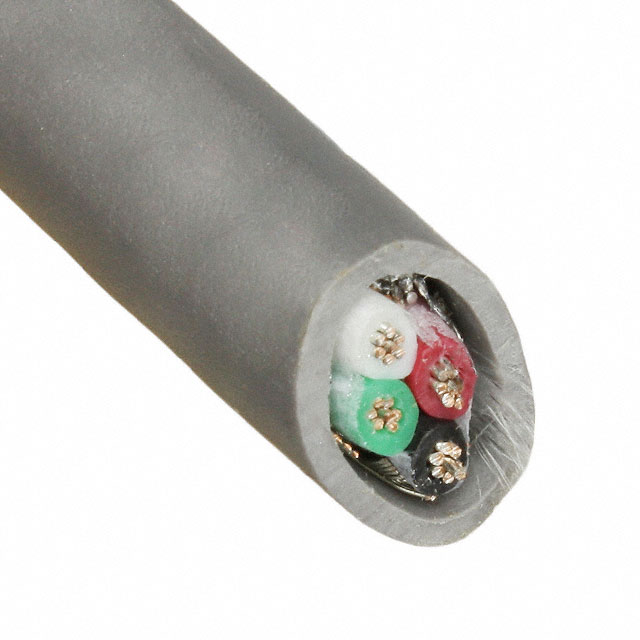

CABLE 4COND 22AWG SHLD 1000'
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Material | Length | Length | Ratings | Jacket (Insulation) Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Number of Conductors | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Features | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -20 ░C | Slate | Copper Tinned | 304.8 m | 1000 ft | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 22 AWG | 4 | Multi-Conductor | 0.211 in | 5.36 mm | 300 VDC | Drain Wire | 28 AWG | 7 | Braid Foil | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -20 ░C | Slate | Copper Tinned | 152.4 m | 500 ft | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 22 AWG | 4 | Multi-Conductor | 0.211 in | 5.36 mm | 300 VDC | Drain Wire | 28 AWG | 7 | Braid Foil | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -20 ░C | Slate | Copper Tinned | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 22 AWG | 4 | Multi-Conductor | 0.211 in | 5.36 mm | 300 VDC | Drain Wire | 28 AWG | 7 | Braid Foil | 100 ft | 30.5 m |
