726-026 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 26POS 0.125

Part	Material - Insulation	Termination Rows	Contact Material	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Gender	Mounting Type	Read Out	Number of Rows	Pitch	Pitch	Contact Finish	Color	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 726-026-520-101	Polyester Thermoplastic	1	Copper Alloy	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Female	Through Hole	Single	1	3.18 mm	0.125 in	Gold	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	26	Cantilever	-40 C	105 ░C
EDAC Inc. 726-026-527-201	Polyester Thermoplastic		Copper Alloy	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Female	Through Hole	Dual		3.18 mm	0.125 in	Gold	Black	Non Specified - Dual Edge	30 Áin	0.76 Ám	13	Cantilever	-40 C	105 ░C	2	2
EDAC Inc. 726-026-545-201	Polyester Thermoplastic		Copper Alloy	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Female	Through Hole	Dual		3.18 mm	0.125 in	Gold	Black	Non Specified - Dual Edge	30 Áin	0.76 Ám	13	Cantilever	-40 C	105 ░C	2	2
EDAC Inc. 726-026-540-101	Polyester Thermoplastic	1	Copper Alloy	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Female	Through Hole	Single	1	3.18 mm	0.125 in	Gold	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	26	Cantilever	-40 C	105 ░C
EDAC Inc. 726-026-525-101	Polyester Thermoplastic	1	Copper Alloy	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Female	Through Hole	Single	1	3.18 mm	0.125 in	Gold	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	26	Cantilever	-40 C	105 ░C
EDAC Inc. 726-026-527-101	Polyester Thermoplastic	1	Copper Alloy	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Female	Through Hole	Single	1	3.18 mm	0.125 in	Gold	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	26	Cantilever	-40 C	105 ░C
EDAC Inc. 726-026-541-101	Polyester Thermoplastic	1	Copper Alloy	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Female	Through Hole	Single	1	3.18 mm	0.125 in	Gold	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	26	Cantilever	-40 C	105 ░C

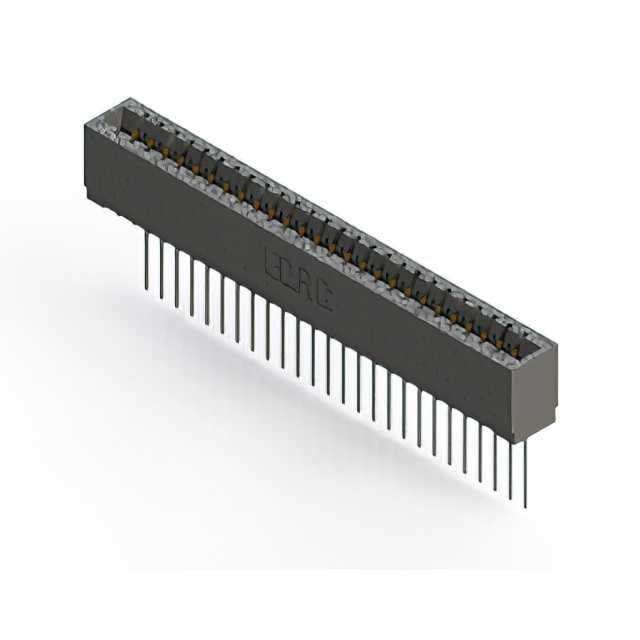

EDAC Inc. 726-026-553-101	Polyester Thermoplastic	1	Copper Alloy	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Female	Through Hole	Single	1	3.18 mm	0.125 in	Gold	Black	Non Specified - Single Edge	30 Áin	0.76 Ám	26	Cantilever	-40 C	105 ░C

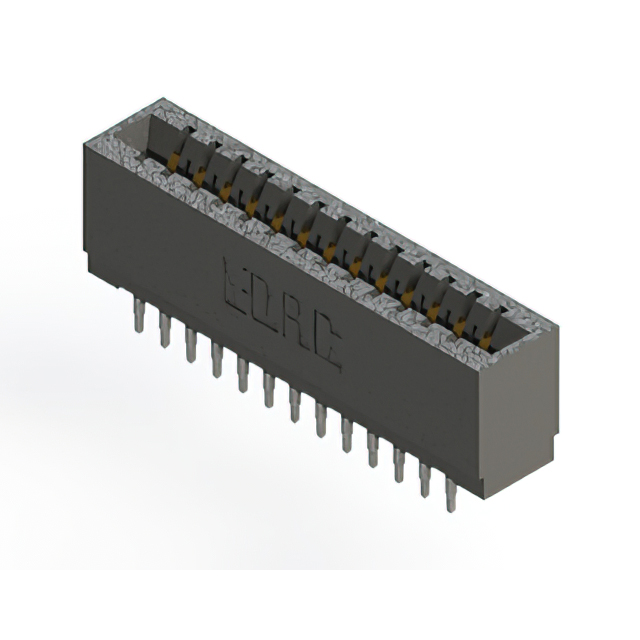

EDAC Inc. 726-026-520-201	Polyester Thermoplastic		Copper Alloy	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Female	Through Hole	Dual		3.18 mm	0.125 in	Gold	Black	Non Specified - Dual Edge	30 Áin	0.76 Ám	13	Cantilever	-40 C	105 ░C	2	2

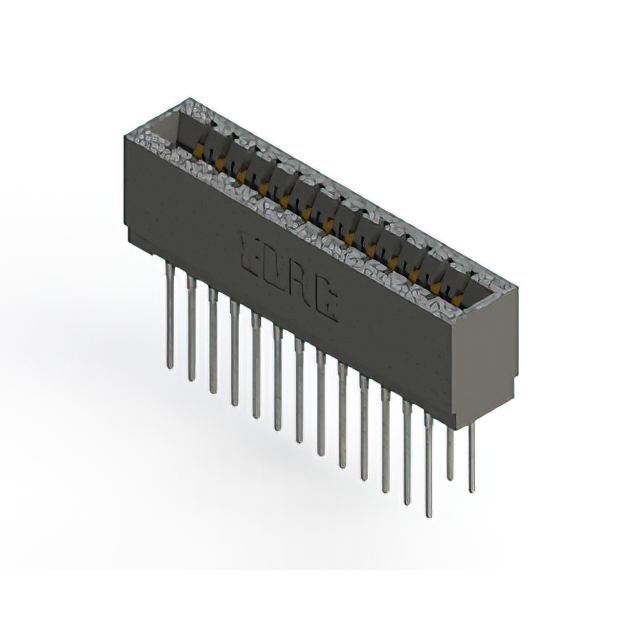

EDAC Inc. 726-026-540-201	Polyester Thermoplastic		Copper Alloy	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	26	Female	Through Hole	Dual		3.18 mm	0.125 in	Gold	Black	Non Specified - Dual Edge	30 Áin	0.76 Ám	13	Cantilever	-40 C	105 ░C	2	2
