8058 Series

Catalog

CONN TRANSIST TO-5 8POS GOLD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Contact Finish - Mating	Mounting Type	Termination	Contact Finish - Post	Contact Material - Post [custom]	Features	Type	Number of Positions or Pins (Grid)	Housing Material	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Resistance
TE Connectivity AMP Connectors 8058-39G4	-55 C	125 °C	Beryllium Copper	Gold	Through Hole	Solder	Gold	Brass	Closed Frame	Transistor TO-5	8	Polytetrafluoroethylene (PTFE)

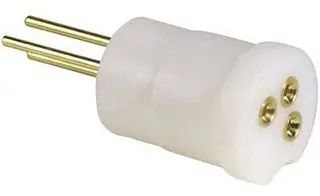

TE Connectivity AMP Connectors 8058-1G32	-55 C	125 °C	Beryllium Copper	Gold	Through Hole	Solder	Gold	Brass	Closed Frame	Transistor TO-5	8	Polytetrafluoroethylene (PTFE)

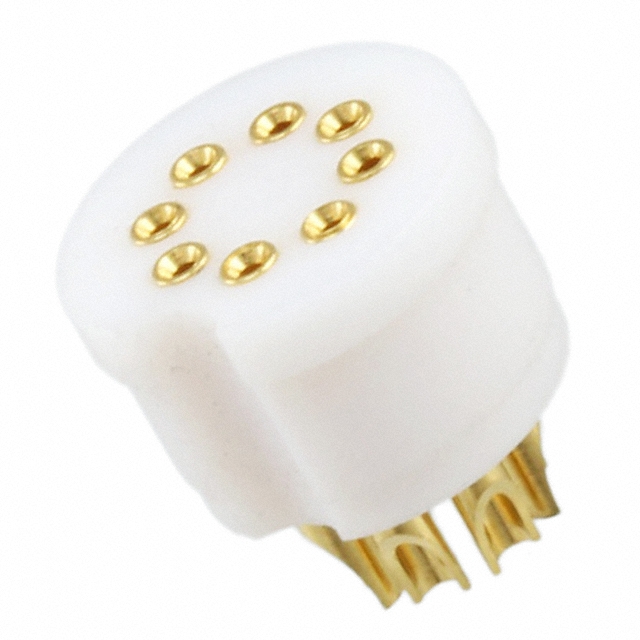

TE Connectivity AMP Connectors 8058-1G19	-55 C	125 °C	Beryllium Copper	Gold	Panel Mount		Gold	Brass		Transistor TO-5	8	Polytetrafluoroethylene (PTFE)	0.125 in	3.18 mm	3 A	20 mOhm
TE Connectivity AMP Connectors 8058-1G30	-55 C	125 °C	Beryllium Copper	Gold	Panel Mount	Solder	Gold	Brass	Closed Frame	Transistor TO-5	4	Polytetrafluoroethylene (PTFE)
TE Connectivity AMP Connectors 8058-1G29	-55 C	125 °C	Beryllium Copper	Gold	Panel Mount	Solder	Gold	Brass	Closed Frame	Transistor TO-5	3	Polytetrafluoroethylene (PTFE)
TE Connectivity AMP Connectors 8058-1G31	-55 C	125 °C	Beryllium Copper	Gold	Through Hole	Solder	Gold	Brass	Closed Frame	Transistor TO-5	10	Polytetrafluoroethylene (PTFE)
TE Connectivity AMP Connectors 8058-1G45	-55 C	125 °C	Beryllium Copper	Gold	Through Hole	Solder	Gold	Brass	Closed Frame	Transistor TO-5	8	Polytetrafluoroethylene (PTFE)
