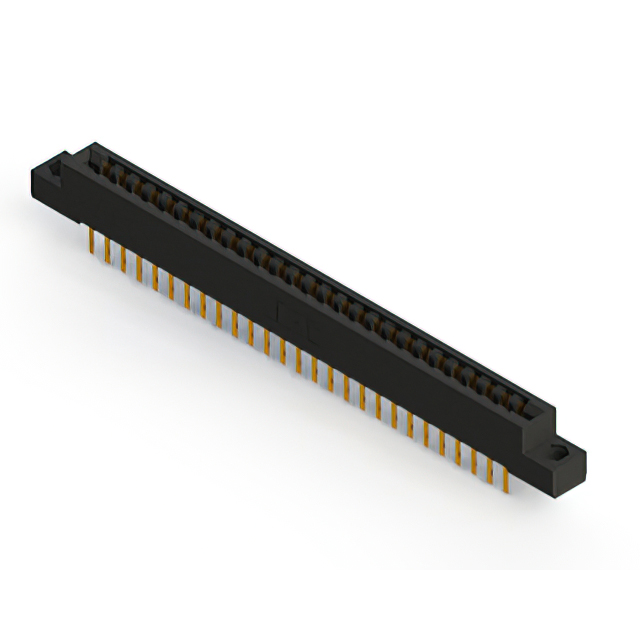

857-054 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 54POS 0.156
| Part | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Read Out | Contact Material | Flange Feature | Number of Positions/Bay/Row [custom] | Card Type | Color | Mounting Type | Gender | Number of Positions | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Termination | Material - Insulation | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Dual | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 27 | Non Specified - Dual Edge | Black | Through Hole | Female | 54 | 2 | 125 °C | -40 °C | Semi Bellows | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | |||||
 EDAC Inc. | 2 | Dual | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 27 | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Female | 54 | 2 | 125 °C | -40 °C | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Card Extender | ||||||
 EDAC Inc. | 2 | Dual | Copper Alloy | Floating Bobbin Flush Mount | 27 | Non Specified - Dual Edge | Black | Through Hole | Female | 54 | 2 | 125 °C | -40 °C | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 0.116 in | 2.95 mm | |||||
 EDAC Inc. | 2 | Dual | Copper Alloy | 27 | Non Specified - Dual Edge | Black | Through Hole | Female | 54 | 2 | 125 °C | -40 °C | Semi Bellows | Wire Wrap | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | ||||||||
 EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Dual | Copper Alloy | Flush Mount Top Opening Unthreaded | 27 | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Female | 54 | 2 | 125 °C | -40 °C | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Card Extender | 0.156 in | 3.96 mm | ||
 EDAC Inc. | 2 | Dual | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 27 | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Female | 54 | 2 | 125 °C | -40 °C | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Card Extender | ||||||
 EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Dual | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 27 | Non Specified - Dual Edge | Black | Through Hole | Female | 54 | 2 | 125 °C | -40 °C | Semi Bellows | Wire Wrap | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | |||||
 EDAC Inc. | 2 | Dual | Copper Alloy | Flush Mount Top Opening Unthreaded | 27 | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Female | 54 | 2 | 125 °C | -40 °C | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Card Extender | 0.156 in | 3.96 mm | ||||
 EDAC Inc. | 2 | Dual | Copper Alloy | Side Mount Opening Unthreaded | 27 | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Female | 54 | 2 | 125 °C | -40 °C | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Card Extender | 3.25 mm | 0.128 in | ||||
 EDAC Inc. | 2 | Dual | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 27 | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Female | 54 | 2 | 125 °C | -40 °C | Semi Bellows | Solder | Polyphenylene Sulfide (PPS) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Card Extender |
