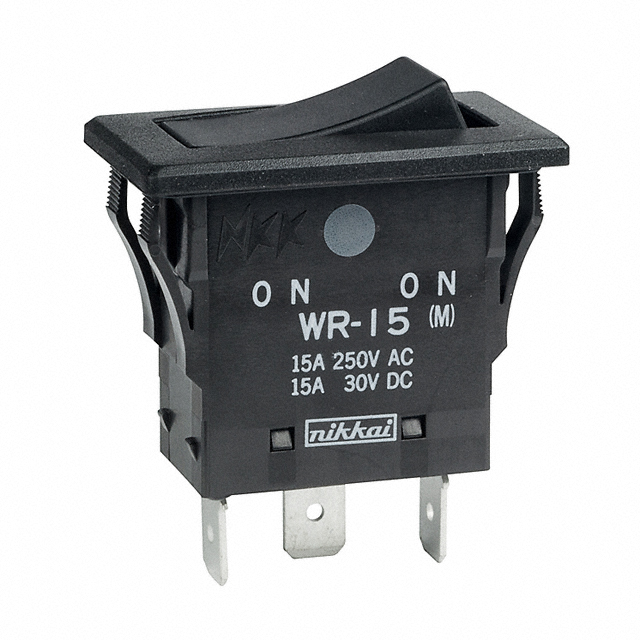

WR15AF Series
Manufacturer: NKK Switches
Beta
⌘K
ENVIRONMENTALLY SEALED ROCKER
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Features | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Color - Actuator/Cap | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Circuit | Approval Agency | Actuator Marking | Current Rating (Amps) | Actuator Type | Ingress Protection | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 30000 Steps | 10000 Cycles | 125 V | Epoxy Sealed Terminals | 30 V | 85 °C | -25 °C | Panel Mount Snap-In | Black | 34.2 mm | 17.2 mm | SPDT | EN UL | No Marking | 15 A | Concave (Curved) | IP67 - Dust Tight Waterproof | Quick Connect - 0.250" (6.3mm) | On-Mom |
 NKK Switches | 30000 Steps | 10000 Cycles | 125 V | Epoxy Sealed Terminals | 30 V | 85 °C | -25 °C | Panel Mount Snap-In | Black | 34.2 mm | 17.2 mm | SPDT | EN UL | No Marking | 15 A | Concave (Curved) | IP67 - Dust Tight Waterproof | Quick Connect - 0.250" (6.3mm) | On-Mom |
NKK Switches | 30000 Steps | 10000 Cycles | 125 V | Epoxy Sealed Terminals | 30 V | 85 °C | -25 °C | Panel Mount Snap-In | Black | 34.2 mm | 17.2 mm | SPDT | EN UL | No Marking | 15 A | Concave (Curved) | IP67 - Dust Tight Waterproof | Quick Connect - 0.250" (6.3mm) | On-Mom |
