0390-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

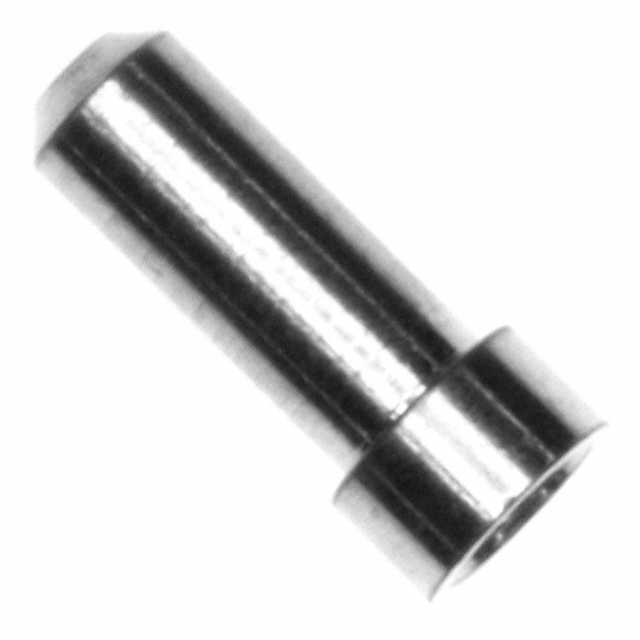

CONN PIN RCPT .084-.102 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter | Mounting Hole Diameter | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Socket Depth | Socket Depth | Termination | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Material | Tail Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 30 Áin | 0.76 Ám | 0.144 " | 3.66 mm | Gold | 4.78 mm | 0.188 in | 11.81 mm | 0.465 " | 0.415 in | 10.54 mm | Solder | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 0.122 in | 3.1 mm | Beryllium Copper | No Tail |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 200 Áin | 5.08 Ám | 0.144 " | 3.66 mm | Tin-Lead | 4.78 mm | 0.188 in | 11.81 mm | 0.465 " | 0.415 in | 10.54 mm | Solder | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 0.122 in | 3.1 mm | Beryllium Copper | No Tail |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 10 Áin | 0.25 Ám | 0.144 " | 3.66 mm | Gold | 4.78 mm | 0.188 in | 11.81 mm | 0.465 " | 0.415 in | 10.54 mm | Solder | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 0.122 in | 3.1 mm | Beryllium Copper | No Tail |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 10 Áin | 0.25 Ám | 0.144 " | 3.66 mm | Gold | 4.78 mm | 0.188 in | 11.81 mm | 0.465 " | 0.415 in | 10.54 mm | Solder | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 0.122 in | 3.1 mm | Beryllium Copper | No Tail |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 10 Áin | 0.25 Ám | 0.144 " | 3.66 mm | Gold | 4.78 mm | 0.188 in | 11.81 mm | 0.465 " | 0.415 in | 10.54 mm | Solder | 0.102 " | 2.13 mm | 2.59 mm | 0.084 " | 0.122 in | 3.1 mm | Beryllium Copper | No Tail |
