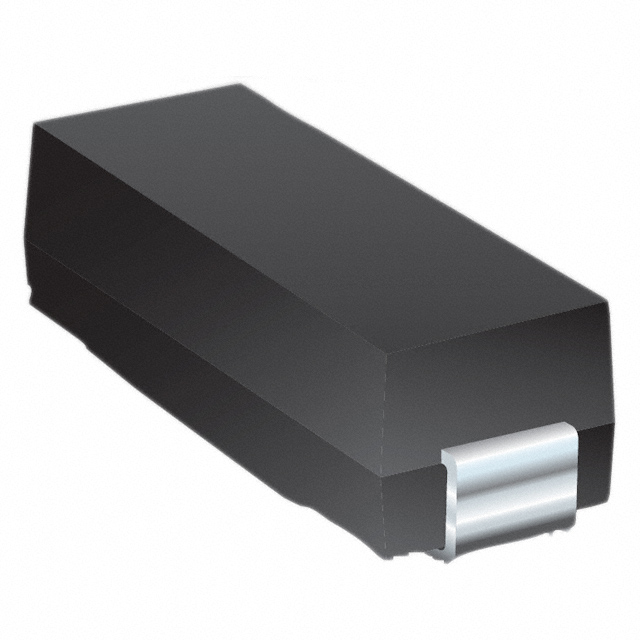

PWR6327 Series

Catalog

RES SMD 2.2K OHM 5% 3W 6327

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Terminations [custom]	Power (Watts)	Composition	Package / Case	Temperature Coefficient	Tolerance	Resistance
Bourns Inc. PWR6327W2201JE	0.272 in	0.626 in	6.9 mm	15.9 mm	0.268 "	6.8 mm	Current Sense Moisture Resistant Non-Inductive Pulse Withstanding	-55 C	275 °C	2	3 W	Wirewound	6327 J-Lead	20 ppm/°C	5 %	2200 Ohms
Bourns Inc. PWR6327W15R0J	0.272 in	0.626 in	6.9 mm	15.9 mm	0.268 "	6.8 mm	Current Sense Moisture Resistant Non-Inductive Pulse Withstanding	-55 C	275 °C	2	3 W	Wirewound	6327 J-Lead	20 ppm/°C	5 %	15 Ohms
Bourns Inc. PWR6327W68R0J	0.272 in	0.626 in	6.9 mm	15.9 mm	0.268 "	6.8 mm	Current Sense Moisture Resistant Non-Inductive Pulse Withstanding	-55 C	275 °C	2	3 W	Wirewound	6327 J-Lead	20 ppm/°C	5 %	68 Ohms
Bourns Inc. PWR6327WR360JE	0.272 in	0.626 in	6.9 mm	15.9 mm	0.268 "	6.8 mm	Current Sense Moisture Resistant Non-Inductive Pulse Withstanding	-55 C	275 °C	2	3 W	Wirewound	6327 J-Lead	150 ppm/°C	5 %	360 mOhms
Bourns Inc. PWR6327W1000JE	0.272 in	0.626 in	6.9 mm	15.9 mm	0.268 "	6.8 mm	Current Sense Moisture Resistant Non-Inductive Pulse Withstanding	-55 C	275 °C	2	3 W	Wirewound	6327 J-Lead	20 ppm/°C	5 %	100 Ohms
Bourns Inc. PWR6327N10R5FE	0.272 in	0.626 in	6.9 mm	15.9 mm	0.268 "	6.8 mm	Current Sense Moisture Resistant Non-Inductive Pulse Withstanding	-55 C	275 °C	2	3 W	Wirewound	6327 J-Lead	20 ppm/°C	1 %	10.5 Ohms
Bourns Inc. PWR6327WR470J	0.272 in	0.626 in	6.9 mm	15.9 mm	0.268 "	6.8 mm	Current Sense Moisture Resistant Non-Inductive Pulse Withstanding	-55 C	275 °C	2	3 W	Wirewound	6327 J-Lead	150 ppm/°C	5 %	470 mOhms
Bourns Inc. PWR6327W10R0JE	0.272 in	0.626 in	6.9 mm	15.9 mm	0.268 "	6.8 mm	Current Sense Moisture Resistant Non-Inductive Pulse Withstanding	-55 C	275 °C	2	3 W	Wirewound	6327 J-Lead	50 ppm/░C	5 %	10 Ohms
Bourns Inc. PWR6327W1502JE	0.272 in	0.626 in	6.9 mm	15.9 mm	0.268 "	6.8 mm	Current Sense Moisture Resistant Non-Inductive Pulse Withstanding	-55 C	275 °C	2	3 W	Wirewound	6327 J-Lead	20 ppm/°C	5 %	15 kOhms
Bourns Inc. PWR6327W6800JE	0.272 in	0.626 in	6.9 mm	15.9 mm	0.268 "	6.8 mm	Current Sense Moisture Resistant Non-Inductive Pulse Withstanding	-55 C	275 °C	2	3 W	Wirewound	6327 J-Lead	20 ppm/°C	5 %	680 Ohms
