895-124 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 124POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Color	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Read Out	Pitch	Pitch	Number of Positions/Bay/Row	Flange Feature	Gender	Card Type	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Termination	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 895-124-520-208	2	Polyphenylene Sulfide (PPS)	Black	2	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Through Hole	Dual	0.1 "	2.54 mm	62	4-40 Flush Mount Threaded Insert Top Opening	Female	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Solder	124
EDAC Inc. 895-124-525-512	2	Polyphenylene Sulfide (PPS)	Black	2	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Through Hole	Dual	0.1 "	2.54 mm	62	Side Mount Opening Unthreaded	Female	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Solder	124	0.128 "	3.25 mm
EDAC Inc. 895-124-560-204	2	Polyphenylene Sulfide (PPS)	Black	2	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Board Edge Straddle Mount	Dual	0.1 "	2.54 mm	62	Flush Mount Top Opening Unthreaded	Female	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Solder	124	0.156 "	3.96 mm	Card Extender

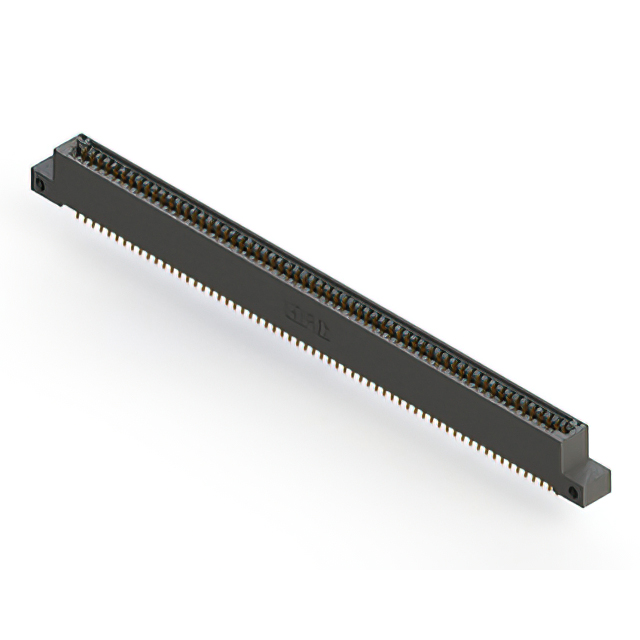

EDAC Inc. 895-124-556-212	2	Polyphenylene Sulfide (PPS)	Black	2	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Board Edge Straddle Mount	Dual	0.1 "	2.54 mm	62	Flush Mount Side Opening Unthreaded	Female	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Solder	124	0.128 "	3.25 mm	Card Extender
EDAC Inc. 895-124-560-808	2	Polyphenylene Sulfide (PPS)	Black	2	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Board Edge Straddle Mount	Dual	0.1 "	2.54 mm	62	4-40 Threaded Insert Top Mount Opening	Female	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Solder	124			Card Extender
EDAC Inc. 895-124-523-201	2	Polyphenylene Sulfide (PPS)	Black	2	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Through Hole	Dual	0.1 "	2.54 mm	62		Female	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Solder	124
EDAC Inc. 895-124-560-508	2	Polyphenylene Sulfide (PPS)	Black	2	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Board Edge Straddle Mount	Dual	0.1 "	2.54 mm	62	4-40 Threaded Insert Top Mount Opening	Female	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Solder	124			Card Extender
EDAC Inc. 895-124-542-508	2	Polyphenylene Sulfide (PPS)	Black	2	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Through Hole	Dual	0.1 "	2.54 mm	62	4-40 Threaded Insert Top Mount Opening	Female	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Wire Wrap	124
EDAC Inc. 895-124-558-503	2	Polyphenylene Sulfide (PPS)	Black	2	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Right Angle Through Hole	Dual	0.1 "	2.54 mm	62	Floating Bobbin Top Mount Opening	Female	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Solder	124	0.116 "	2.95 mm
EDAC Inc. 895-124-555-808	2	Polyphenylene Sulfide (PPS)	Black	2	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Board Edge Straddle Mount	Dual	0.1 "	2.54 mm	62	4-40 Threaded Insert Top Mount Opening	Female	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Solder	124			Card Extender
