6302UE Series

Catalog

CABLE 4COND 18AWG NATURAL

Part	Length	Length	Conductor Material	Usage	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Ratings	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Features	Jacket Color	Number of Conductors	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Voltage	Conductor Strand [custom]	Conductor Strand [custom]

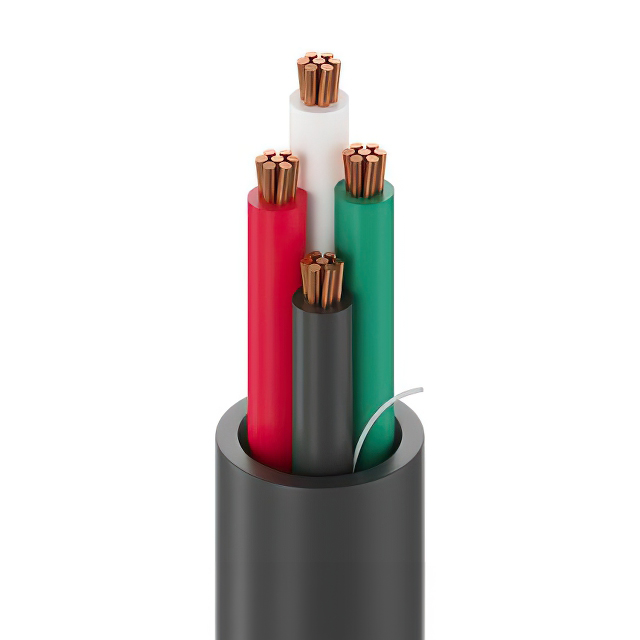

Belden Inc. 6302UE 877U500	152.4 m	500 ft	Copper Bare	Alarm Security Sound	0.381 mm	0.015 in	UL Style CMP	Low Smoke Poly-Vinyl Chloride (LSPVC)	18 AWG	4.57 mm	0.18 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Rip Cord	Natural	4	75 ░C	-10 °C	Multi-Conductor
Belden Inc. 6302UE 0101000	304.8 m	1000 ft	Copper Bare	Security Sound	0.381 mm	0.015 in	UL Style CMP	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	18 AWG	4.57 mm	0.18 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Rip Cord	Black	4	75 ░C	-10 °C	Multi-Conductor	300 VDC	26 AWG	7
Belden Inc. 6302UE 004U1000	304.8 m	1000 ft	Copper Bare	Security Sound	0.381 mm	0.015 in	UL Style CMP	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	18 AWG	4.57 mm	0.18 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Rip Cord	Yellow	4	75 ░C	-10 °C	Multi-Conductor	300 VDC	26 AWG	7

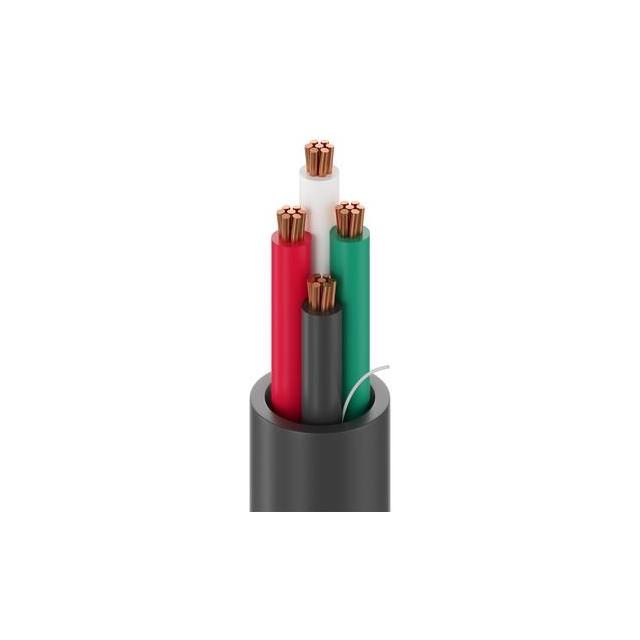

Belden Inc. 6302UE 877U1000	304.8 m	1000 ft	Copper Bare	Security Sound	0.381 mm	0.015 in	UL Style CMP	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	18 AWG	4.57 mm	0.18 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Rip Cord	Natural	4	75 ░C	-10 °C	Multi-Conductor	300 VDC	26 AWG	7
Belden Inc. 6302UE 0041000	304.8 m	1000 ft	Copper Bare	Security Sound	0.381 mm	0.015 in	UL Style CMP	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	18 AWG	4.57 mm	0.18 in	Low Smoke Poly-Vinyl Chloride (LSPVC)	Rip Cord	Yellow	4	75 ░C	-10 °C	Multi-Conductor	300 VDC	26 AWG	7
