XCL223 Series

Catalog

0.4A/0.7A INDUCTOR BUILT-IN STEP

Part	Package / Case	Mounting Type	Supplier Device Package	Applications	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1	Efficiency	Features	Control Features	Type	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]

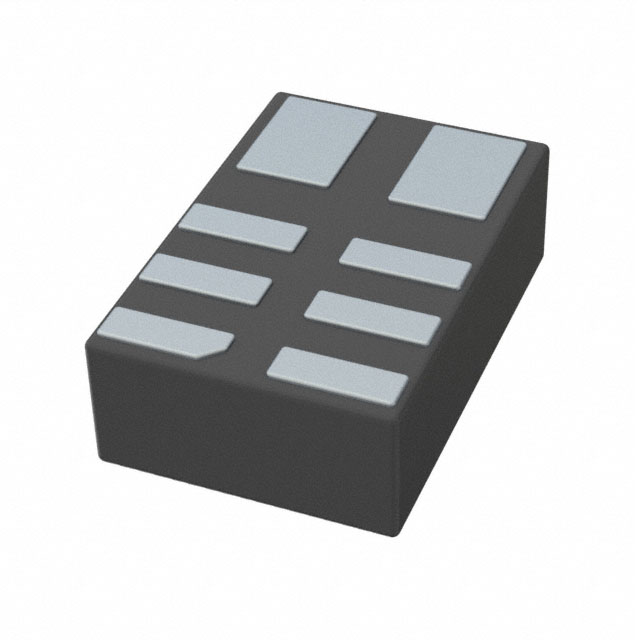

Torex Semiconductor Ltd XCL223B1H3D2-G	8-PowerWFDFN Module	Surface Mount	USP-8B04
Torex Semiconductor Ltd XCL223B083D2-G	8-PowerWFDFN Module	Surface Mount	USP-8B04
Torex Semiconductor Ltd XCL223B193D2-G	8-PowerWFDFN Module	Surface Mount	USP-8B04
Torex Semiconductor Ltd XCL223B303D2-G	8-PowerWFDFN Module	Surface Mount	USP-8B04
Torex Semiconductor Ltd XCL223B243D2-G	8-PowerWFDFN Module	Surface Mount	USP-8B04
Torex Semiconductor Ltd XCL223B143D2-G	8-PowerWFDFN Module	Surface Mount	USP-8B04
Torex Semiconductor Ltd XCL223B283D2-G	8-PowerWFDFN Module	Surface Mount	USP-8B04
Torex Semiconductor Ltd XCL223B1C3D2-G	8-PowerWFDFN Module	Surface Mount	USP-8B04
Torex Semiconductor Ltd XCL223B323D2-G	8-PowerWFDFN Module	Surface Mount	USP-8B04
Torex Semiconductor Ltd XCL223A333D2-G	8-PowerWFDFN Module	Surface Mount	USP-8B04	ITE (Commercial)	700 mA	0.03 in	0.06 in	0.09 "	2.3 mm	1.5 mm	0.8 mm	2.5 V	1	3.3 V	88 %	OCP OTP SCP UVLO	Active High Enable	Non-Isolated PoL Module	5.5 V	-40 °C	105 ░C
