SCP7PT78 Series

Catalog

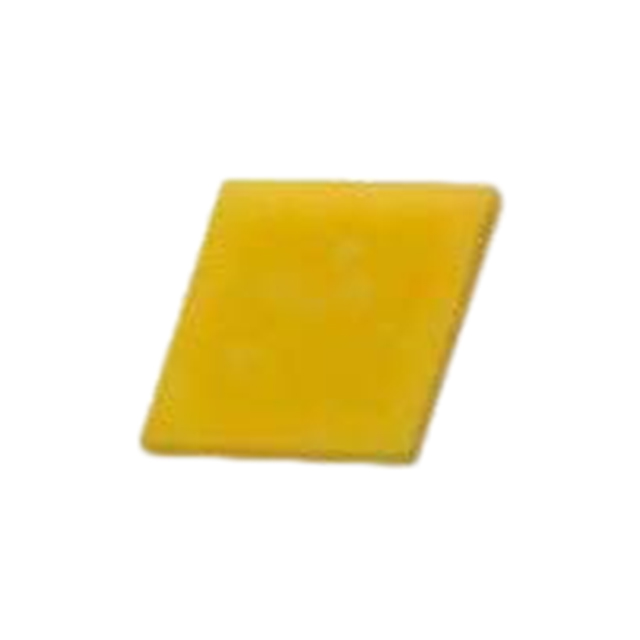

LED LM101B COOL WHITE 6500K SMD

Part	Thermal Resistance of Package	Lumens/Watt @ Current - Test	Current - Test	Current - Max [Max]	Viewing Angle	CCT (K)	Supplier Device Package	Mounting Type	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Voltage - Forward (Vf) (Typ)	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Package / Case
Samsung Semiconductor, Inc. SCP7PT78HEL1PUS06E	2 °C/W	192 lm/W	65 mA	350 mA	120 °	6500 K	SMD	Surface Mount	70	33 lm	37 lm	35 lm	0.018 "	0.45 mm	Cool White	0.067 in	0.067 in	1.7 mm	1.7 mm	0606 (1616 Metric)	2.8 V
Samsung Semiconductor, Inc. SCP7PT78HPL1PLS06E	2 °C/W	149 lm/W	150 mA	450 mA	150 °	6500 K	SMD	Surface Mount	70				0.017 "	0.42 mm	Cool White			0.046 in 1.18 mm	0.046 in 1.18 mm	0505	2.9 V	71 lm	59 lm	1313
