LED96W Series

Catalog

LED DRIVER CC AC/DC 54-92V 1.05A

Part	Mounting Type	Weight	Weight	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Termination Style	Topology	Features	Efficiency	Power (Watts)	Approval Agency	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Type	Ratings	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Dimming

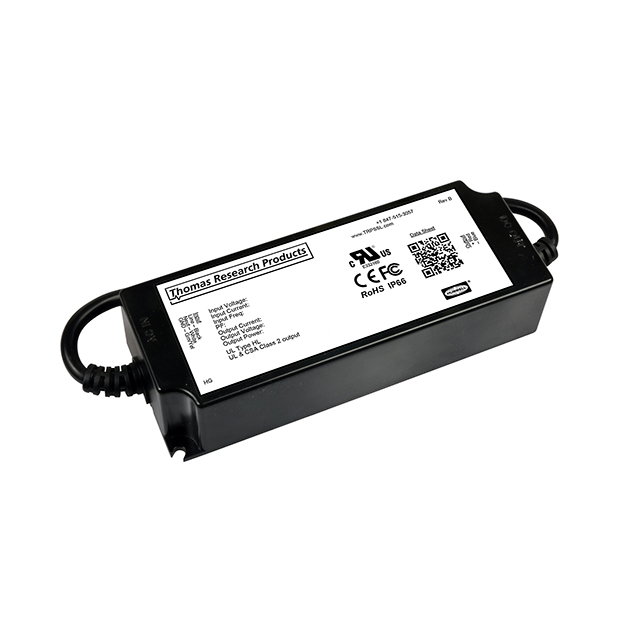

Thomas Research Products LED96W-092-C1050-LT	Chassis Mount	0.687 lb	311.62 g	1.05 A	100 VAC	305 VAC	Wire Leads	AC DC Converter	OCP OVP SCP	92 %	96 W	CE cURus	1	92 V	54 V	Constant Current	IP66 NEMA 4	61 mm	38 mm	2.4 in	6.34 in	1.5 in	161 mm	ELV TRIAC
