1071-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

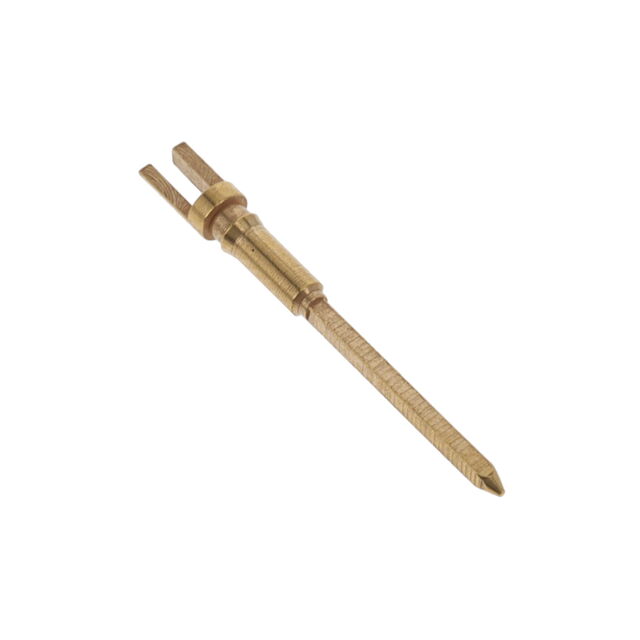

CONN PC PIN CIRC .072DIA TINLEAD
| Part | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Terminal Style | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Insulation | Contact Material | Contact Finish | Length - Above Flange [custom] | Length - Above Flange [custom] | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | PC Pin | Single End Slotted | Press-Fit Wire Wrap | 1.45 mm | 0.057 in | Non-Insulated | Brass Alloy | Tin-Lead | 0.125 in | 3.18 mm | 0.072 " | 1.83 mm | 1.83 mm | 0.072 in | 0.535 " | 13.59 mm | Through Hole | 0.66 in | 16.76 mm |
Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | PC Pin | Press-Fit Wire Wrap | 1.45 mm | 0.057 in | Non-Insulated | Brass Alloy | Tin | 0.072 " | 1.83 mm | 0.535 " | 13.59 mm | Through Hole | 0.66 in | 16.76 mm | |||||
 Mill-Max Manufacturing Corp. | 10 Áin | 0.25 Ám | PC Pin | Single End Slotted | Press-Fit Wire Wrap | 1.45 mm | 0.057 in | Non-Insulated | Brass Alloy | Gold | 0.125 in | 3.18 mm | 0.072 " | 1.83 mm | 1.83 mm | 0.072 in | 0.535 " | 13.59 mm | Through Hole | 0.66 in | 16.76 mm |
