2823342 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

8P,2MM,SHRD HDR,DRVT,2.8,0.38AU,

Part	Contact Finish - Mating	Insulation Color	Contact Material	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Current Rating (Amps)	Number of Rows	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Connector Type	Contact Length - Mating	Contact Length - Mating	Insulation Height [custom]	Insulation Height [custom]	Shrouding	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Contact Finish - Post	Termination	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating

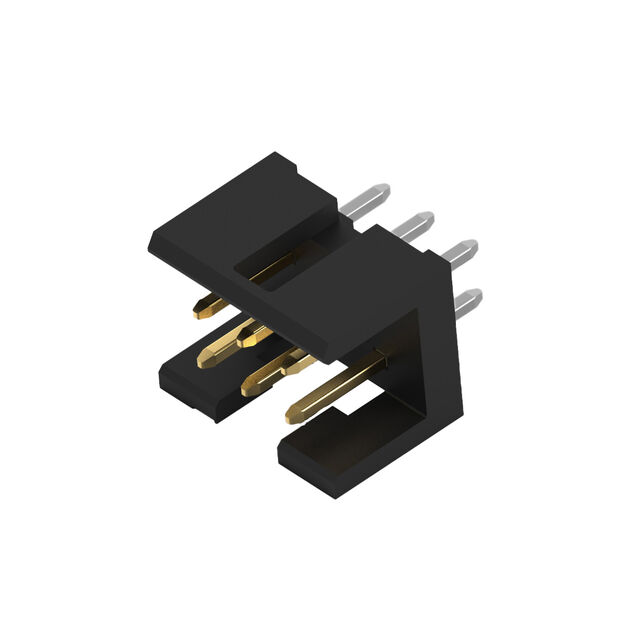

TE Connectivity Raychem Cable Protection 2823342-8	Gold	Black	Phosphor Bronze	Through Hole	0.079 in	2 mm	Male Pin	2 A	2	Thermoplastic	157.5 Áin	4 Ám	Square	Header	4 mm	0.157 in	5.51 mm	0.217 in	Shrouded - 2 Wall	All	0.11 in	2.8 mm	0.079 in	2 mm	Detent Lock	Tin	Solder	UL94 V-0	125 °C	-40 °C	8	15 µin	0.38 µm	125 VAC
TE Connectivity Raychem Cable Protection 4-2823342-0	Gold	Black	Phosphor Bronze	Through Hole	0.079 in	2 mm	Male Pin	2 A	2	Thermoplastic	157.5 Áin	4 Ám	Square	Header	4 mm	0.157 in	5.51 mm	0.217 in	Shrouded - 2 Wall	All	0.11 in	2.8 mm	0.079 in	2 mm	Detent Lock	Tin	Solder	UL94 V-0	125 °C	-40 °C	40	15 µin	0.38 µm	125 VAC
TE Connectivity Raychem Cable Protection 3-2823342-0	Gold	Black	Phosphor Bronze	Through Hole	0.079 in	2 mm	Male Pin	2 A	2	Thermoplastic	157.5 Áin	4 Ám	Square	Header	4 mm	0.157 in	5.51 mm	0.217 in	Shrouded - 2 Wall	All	0.11 in	2.8 mm	0.079 in	2 mm	Detent Lock	Tin	Solder	UL94 V-0	125 °C	-40 °C	30	15 µin	0.38 µm	125 VAC
TE Connectivity Raychem Cable Protection 2823342-4	Gold	Black	Phosphor Bronze	Through Hole	0.079 in	2 mm	Male Pin	2 A	2	Thermoplastic	157.5 Áin	4 Ám	Square	Header	4 mm	0.157 in	5.51 mm	0.217 in	Shrouded - 2 Wall	All	0.11 in	2.8 mm	0.079 in	2 mm	Detent Lock	Tin	Solder	UL94 V-0	125 °C	-40 °C	4	15 µin	0.38 µm	125 VAC

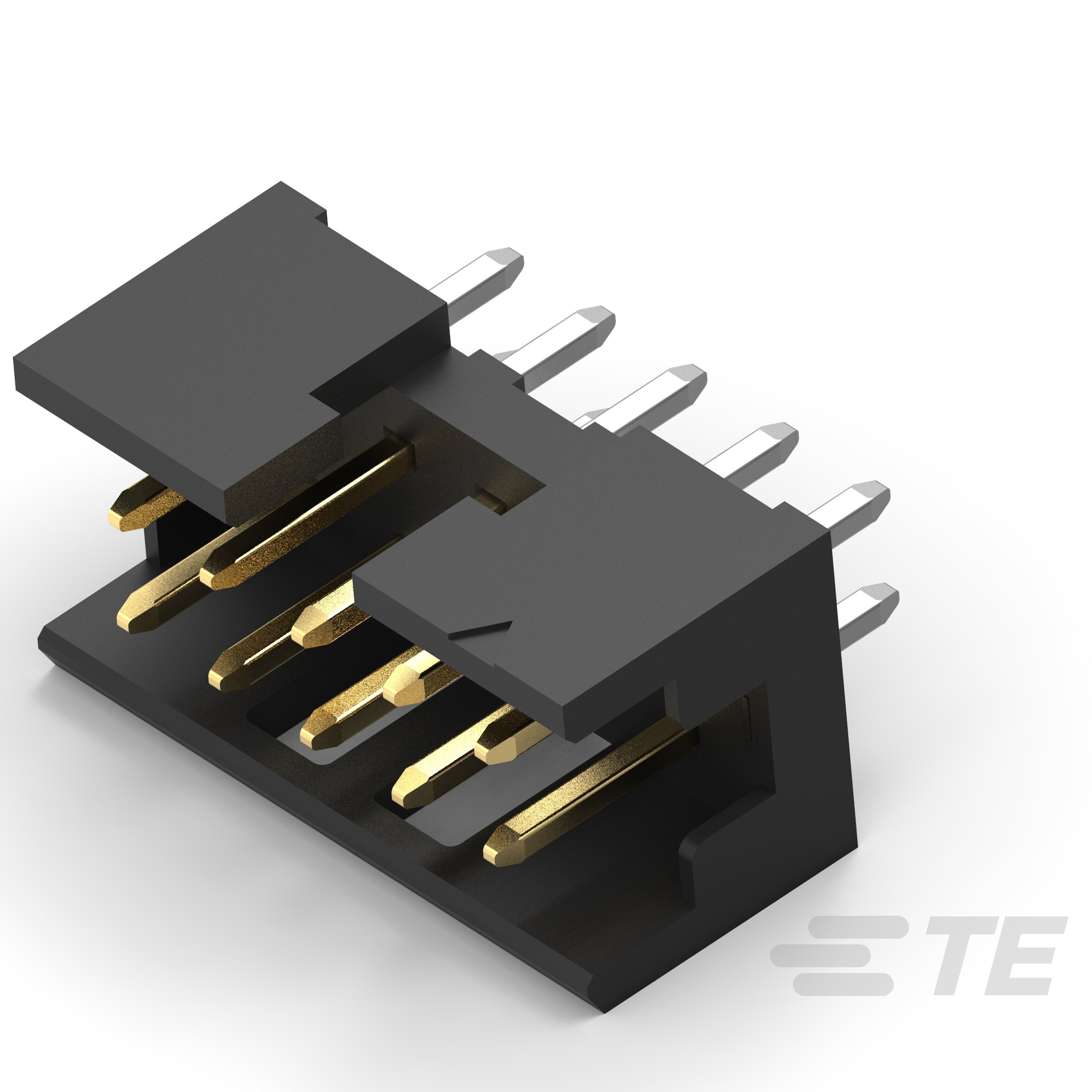

TE Connectivity Raychem Cable Protection 1-2823342-0	Gold	Black	Phosphor Bronze	Through Hole	0.079 in	2 mm	Male Pin	2 A	2	Thermoplastic	157.5 Áin	4 Ám	Square	Header	4 mm	0.157 in	5.51 mm	0.217 in	Shrouded - 2 Wall	All	0.11 in	2.8 mm	0.079 in	2 mm	Detent Lock	Tin	Solder	UL94 V-0	125 °C	-40 °C	10	15 µin	0.38 µm	125 VAC
TE Connectivity Raychem Cable Protection 1-2823342-4	Gold	Black	Phosphor Bronze	Through Hole	0.079 in	2 mm	Male Pin	2 A	2	Thermoplastic	157.5 Áin	4 Ám	Square	Header	4 mm	0.157 in	5.51 mm	0.217 in	Shrouded - 2 Wall	All	0.11 in	2.8 mm	0.079 in	2 mm	Detent Lock	Tin	Solder	UL94 V-0	125 °C	-40 °C	14	15 µin	0.38 µm	125 VAC
TE Connectivity Raychem Cable Protection 1-2823342-2	Gold	Black	Phosphor Bronze	Through Hole	0.079 in	2 mm	Male Pin	2 A	2	Thermoplastic	157.5 Áin	4 Ám	Square	Header	4 mm	0.157 in	5.51 mm	0.217 in	Shrouded - 2 Wall	All	0.11 in	2.8 mm	0.079 in	2 mm	Detent Lock	Tin	Solder	UL94 V-0	125 °C	-40 °C	12	15 µin	0.38 µm	125 VAC
TE Connectivity Raychem Cable Protection 2823342-6	Gold	Black	Phosphor Bronze	Through Hole	0.079 in	2 mm	Male Pin	2 A	2	Thermoplastic	157.5 Áin	4 Ám	Square	Header	4 mm	0.157 in	5.51 mm	0.217 in	Shrouded - 2 Wall	All	0.11 in	2.8 mm	0.079 in	2 mm	Detent Lock	Tin	Solder	UL94 V-0	125 °C	-40 °C	6	15 µin	0.38 µm	125 VAC
