VJD2UTTB Series
Manufacturer: Carling Technologies
Beta
⌘K

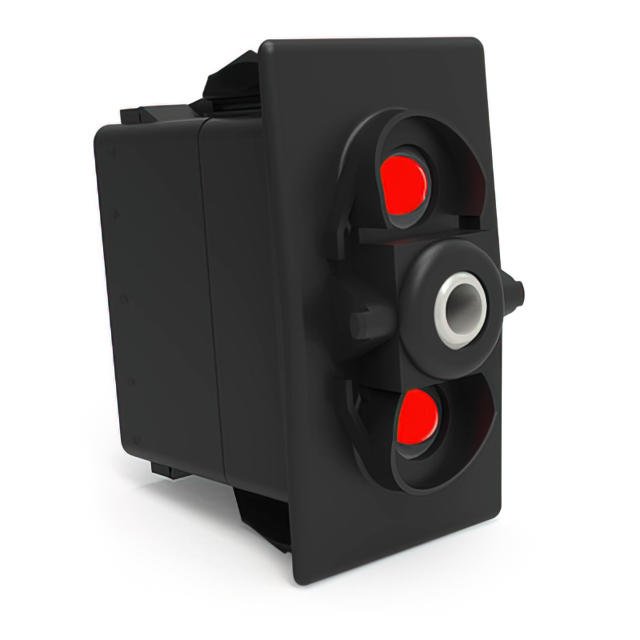

SWITCH ROCKER DPDT 20A 12V
| Part | Electrical Life | Mechanical Life | Circuit | Illumination Voltage (Nominal) | Ingress Protection | Approval Agency | Illumination Type, Color | Mounting Type | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage Rating - DC | Current Rating (Amps) | Termination Style | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 100000 Cycles | 100000 Cycles | DPDT | 12 VDC | IP66 IP68 | CSA UL VDE | LED Red/Red | Panel Mount Snap-In | Varies by Cap | 36.83 mm | 21.08 mm | 12 V | 20 A | Quick Connect - 0.250" (6.3mm) | Actuator Arm Cap Required Illuminated | 85 °C | -40 C | On-Off-On | |
 Carling Technologies | 100000 Cycles | 100000 Cycles | DPDT | 12 VDC | IP66 IP68 | CSA UL VDE | LED Red/Red | Panel Mount Snap-In | High Beam - Low Beam Vertical | 36.83 mm | 21.08 mm | 12 V | 20 A | Quick Connect - 0.250" (6.3mm) | Convex (Reverse V) - Illuminated | 85 °C | -40 C | On-Off-On | Black |
