83318E Series
Manufacturer: Belden Inc.
Beta
⌘K

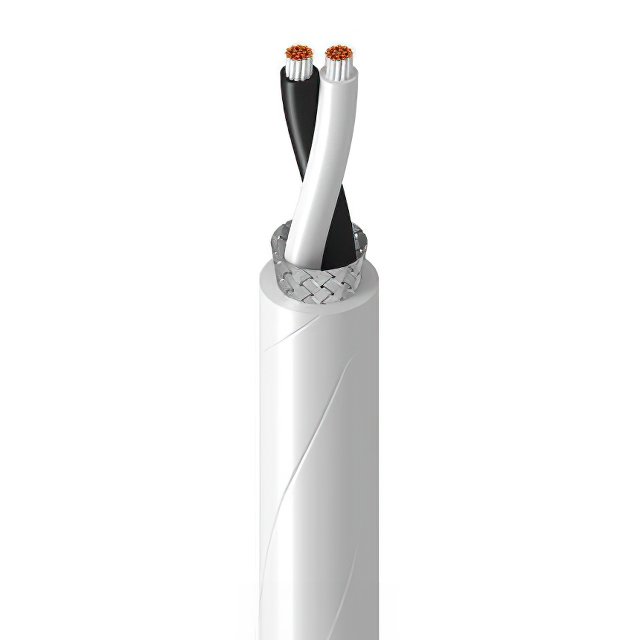

CABLE 2COND 24AWG WHT SHLD
| Part | Shield Coverage | Shield Material | Number of Conductors | Jacket Color | Qualification | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length | Length | Conductor Material | Wire Gauge | Shield Type | Jacket (Insulation) Material | Conductor Insulation | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Silver Coated | 2 | White | MIL-W-16878/4 Type E | 0.279 mm | 0.011 " | -65 ░C | 200 °C | 3.33 mm | 0.131 in | Multi-Conductor | 304.8 m | 1000 ft | Copper Silver Coated | 24 AWG | Braid | Tetrafluoroethylene (TFE) | Tetrafluoroethylene (TFE) | 600 V | ||
 Belden Inc. | 85 % | Copper Silver Coated | 2 | White | MIL-W-16878/4 Type E | 0.279 mm | 0.011 " | -65 ░C | 200 °C | 3.33 mm | 0.131 in | Multi-Conductor | 152.4 m | 500 ft | Copper Silver Coated | 24 AWG | Braid | Tetrafluoroethylene (TFE) | Tetrafluoroethylene (TFE) | 600 V | ||
 Belden Inc. | 85 % | Copper Silver Coated | 2 | White | 0.279 mm | 0.011 " | -65 ░C | 200 °C | 3.33 mm | 0.131 in | Multi-Conductor | Copper Silver Coated | 24 AWG | Braid | Tetrafluoroethylene (TFE) | Fluorinated Ethylene-Propylene (FEP) | 100 ft | 30.5 m |
