215348 Series

Manufacturer: Molex

Catalog

SQUBA 3.6 M-S 75MM 18 AWG

Part	Color	Contact End	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length [x]	Length [x]	Number of Conductors	Number of Rows	Wire Gauge	Length	Length
Molex 2153482111	Red	Pin to Cable (Round)	2.54 µm	100 µin	Tin	2.95 in	75 mm	1	1	18 AWG
Molex 2153482103	Red	Pin to Cable (Round)	2.54 µm	100 µin	Tin	8.86 in	225 mm	1	1	20 AWG

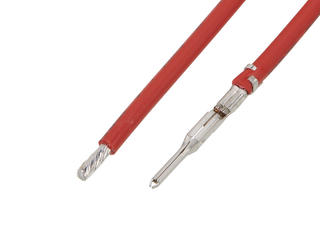

Molex 2153482102	Red	Pin to Cable (Round)	2.54 µm	100 µin	Tin			1	1	20 AWG	5.91 in	150 mm
Molex 2153481121	Black	Pin to Cable (Round)	2.54 µm	100 µin	Tin	2.95 in	75 mm	1	1	16 AWG

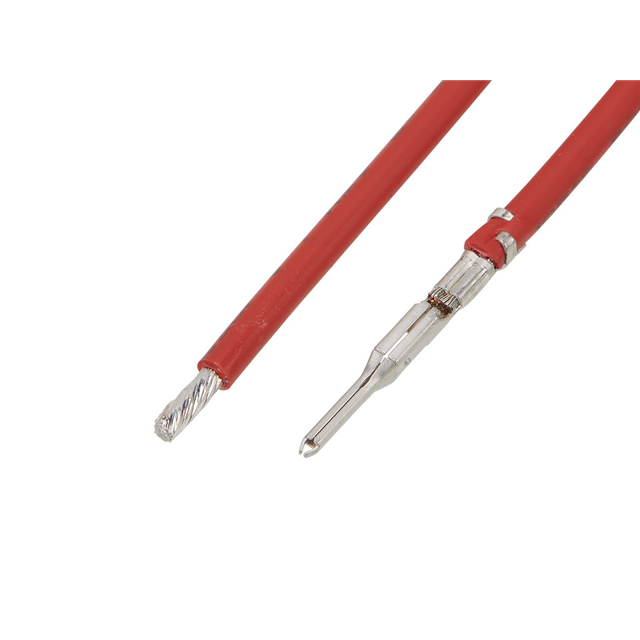

Molex 2153482122	Red	Pin to Cable (Round)	2.54 µm	100 µin	Tin			1	1	16 AWG	5.91 in	150 mm
Molex 2153482114	Red	Pin to Cable (Round)	2.54 µm	100 µin	Tin			1	1	18 AWG	11.8 in	300 mm
Molex 2153481112	Black	Pin to Cable (Round)	2.54 µm	100 µin	Tin			1	1	18 AWG	5.91 in	150 mm
Molex 2153481125	Black	Pin to Cable (Round)	2.54 µm	100 µin	Tin	17.7 in	450 mm	1	1	16 AWG
Molex 2153482123	Red	Pin to Cable (Round)	2.54 µm	100 µin	Tin	8.86 in	225 mm	1	1	16 AWG
Molex 2153482113	Red	Pin to Cable (Round)	2.54 µm	100 µin	Tin	8.86 in	225 mm	1	1	18 AWG
