SLE65S1203 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 65W

Part	Region Utilized	Current - Output (Max) [Max]	Voltage - Output	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Form	Cord Length	Cord Length	Applications	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector [diameter]	Output Connector [x]	Output Connector	Power (Watts)	Input Type	Efficiency

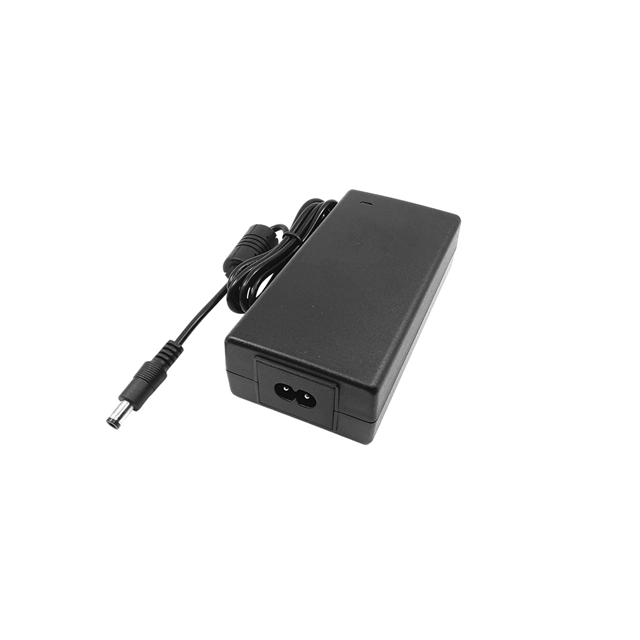

SL POWER / Advanced Energy SLE65S1203N01	International	5.4 A	12 V	CB CCC CE CSA cULus cURus GS KC TUV UL	4.92 in	1.34 "	62 mm	125 mm	34 mm	2.44 "	Desktop (Class II)	1.5 m	59 in	ITE (Commercial) Medical	IEC 320-C8	264 VAC	90 VAC	60601-1; 62368-1	40 °C	0 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	65 W	Cord (Sold Separately)	CoC Tier 2 Level VI
SL POWER / Advanced Energy SLE65S1203F01	International	5.4 A	12 V	CB CCC CE CSA cULus cURus GS KC TUV UL	4.92 in	1.34 "	62 mm	125 mm	34 mm	2.44 "	Desktop (Class I) Desktop (Class II)	1.5 m	59 in	ITE (Commercial) Medical	IEC 320-C14 IEC 320-C18 IEC 320-C6	264 VAC	90 VAC	60601-1; 62368-1	40 °C	0 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	65 W	Cord (Sold Separately)	CoC Tier 2 Level VI
