PPPC392 Series

Catalog

CONN HDR 78POS 0.1 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Shape	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Mounting Type	Contact Type	Connector Type	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Number of Rows [custom]	Material Flammability Rating	Contact Finish Thickness - Mating	Insulation Color	Fastening Type	Number of Positions Loaded	Termination	Insulation Height

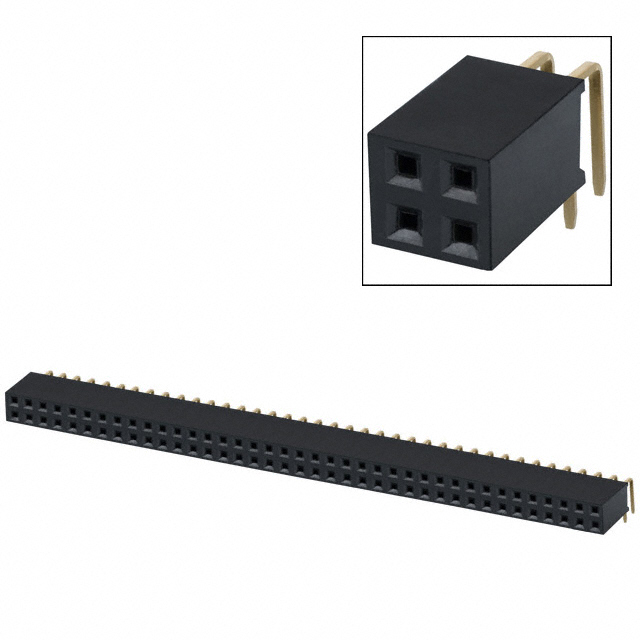

Sullins Connector Solutions PPPC392LJBN-RC	Flash	Phosphor Bronze	Polyester	Square	250 V	-40 C	105 ░C	Gold	Right Angle Through Hole	Female Socket	Header	0.2 in	5.08 mm	3 A	0.124 in	3.15 mm	0.1 "	2.54 mm	Gold	0.1 in	2.54 mm	78	2	UL94 V-0	Flash	Black	Push-Pull	All	Solder

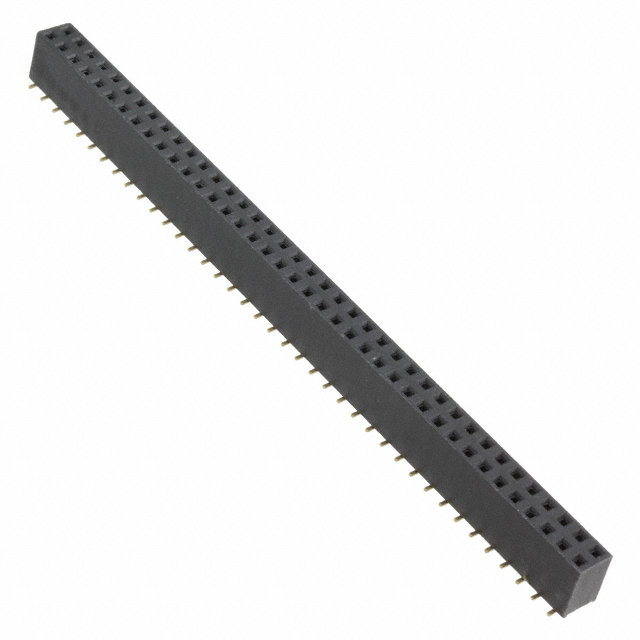

Sullins Connector Solutions PPPC392KFMS	Flash	Phosphor Bronze	Polyester	Square	250 V	-40 C	125 °C	Gold	Surface Mount	Female Socket	Header	0.299 "		3 A			0.1 "	2.54 mm	Gold	0.1 in	2.54 mm	78	2	UL94 V-0	Flash	Black	Push-Pull	All	Solder	7.6 mm
