3313 Series
Manufacturer: Bourns Inc.
Beta
⌘K

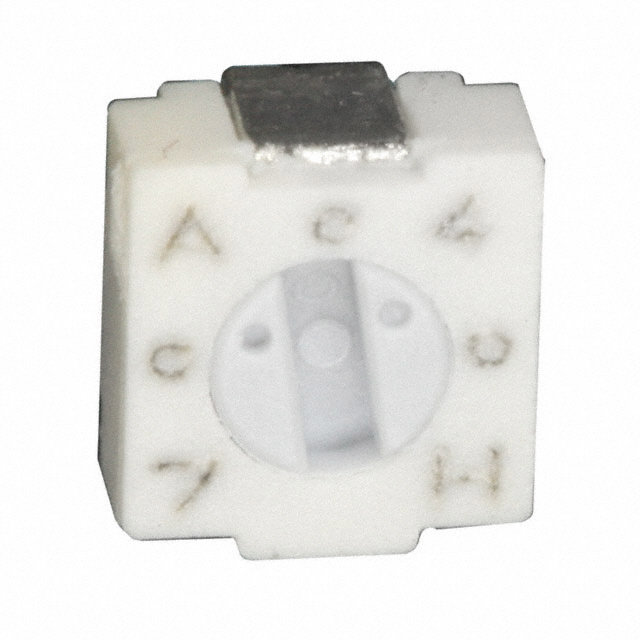

TRIMMER RESISTORS - SMD 3MM TRIM POT 10K SMD SEALED
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Temperature Coefficient | Tolerance | Mounting Type | Power (Watts) | Power (Watts) | Resistance | Resistive Material | Termination Style | Number of Turns | Adjustment Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 3.5 mm | 0.126 " | 3.2 mm | 0.138 " | 100 ppm/°C | 20 % | Surface Mount | 0.125 W | 0.125 W | 10000 Ohms | Cermet | J Lead | 1 | Top Adjustment |
 Bourns Inc. | 3.61 mm | 0.159 in | 4.05 mm | 0.142 in | 150 ppm/°C | 20 % | Surface Mount | 0.125 W | 0.125 W | 100 Ohms | Cermet | J Lead | 1 | Side Adjustment |
 Bourns Inc. | 3.5 mm | 0.126 " | 3.2 mm | 0.138 " | 150 ppm/°C | 20 % | Surface Mount | 0.125 W | 0.125 W | 100 Ohms | Cermet | J Lead | 1 | Top Adjustment |
 Bourns Inc. | 3.5 mm | 0.126 " | 3.2 mm | 0.138 " | 100 ppm/°C | 20 % | Surface Mount | 0.125 W | 0.125 W | 200000 Ohms | Cermet | J Lead | 1 | Top Adjustment |
 Bourns Inc. | 3.5 mm | 0.126 " | 3.2 mm | 0.138 " | 100 ppm/°C | 20 % | Surface Mount | 0.125 W | 0.125 W | 5 kOhms | Cermet | J Lead | 1 | Top Adjustment |
 Bourns Inc. | 3.5 mm | 0.126 " | 3.2 mm | 0.138 " | 100 ppm/°C | 20 % | Surface Mount | 0.125 W | 0.125 W | 1000 Ohms | Cermet | J Lead | 1 | Top Adjustment |
Bourns Inc. | 3.5 mm | 0.126 " | 3.2 mm | 0.138 " | 100 ppm/°C | 20 % | Surface Mount | 0.125 W | 0.125 W | 0.5 kOhms | Cermet | J Lead | 1 | Top Adjustment |
