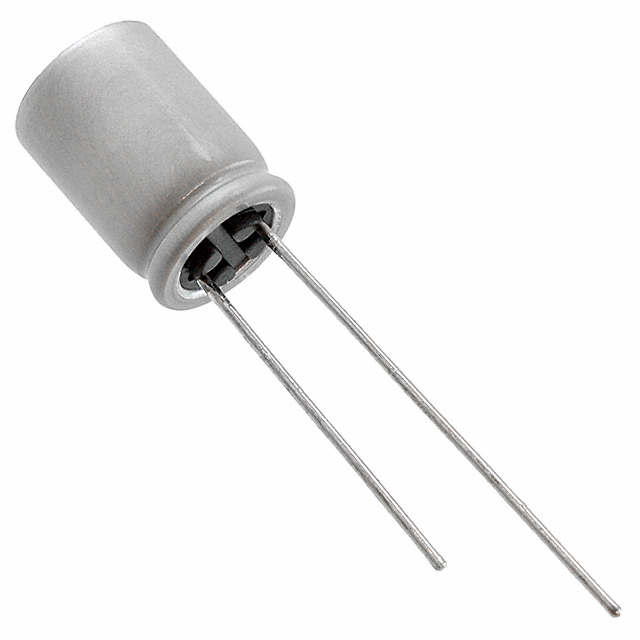

20SEP Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUMINUM POLYMER 68UF 20VDC 20%( 10 X 8MM) RADIAL 5MM 0.04 OHM 2.4A 3000H 105°C BULK

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lead Spacing	Lead Spacing	Tolerance	Capacitance	Ripple Current @ Low Frequency	Mounting Type	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Ripple Current @ High Frequency	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Panasonic Electronic Components 20SEP68M	0.394 in	10 mm	Can Radial	0.197 "	5 mm	20 %	68 µF	120 mA	Through Hole	40 mOhm	-55 C	105 ░C	General Purpose	20 V	8 mm	0.315 in	3000 Hrs	2.4 A	Polymer
Panasonic Electronic Components 20SEP56M+T	0.394 in	10 mm	Can Radial	0.197 "	5 mm	20 %	56 µF	120 mA	Through Hole	40 mOhm	-55 C	105 ░C	General Purpose	20 V	8 mm	0.315 in	3000 Hrs	2.4 A	Polymer
Panasonic Electronic Components 20SEP150M	0.394 in	10 mm	Can Radial	0.197 "	5 mm	20 %	150 µF	216 mA	Through Hole	20 mOhms	-55 C	105 ░C	General Purpose	20 V			3000 Hrs	4.32 A	Polymer	0.512 "	13 mm
Panasonic Electronic Components 20SEP47M+TSS	0.315 in	8 mm	Can Radial	0.138 in	3.5 mm	20 %	47 µF	94.5 mA	Through Hole	45 mOhm	-55 C	105 ░C	General Purpose	20 V	7 mm	0.276 in	3000 Hrs	1.89 A	Polymer
Panasonic Electronic Components 20SEP22M	0.248 "	6.3 mm	Can Radial	0.098 in	2.5 mm	20 %	22 µF	72.5 mA	Through Hole	60 mOhms	-55 C	105 ░C	General Purpose	20 V		0.236 "	3000 Hrs	1.45 A	Polymer			6 mm
Panasonic Electronic Components 20SEP22M+TSS	0.248 "	6.3 mm	Can Radial	0.098 in	2.5 mm	20 %	22 µF	72.5 mA	Through Hole	60 mOhms	-55 C	105 ░C	General Purpose	20 V		0.236 "	3000 Hrs	1.45 A	Polymer			6 mm
Panasonic Electronic Components 20SEP100M	0.315 in	8 mm	Can Radial	0.138 in	3.5 mm	20 %	100 µF	166 mA	Through Hole	24 mOhms	-55 C	105 ░C	General Purpose	20 V		0.472 in	3000 Hrs	3.32 A	Polymer			12 mm
Panasonic Electronic Components 20SEP56M	0.394 in	10 mm	Can Radial	0.197 "	5 mm	20 %	56 µF	120 mA	Through Hole	40 mOhm	-55 C	105 ░C	General Purpose	20 V	8 mm	0.315 in	3000 Hrs	2.4 A	Polymer
Panasonic Electronic Components 20SEP100M+TSS	0.315 in	8 mm	Can Radial	0.138 in	3.5 mm	20 %	100 µF	166 mA	Through Hole	24 mOhms	-55 C	105 ░C	General Purpose	20 V		0.472 in	3000 Hrs	3.32 A	Polymer			12 mm
Panasonic Electronic Components 20SEP68M+T	0.394 in	10 mm	Can Radial	0.197 "	5 mm	20 %	68 µF	120 mA	Through Hole	40 mOhm	-55 C	105 ░C	General Purpose	20 V	8 mm	0.315 in	3000 Hrs	2.4 A	Polymer
