630-M25 Series
Manufacturer: EDAC Inc.
Beta
⌘K
630M SERIES RIGHT ANGLE D-SUB
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Type | Number of Positions | Connector Style | Number of Rows [custom] | Features | Contact Type | Contact Finish | Termination | Material Flammability Rating | Current Rating (Amps) | Flange Feature | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

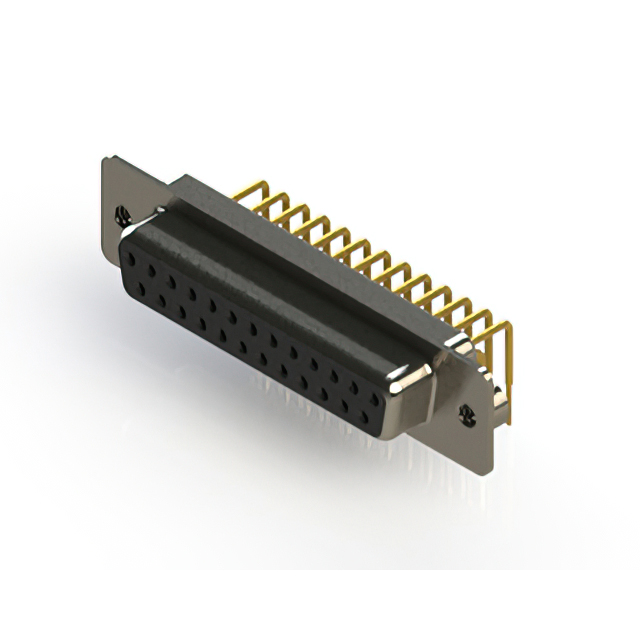

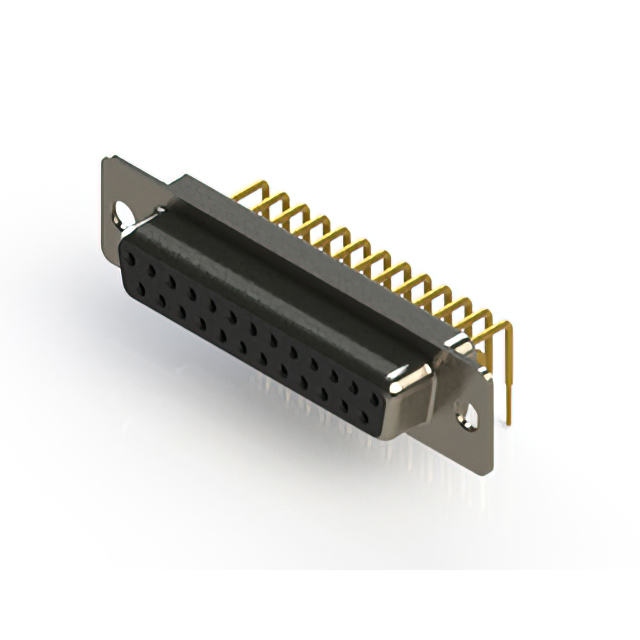

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Black | Copper Alloy | Right Angle Through Hole | B DB | 3 | Receptacle Female Sockets | 25 | D-Sub | 2 | Shielded | Signal | Gold | Solder | UL94 V-0 | 5 A | Housing/Shell (Unthreaded) | 9.4 mm | 0.37 in | 0.38 µm | 15 µin | ||

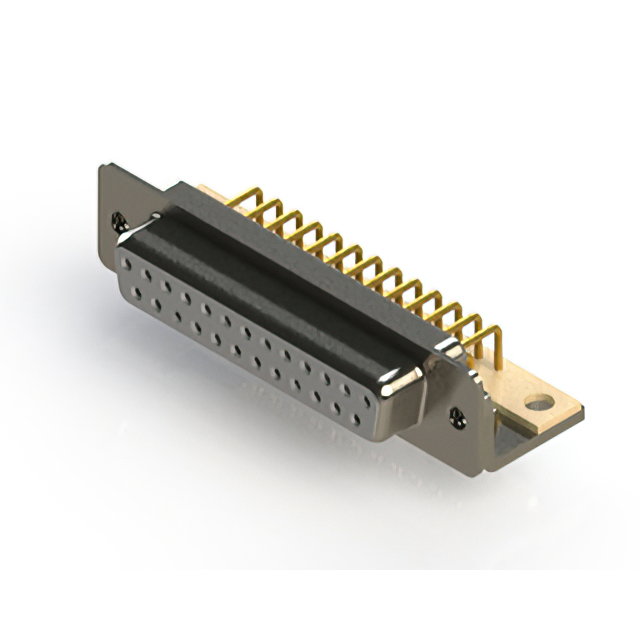

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | White | Copper Alloy | Right Angle Through Hole | B DB | 3 | Receptacle Female Sockets | 25 | D-Sub | 2 | Mounting Brackets Shielded | Signal | Gold | Solder | UL94 V-0 | 5 A | Housing/Shell | 9.4 mm | 0.37 in | 0.76 Ám | 30 Áin | Nickel Plated Steel | 4-40 |

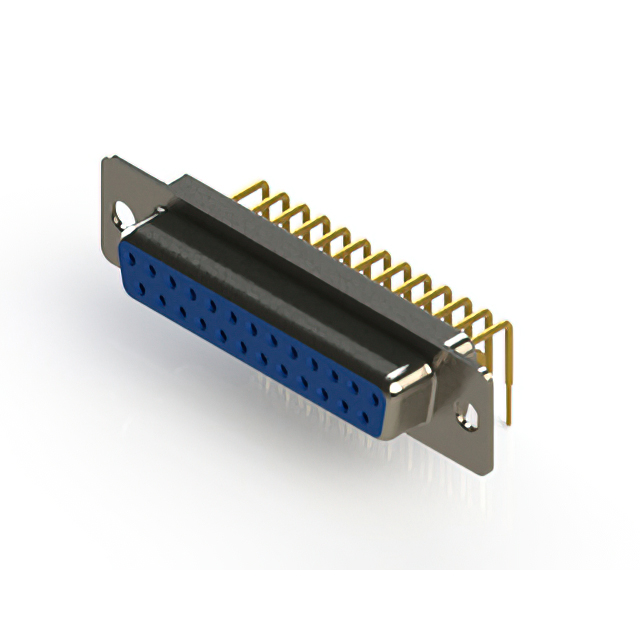

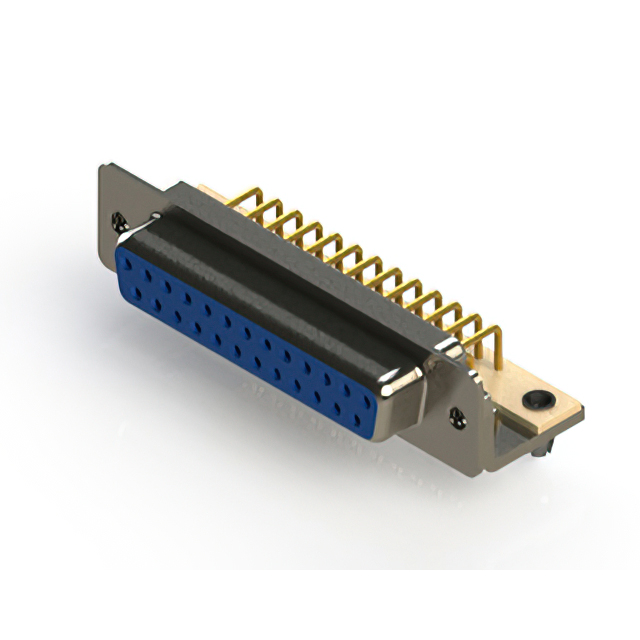

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Blue | Copper Alloy | Right Angle Through Hole | B DB | 3 | Receptacle Female Sockets | 25 | D-Sub | 2 | Board Lock Mounting Brackets Shielded | Signal | Gold | Solder | UL94 V-0 | 5 A | Housing/Shell | 9.4 mm | 0.37 in | 0.76 Ám | 30 Áin | Nickel Plated Steel | 4-40 |
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Blue | Copper Alloy | Right Angle Through Hole | B DB | 3 | Receptacle Female Sockets | 25 | D-Sub | 2 | Shielded | Signal | Gold | Solder | UL94 V-0 | 5 A | Housing/Shell (Unthreaded) | 9.4 mm | 0.37 in | 0.38 µm | 15 µin | Nickel Plated Steel | |

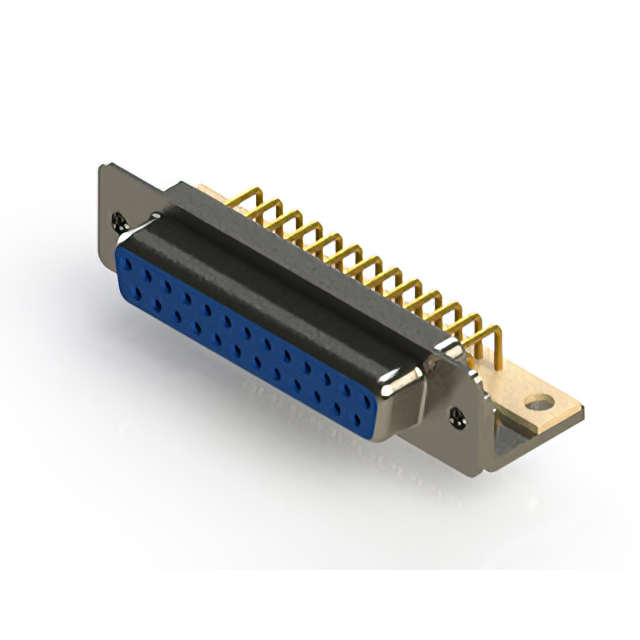

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Blue | Copper Alloy | Right Angle Through Hole | B DB | 3 | Receptacle Female Sockets | 25 | D-Sub | 2 | Mounting Brackets Shielded | Signal | Gold | Solder | UL94 V-0 | 5 A | 4-40 | 9.4 mm | 0.37 in | 0.38 µm | 15 µin | Nickel Plated Steel | |

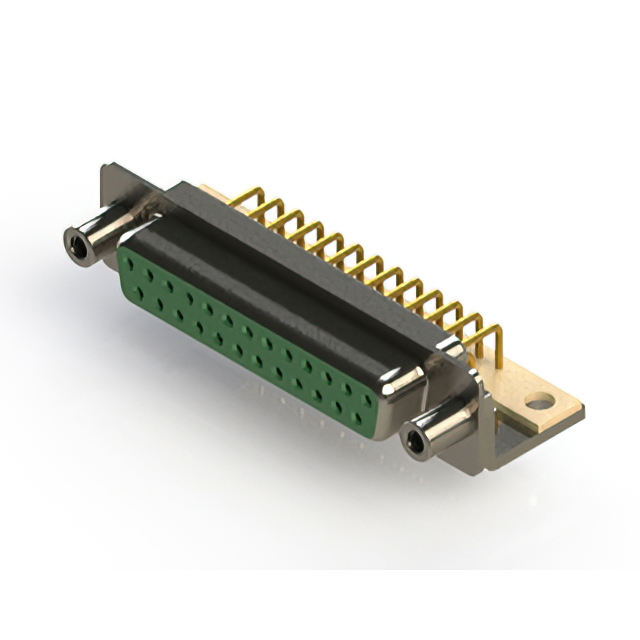

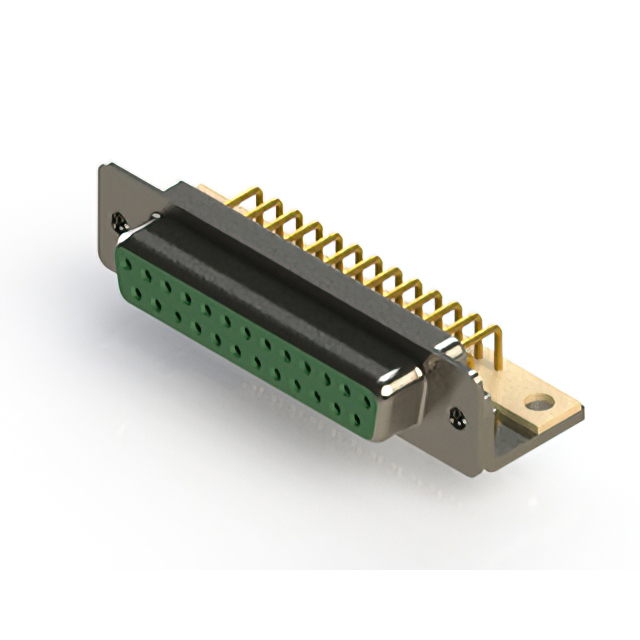

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Green | Copper Alloy | Right Angle Through Hole | B DB | 3 | Receptacle Female Sockets | 25 | D-Sub | 2 | Mounting Brackets Shielded | Signal | Gold | Solder | UL94 V-0 | 5 A | 4-40 | 9.4 mm | 0.37 in | 0.76 Ám | 30 Áin | ||

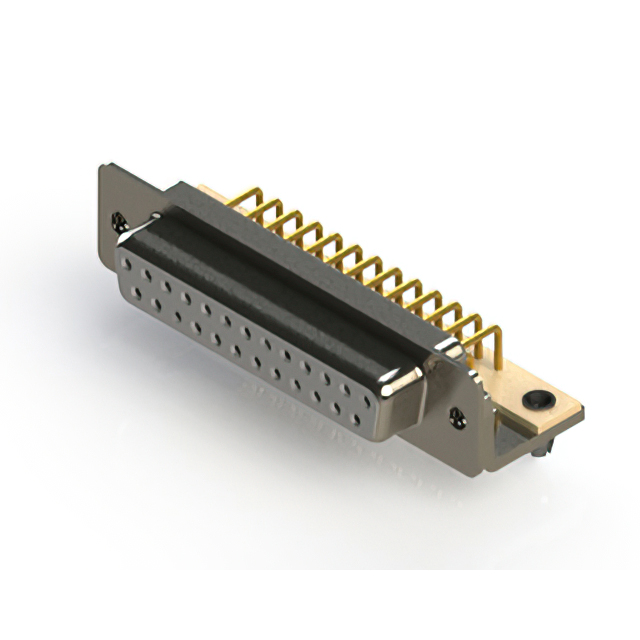

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | White | Copper Alloy | Right Angle Through Hole | B DB | 3 | Receptacle Female Sockets | 25 | D-Sub | 2 | Board Lock Mounting Brackets Shielded | Signal | Gold | Solder | UL94 V-0 | 5 A | Housing/Shell | 9.4 mm | 0.37 in | 0.38 µm | 15 µin | Nickel Plated Steel | 4-40 |
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Green | Copper Alloy | Right Angle Through Hole | B DB | 3 | Receptacle Female Sockets | 25 | D-Sub | 2 | Mounting Brackets Shielded | Signal | Gold | Solder | UL94 V-0 | 5 A | Housing/Shell | 9.4 mm | 0.37 in | 0.76 Ám | 30 Áin | Nickel Plated Steel | 4-40 |

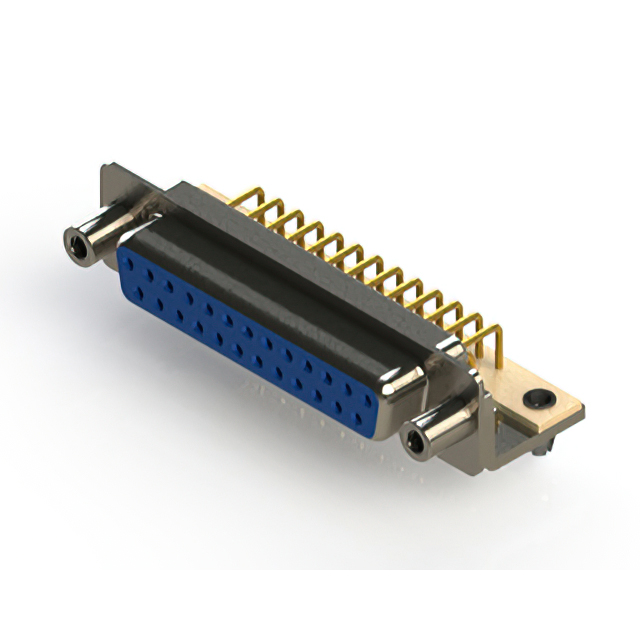

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Blue | Copper Alloy | Right Angle Through Hole | B DB | 3 | Receptacle Female Sockets | 25 | D-Sub | 2 | Mounting Brackets Shielded | Signal | Gold | Solder | UL94 V-0 | 5 A | Housing/Shell | 9.4 mm | 0.37 in | 0.38 µm | 15 µin | Nickel Plated Steel | 4-40 |
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Black | Copper Alloy | Right Angle Through Hole | B DB | 3 | Receptacle Female Sockets | 25 | D-Sub | 2 | Shielded | Signal | Gold | Solder | UL94 V-0 | 5 A | Housing/Shell (Unthreaded) | 9.4 mm | 0.37 in | 0.38 µm | 15 µin | Nickel Plated Steel |
