10063545 Series

Catalog

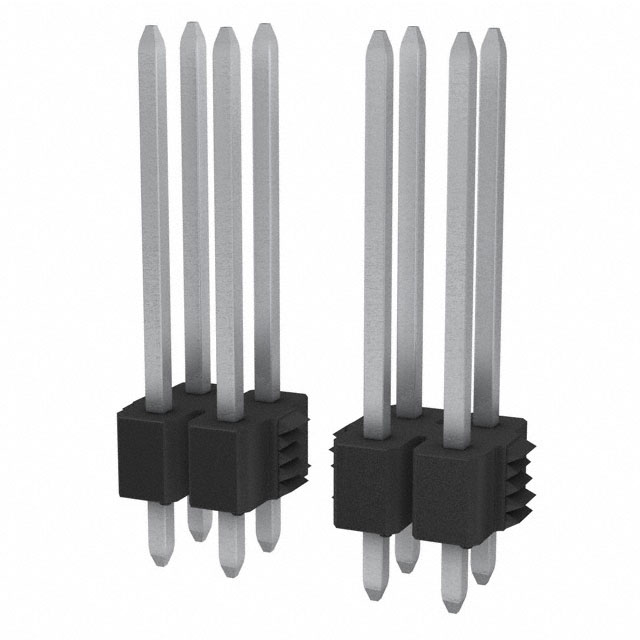

BERGSTRIP HDR 2X20 TL

Part	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Shape	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Current Rating (Amps)	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Contact Type	Number of Rows [custom]	Insulation Color	Fastening Type	Insulation Height	Insulation Height	Mounting Type	Contact Length - Post	Contact Length - Post	Number of Positions	Overall Contact Length	Contact Length - Post [x]	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating
Amphenol ICC (FCI) 10063545-440HT	40	120 µin	3.05 µm	Unshrouded	23.83 mm	0.938 in	UL94 V-0	Square	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	3 A	All	130 °C	-65 ░C	Header Breakaway	18.24 mm	0.718 in	Brass	Male Pin	2	Black	Push-Pull	0.1 in	2.54 mm	Through Hole	3.05 mm	0.12 in
Amphenol ICC (FCI) 10063545-400HLF		100 çin	2.54 çm	Unshrouded	0.646 in		UL94 V-0	Square	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	3 A	All	130 °C	-65 ░C	Header Breakaway			Brass	Male Pin	2	Black	Push-Pull	0.1 in	2.54 mm	Through Hole	2.3 mm		Cuttable	16.4 mm	0.091 "	Tin	0.455 in	11.56 mm
