THS4226 Series

Catalog

LOW-DISTORTION HIGH-SPEED RAIL-TO-RAIL OUTPUT WITH SHUTDOWN

Part	Current - Output / Channel	Supplier Device Package	Package / Case	Package / Case	Gain Bandwidth Product	Current - Input Bias	Voltage - Input Offset	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Min) [Min]	Mounting Type	Slew Rate	Current - Supply	-3db Bandwidth	Voltage - Supply Span (Max) [Max]	Amplifier Type	Number of Circuits	Utilized IC / Part	Supplied Contents	Board Type	Channels per IC	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Current - Supply (Main IC)
Texas Instruments THS4226DGQ	100 mA	10-HVSSOP	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	120 MHz	900 nA	3 mV	Rail-to-Rail	85 °C	-40 °C	2.7 V	Surface Mount	990 V/µs	14 mA	230 MHz	15 V	Voltage Feedback	2

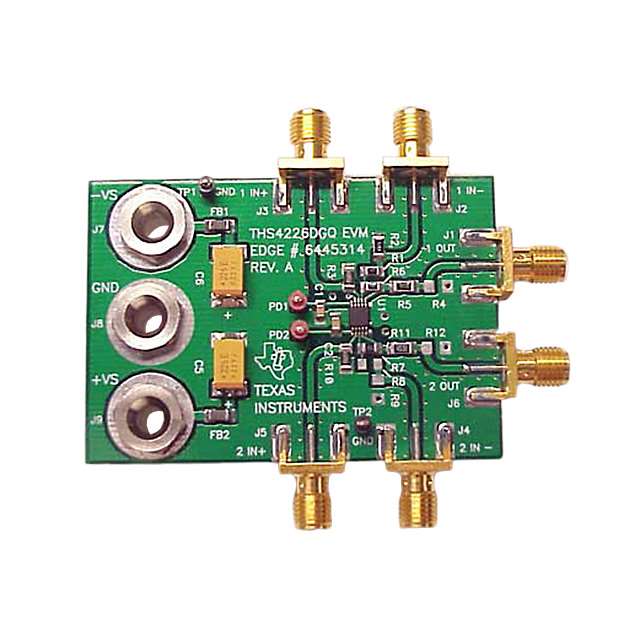

Texas Instruments THS4226EVM	100 mA							Rail-to-Rail Single-Ended					990 V/µs		230 MHz		Voltage Feedback		THS4226	Board(s)	Fully Populated	2 - Dual	-1.35 V 2.7 V	7.5 V 15 V	14 mA
