3153-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

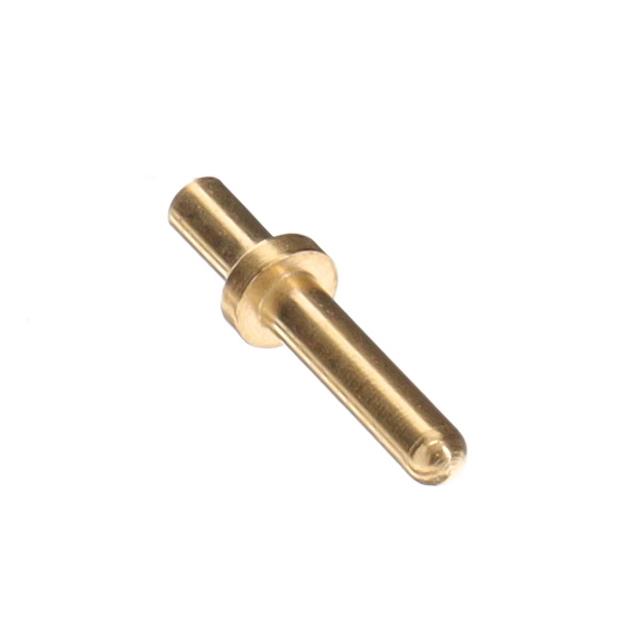

CONN PC PIN CIRC 0.040DIA GOLD
| Part | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Board Thickness | Board Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Style | Termination | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | PC Pin | 2.08 mm | 0.082 " | Through Hole | 4.57 mm | 0.18 in | Brass Alloy | Non-Insulated | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | 1.57 mm | 0.062 " | 0.043 in | 1.09 mm | Single End | Swage | Gold | 0.25 Ám | 10 Áin | 0.282 in | 7.16 mm |
 Mill-Max Manufacturing Corp. | PC Pin | 2.08 mm | 0.082 " | Through Hole | 4.57 mm | 0.18 in | Brass Alloy | Non-Insulated | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | 1.57 mm | 0.062 " | 0.043 in | 1.09 mm | Single End | Swage | Gold | 0.51 µm | 20 µin | 0.282 in | 7.16 mm |
Mill-Max Manufacturing Corp. | PC Pin | 2.08 mm | 0.082 " | Through Hole | 4.57 mm | 0.18 in | Brass Alloy | Non-Insulated | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | 1.57 mm | 0.062 " | 0.043 in | 1.09 mm | Single End | Swage | Gold | 1.27 µm | 50 µin | 0.282 in | 7.16 mm |
Mill-Max Manufacturing Corp. | PC Pin | 2.08 mm | 0.082 " | Through Hole | 4.57 mm | 0.18 in | Brass Alloy | Non-Insulated | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | 1.57 mm | 0.062 " | 0.043 in | 1.09 mm | Single End | Swage | Tin-Lead | 5.08 Ám | 200 Áin | 0.282 in | 7.16 mm |
