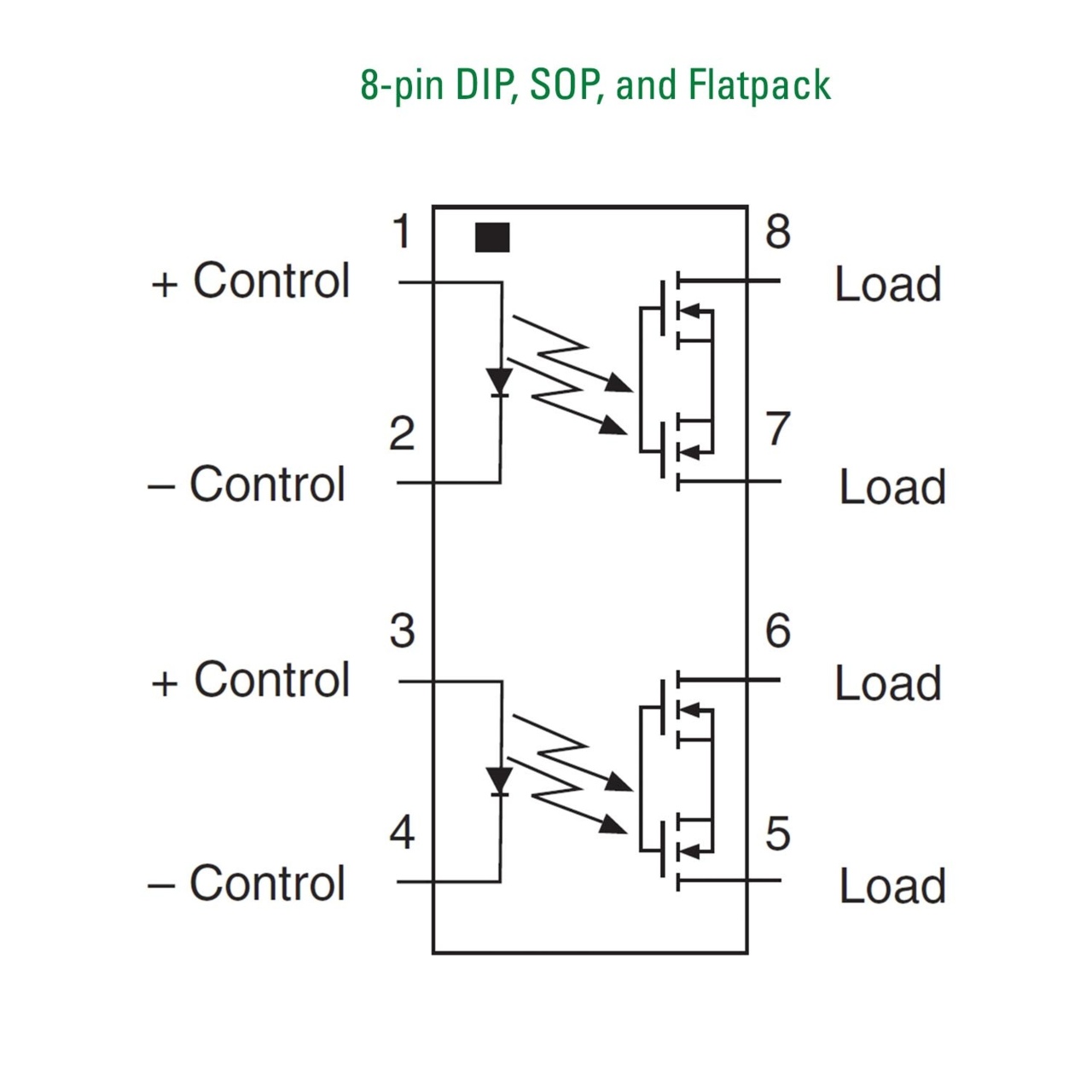

PAA150 Series

Catalog

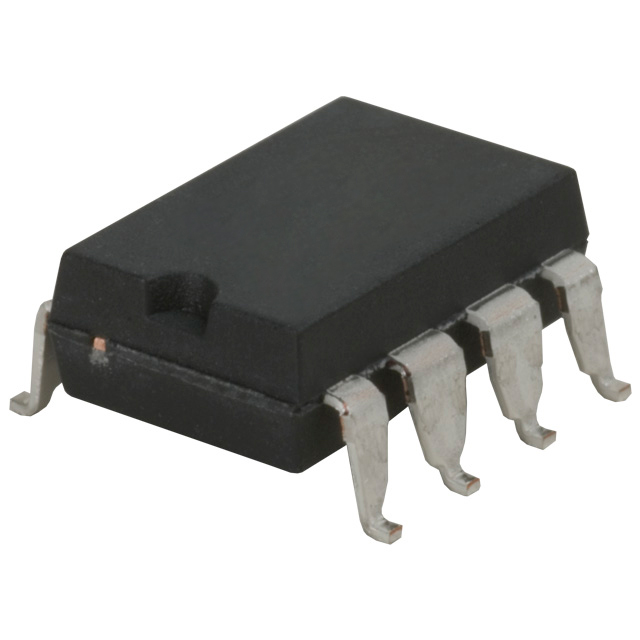

SOLID STATE RELAY 50MA 1.5V DC-IN 0.25A 250V AC/DC-OUT 8-PIN PDIP SMD TUBE

Part	Circuit	Output Type	Approval Agency	Mounting Type	On-State Resistance (Max) [Max]	Supplier Device Package	Termination Style	Load Current	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input	Package / Case
LITTELFUSE PAA150S	SPST-NO (1 Form A) x 2	AC DC	CSA EN UL	Surface Mount	7 Ohms	8-SMD	Gull Wing	250 mA	250 V	85 °C	-40 C	1.2 VDC	8-SMD (0.300" 7.62mm)
LITTELFUSE PAA150STR	SPST-NO (1 Form A) x 2	AC DC	CSA EN UL	Surface Mount	7 Ohms	8-SMD	Gull Wing	250 mA	250 V	85 °C	-40 C	1.2 VDC	8-SMD (0.300" 7.62mm)
LITTELFUSE PAA150P	SPST-NO (1 Form A) x 2	AC DC	CSA EN UL	Surface Mount	7 Ohms	8-FlatPack	Gull Wing	250 mA	250 V	85 °C	-40 C	1.2 VDC	8-SMD (0.300" 7.62mm)
LITTELFUSE PAA150PTR	SPST-NO (1 Form A) x 2	AC DC	CSA EN UL	Surface Mount	7 Ohms	8-FlatPack	Gull Wing	250 mA	250 V	85 °C	-40 C	1.2 VDC	8-SMD (0.300" 7.62mm)
LITTELFUSE PAA150STR	SPST-NO (1 Form A) x 2	AC DC	CSA EN UL	Surface Mount	7 Ohms	8-SMD	Gull Wing	250 mA	250 V	85 °C	-40 C	1.2 VDC	8-SMD (0.300" 7.62mm)
LITTELFUSE PAA150S	SPST-NO (1 Form A) x 2	AC DC	CSA EN UL	Surface Mount	7 Ohms	8-SMD	Gull Wing	250 mA	250 V	85 °C	-40 C	1.2 VDC	8-SMD (0.300" 7.62mm)
LITTELFUSE PAA150P	SPST-NO (1 Form A) x 2	AC DC	CSA EN UL	Surface Mount	7 Ohms	8-FlatPack	Gull Wing	250 mA	250 V	85 °C	-40 C	1.2 VDC	8-SMD (0.300" 7.62mm)
LITTELFUSE PAA150PTR	SPST-NO (1 Form A) x 2	AC DC	CSA EN UL	Surface Mount	7 Ohms	8-FlatPack	Gull Wing	250 mA	250 V	85 °C	-40 C	1.2 VDC	8-SMD (0.300" 7.62mm)
