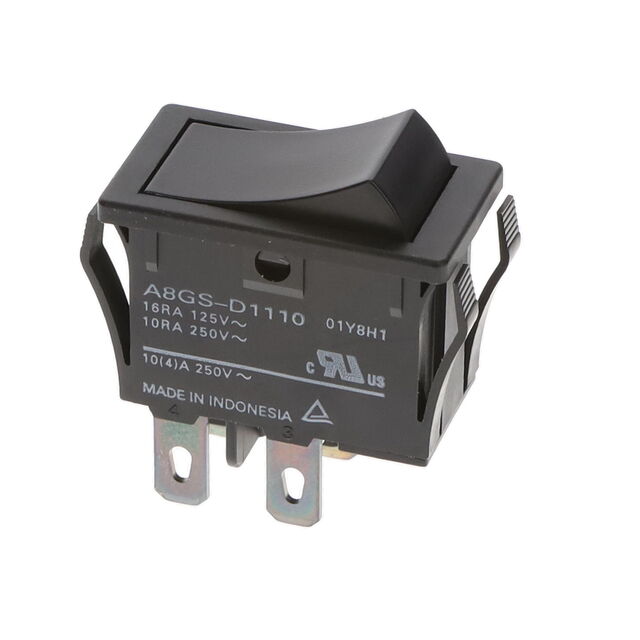

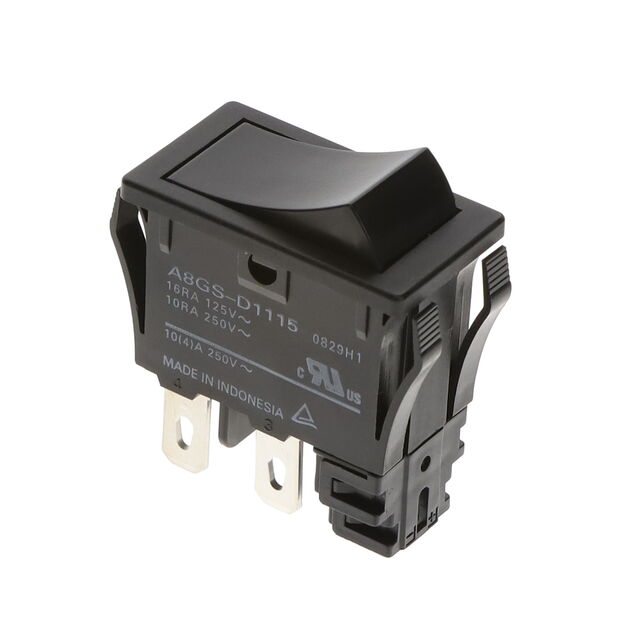

A8GS-D111 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH ROCKER DPST 16A 125V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Switch Function | Actuator Type | Voltage Rating - AC | Termination Style | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Circuit | Approval Agency | Mounting Type | Actuator Marking | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 30000 Steps | 10000 Cycles | 27.7 mm | 15.2 mm | On-Off | Concave (Curved) | 125 V | Solder Lug | 16 A | 55 °C | -10 °C | Black | DPST | cULus EN UL | Panel Mount Snap-In | No Marking | |
 Omron Electronics Inc-EMC Div | 30000 Steps | 10000 Cycles | 27.7 mm | 15.2 mm | On-Off | Concave (Curved) | 125 V | Solder Lug | 16 A | 55 °C | -10 °C | Black | DPST | cULus EN UL | Panel Mount Snap-In | No Marking | Remote Reset Function |
