XM4C12 Series

Catalog

IC MCU 32BIT 1MB FLASH 128TQFP

Part	EEPROM Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Core Processor	Peripherals	Oscillator Type	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Program Memory Type	Number of I/O	Connectivity	Package / Case	Data Converters	Speed	Mounting Type	Data Converters [custom]	Data Converters [custom]	Supplier Device Package
Texas Instruments XM4C129DNCPDTI1	6 K	2.97 V	3.63 V	1 MB	ARM® Cortex®-M4F	Brown-out Detect/Reset DMA POR PWM QEI WDT	Internal	32-Bit Single-Core	85 °C	-40 °C	256 K	FLASH	90	CANbus EBI/EMI Ethernet I2C IrDA QSSI UART/USART USB OTG	128-TQFP	A/D 20x12b	120 MHz	Surface Mount

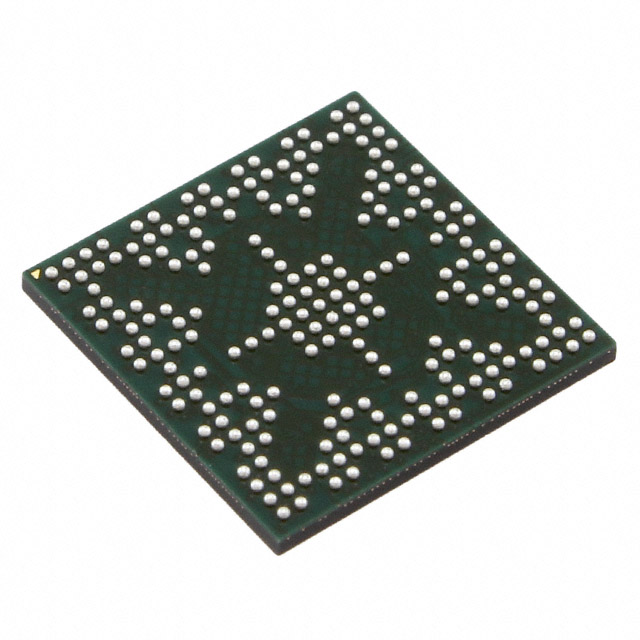

Texas Instruments XM4C129ENCZADI1	6 K	2.97 V	3.63 V	1 MB	ARM® Cortex®-M4F	Brown-out Detect/Reset DMA POR PWM QEI WDT	Internal	32-Bit Single-Core	85 °C	-40 °C	256 K	FLASH	140	CANbus EBI/EMI Ethernet I2C IrDA QSSI UART/USART USB OTG	212-VFBGA		120 MHz	Surface Mount	12	24	212-NFBGA (10x10)
Texas Instruments XM4C129XNCZADI1	6 K	2.97 V	3.63 V	1 MB	ARM® Cortex®-M4F	Brown-out Detect/Reset DMA LCD POR PWM QEI WDT	Internal	32-Bit Single-Core	85 °C	-40 °C	256 K	FLASH	140	CANbus EBI/EMI Ethernet I2C IrDA QSSI UART/USART USB OTG	212-VFBGA		120 MHz	Surface Mount	12	24	212-NFBGA (10x10)
Texas Instruments XM4C1292NCPDTI2	6 K	2.97 V	3.63 V	1 MB	ARM® Cortex®-M4F	Brown-out Detect/Reset DMA Motion Control PWM POR PWM WDT	Internal	32-Bit Single-Core	85 °C	-40 °C	256 K	FLASH	90	CANbus EBI/EMI Ethernet I2C IrDA QSSI UART/USART USB OTG	128-TQFP	A/D 20x12b	120 MHz	Surface Mount
Texas Instruments XM4C129DNCZADI1	6 K	2.97 V	3.63 V	1 MB	ARM® Cortex®-M4F	Brown-out Detect/Reset DMA POR PWM QEI WDT	Internal	32-Bit Single-Core	85 °C	-40 °C	256 K	FLASH	140	CANbus EBI/EMI Ethernet I2C IrDA QSSI UART/USART USB OTG	212-VFBGA		120 MHz	Surface Mount	12	24	212-NFBGA (10x10)
