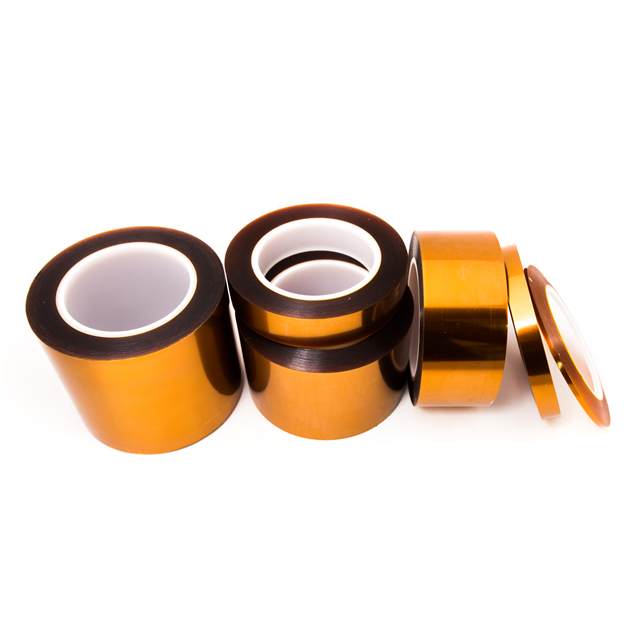

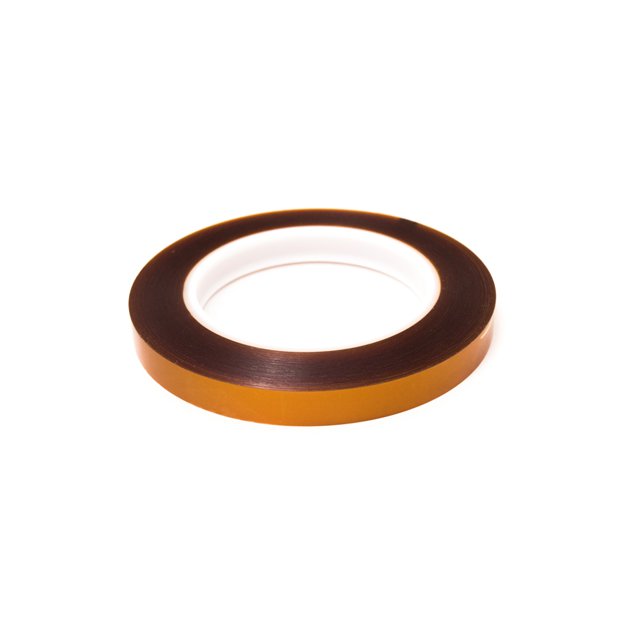

PPTDE Series

Manufacturer: Bertech

Catalog

TAPE DBL SIDED AMBER 7/16"X36YDS

Part	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Width	Width	Width	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Thickness	Thickness	Thickness	Usage	Backing, Carrier	Length	Length	Length	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Color	Width [y]	Width [y]	Width [x]	Width [x]	Width [x]	Shelf Life Start	Shelf Life	Width
Bertech PPTDE-7/16	1 mils	0.025 mm	0.001 "	7/16	0.44 "	11.13 mm	-99 °F	260 °C	260 °C	-73 °C	0.102 mm	0.004 in	4 mils	Masking	Polyimide	32.9 m	108 ft	36 yd	Double Coated Double Sided	3 mils	0.003 "	0.076 mm	Silicone	Amber
Bertech PPTDE-10MM	1 mils	0.025 mm	0.001 "				-99 °F	260 °C	260 °C	-73 °C	0.102 mm	0.004 in	4 mils	Masking	Polyimide	32.9 m	108 ft	36 yd	Double Coated Double Sided	3 mils	0.003 "	0.076 mm	Silicone	Amber	10 mm	0.39 in
Bertech PPTDE-2 1/4	1 mils	0.025 mm	0.001 "				-99 °F	260 °C	260 °C	-73 °C	0.102 mm	0.004 in	4 mils	Masking	Polyimide	32.9 m	108 ft	36 yd	Double Coated Double Sided	3 mils	0.003 "	0.076 mm	Silicone	Amber				57.15 mm	2.25 in
Bertech PPTDE-9	1 mils	0.025 mm	0.001 "				-99 °F	260 °C	260 °C	-73 °C	0.102 mm	0.004 in	4 mils	Masking	Polyimide	32.9 m	108 ft	36 yd	Double Coated Double Sided	3 mils	0.003 "	0.076 mm	Silicone	Amber	228.6 mm	9 in
Bertech PPTDE-3/4	1 mils	0.025 mm	0.001 "				-100 °F	260 °C	230 °C	-73 °C	0.102 mm	0.004 in	4 mils	Bonding High Temperature	Polyimide	32.9 m	108 ft	36 yd	Double Coated Double Sided	3 mils	0.003 "	0.076 mm	Silicone	Amber			0.75 in	19.05 mm	0.75 in	Date of Manufacture	18 Months
Bertech PPTDE-200MM	1 mils	0.025 mm	0.001 "				-99 °F	260 °C	260 °C	-73 °C	0.102 mm	0.004 in	4 mils	Masking	Polyimide	32.9 m	108 ft	36 yd	Double Coated Double Sided	3 mils	0.003 "	0.076 mm	Silicone	Amber				200 mm	7.87 "
Bertech PPTDE-125MM	1 mils	0.025 mm	0.001 "		4.92 in		-99 °F	260 °C	260 °C	-73 °C	0.102 mm	0.004 in	4 mils	Masking	Polyimide	32.9 m	108 ft	36 yd	Double Coated Double Sided	3 mils	0.003 "	0.076 mm	Silicone	Amber								125 mm
Bertech PPTDE-150MM	1 mils	0.025 mm	0.001 "				-99 °F	260 °C	260 °C	-73 °C	0.102 mm	0.004 in	4 mils	Masking	Polyimide	32.9 m	108 ft	36 yd	Double Coated Double Sided	3 mils	0.003 "	0.076 mm	Silicone	Amber				150 mm	5.91 in
Bertech PPTDE-7	1 mils	0.025 mm	0.001 "				-99 °F	260 °C	260 °C	-73 °C	0.102 mm	0.004 in	4 mils	Masking	Polyimide	32.9 m	108 ft	36 yd	Double Coated Double Sided	3 mils	0.003 "	0.076 mm	Silicone	Amber				177.8 mm	7 "
Bertech PPTDE-4 1/2	1 mils	0.025 mm	0.001 "		4.5 in		-99 °F	260 °C	260 °C	-73 °C	0.102 mm	0.004 in	4 mils	Masking	Polyimide	32.9 m	108 ft	36 yd	Double Coated Double Sided	3 mils	0.003 "	0.076 mm	Silicone	Amber								114.3 mm
