MPM3860 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
DC/DC SWITCHING REGULATOR, ADJUSTABLE, BUCK (STEP DOWN), 1 OUTPUT, 600 MV TO 6 A, 1.2 MHZ, 24 PINS,… MORE
| Part | Current - Output (Max) [Max] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Input (Max) [Max] | Voltage - Output 1 | Mounting Type | Package / Case | Voltage - Input (Min) [Min] | Features | Power (Watts) | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

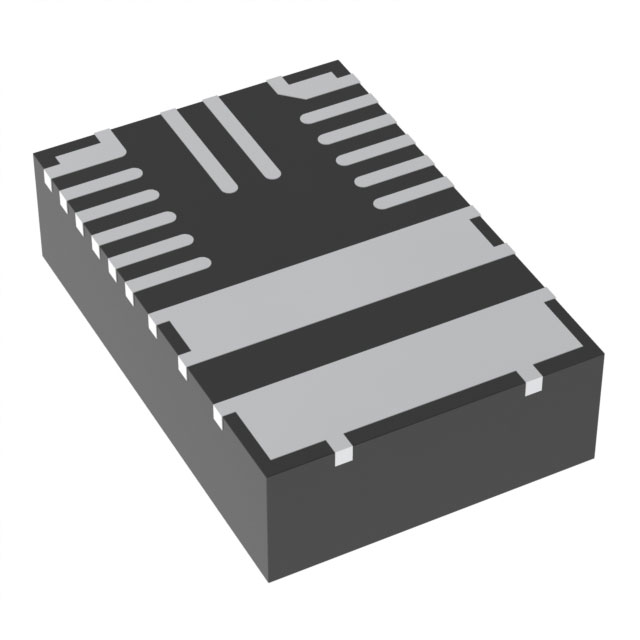

 Monolithic Power Systems Inc. | 6 A | 1 | 125 °C | -40 C | 24-QFN (4x6) | 7 V | 1 V | Surface Mount | 24-PowerLFQFN Module | 2.75 V | Adjustable Output | 6 W | Non-Isolated PoL Module | 0.06 " | 0.24 " | 1.7 mm | 0.16 in | 4 mm | 6 mm |
Monolithic Power Systems Inc. | 6 A | 1 | 125 °C | -40 C | 24-QFN (4x6) | 7 V | 1 V | Surface Mount | 24-PowerLFQFN Module | 2.75 V | Adjustable Output | 6 W | Non-Isolated PoL Module | 0.06 " | 0.24 " | 1.7 mm | 0.16 in | 4 mm | 6 mm |
