CC2640R2F-Q1 Series

SimpleLink™ 32-bit Arm® Cortex®-M3 Bluetooth® 5.1 Low Energy wireless MCU with 128-kB flash

Catalog

SimpleLink™ 32-bit Arm® Cortex®-M3 Bluetooth® 5.1 Low Energy wireless MCU with 128-kB flash

Part	Sensitivity	Data Rate (Max)	Protocol	GPIO	RF Family/Standard	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting [Max]	Current - Transmitting [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Frequency	Power - Output	Supplier Device Package	Current - Receiving [Max]	Current - Receiving [Min]	Memory Size	Package / Case	Mounting Type	Serial Interfaces	Modulation	Current - Receiving	Current - Transmitting	Grade	Qualification	Memory Size [custom]	Memory Size [custom]
Texas Instruments CC2640F128RHBT	-97 dBm	1 Mbps	Bluetooth v5.1	15	Bluetooth	1.8 V	3.8 V	9.1 mA	6.1 mA	85 °C	-40 °C	TxRx + MCU	2.4 GHz	5 dBm	32-VQFN (5x5)	6.1 mA	5.9 mA	28 kB 128 kB	32-VFQFN Exposed Pad	Surface Mount	I2C I2S JTAG SPI UART	DSSS GFSK O-QPSK
Texas Instruments CC2640F128RSMR	-97 dBm	1 Mbps	Bluetooth v4.1	10	Bluetooth	1.8 V	3.8 V	9.1 mA	6.1 mA	85 °C	-40 °C	TxRx + MCU	2.4 GHz	5 dBm	32-VQFN (4x4)	6.1 mA	5.9 mA	28 kB 128 kB	32-VFQFN Exposed Pad	Surface Mount	I2C I2S JTAG SPI UART	DSSS GFSK O-QPSK
Texas Instruments CC2640F128RGZT	-97 dBm	1 Mbps	Bluetooth v5.1	31	Bluetooth	1.8 V	3.8 V	9.1 mA	6.1 mA	85 °C	-40 °C	TxRx + MCU	2.4 GHz	5 dBm	48-VQFN (7x7)	6.1 mA	5.9 mA	28 kB 128 kB	48-VFQFN Exposed Pad	Surface Mount	I2C I2S JTAG SPI UART	DSSS GFSK O-QPSK
Texas Instruments CC2640R2FRHBT	-97 dBm	2 Mbps	Bluetooth v5.1	15	Bluetooth	1.8 V	3.8 V			85 °C	-40 °C	TxRx + MCU	2.4 GHz	5 dBm	32-VQFN (5x5)				32-VFQFN Exposed Pad	Surface Mount	I2C I2S SPI UART	GFSK	5.9 mA	9.1 mA
Texas Instruments CC2640R2FRSMT	-97 dBm	2 Mbps	Bluetooth v5.1	10	Bluetooth	1.8 V	3.8 V			85 °C	-40 °C	TxRx + MCU	2.4 GHz	5 dBm	32-VQFN (4x4)				32-VFQFN Exposed Pad	Surface Mount	I2C I2S SPI UART	FSK	5.9 mA	9.1 mA
Texas Instruments CC2640R2FTWRGZRQ1	-97 dBm	1 Mbps	Bluetooth v5.0	31	Bluetooth	1.8 V	3.8 V			105 ░C	-40 °C	TxRx + MCU	2.4 GHz	5 dBm	48-VQFN (7x7)			28 kB 128 kB	48-VFQFN Exposed Pad	Surface Mount Wettable Flank	I2C I2S SPI UART		6.1 mA		Automotive	AEC-Q100
Texas Instruments CC2640F128RSMT	-97 dBm	1 Mbps	Bluetooth v5.1	10	Bluetooth	1.8 V	3.8 V	9.1 mA	6.1 mA	85 °C	-40 °C	TxRx + MCU	2.4 GHz	5 dBm	32-VQFN (4x4)	6.1 mA	5.9 mA	28 kB 128 kB	32-VFQFN Exposed Pad	Surface Mount	I2C I2S JTAG SPI UART	DSSS GFSK O-QPSK
Texas Instruments CC2640R2LRGZR	-103 dBm	2 Mbps	Bluetooth v5.1	31	Bluetooth	1.8 V	3.8 V	9.1 mA	6.1 mA	85 °C	-40 °C	TxRx + MCU	2.4 GHz	5 dBm	48-VQFN (7x7)	6.1 mA	5.9 mA		48-VFQFN Exposed Pad	Surface Mount	I2C I2S JTAG SPI UART	GFSK					128 kB	20 kB

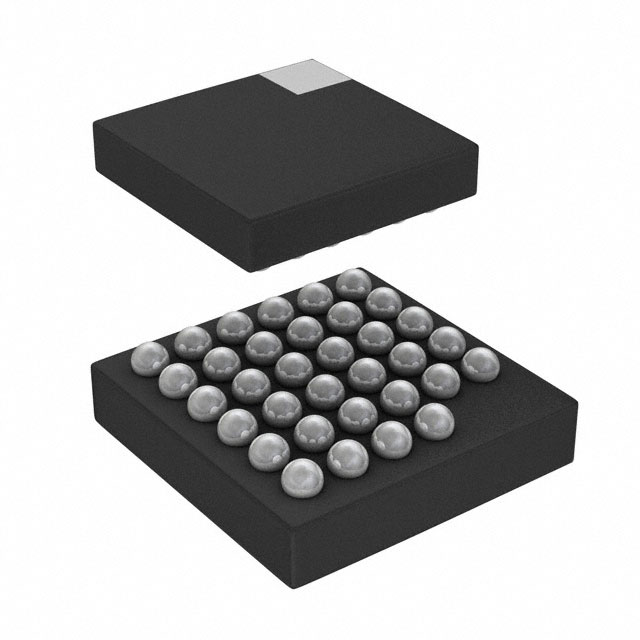

Texas Instruments CC2640R2FYFVT	-97 dBm	2 Mbps	Bluetooth v5.1	14	Bluetooth	1.8 V	3.8 V			85 °C	-40 °C	TxRx + MCU	2.4 GHz	5 dBm	34-DSBGA (2.71x2.71)			28 kB 128 kB	34-UFBGA DSBGA	Surface Mount	I2C I2S SPI UART	GFSK	5.9 mA	9.1 mA
Texas Instruments CC2640F128RGZR	-97 dBm	1 Mbps	Bluetooth v5.1	31	Bluetooth	1.8 V	3.8 V	9.1 mA	6.1 mA	85 °C	-40 °C	TxRx + MCU	2.4 GHz	5 dBm	48-VQFN (7x7)	6.1 mA	5.9 mA	28 kB 128 kB	48-VFQFN Exposed Pad	Surface Mount	I2C I2S JTAG SPI UART	DSSS GFSK O-QPSK

Catalog

SimpleLink™ 32-bit Arm® Cortex®-M3 Bluetooth® 5.1 Low Energy wireless MCU with 128-kB flash

Key Features

• MicrocontrollerPowerful Arm Cortex-M3EEMBC CoreMark score: 142Up to 48-MHz clock speed275KB of nonvolatile memory including 128KB of in-system Programmable FlashUp to 28KB of system SRAM, of which 20KB is ultra-low leakage SRAM8KB of SRAM for cache or system RAM use2-Pin cJTAG and JTAG debuggingSupports over-the-air upgrade (OTA)Ultra-low power sensor controllerCan run autonomous from the rest of the system16-bit architecture2KB of ultra-low leakage SRAM for code and dataEfficient code size architecture, placing drivers, TI-RTOS, and Bluetooth software in ROM to make more Flash available for the applicationRoHS-compliant package s2.7-mm × 2.7-mm YFV DSBGA34 (14 GPIOs)4-mm × 4-mm RSM VQFN32 (10 GPIOs)5-mm × 5-mm RHB VQFN32 (15 GPIOs)7-mm × 7-mm RGZ VQFN48 (31 GPIOs)PeripheralsAll digital peripheral pins can be routed to any GPIOFour general-purpose timer modules (eight 16-bit or four 32-bit timers, PWM each)12-bit ADC, 200-ksamples/s, 8-channel analog MUXContinuous time comparatorUltra-low power analog comparatorProgrammable current sourceUART, I2C, and I2S2× SSI (SPI, MICROWIRE, TI)Real-Time Clock (RTC)AES-128 security moduleTrue Random Number Generator (TRNG)Support for eight capacitive-sensing buttonsIntegrated temperature sensorExternal systemOn-chip internal DC/DC converterSeamless integration with CC2590 and CC2592 range extendersVery few external componentsPin compatible with the SimpleLink™ CC2640 and CC2650 devices in all VQFN packagesPin compatible with the SimpleLink™ CC2642R and CC2652R devices in 7-mm x 7-mm VQFN packagesPin compatible with the SimpleLink™ CC1350 device in 4-mm × 4-mm and 5-mm × 5-mm VQFN packagesLow powerWide supply voltage rangeNormal operation: 1.8 to 3.8 VExternal regulator mode: 1.7 to 1.95 VActive-Mode RX: 5.9 mAActive-Mode TX at 0 dBm: 6.1 mAActive-Mode TX at +5 dBm: 9.1 mAActive-Mode MCU: 61 µA/MHzActive-Mode MCU: 48.5 CoreMark/mAActive-Mode sensor controller: 0.4mA + 8.2 µA/MHzStandby: 1.1 µA (RTC running and RAM/CPU retention)Shutdown: 100 nA (wake up on external events)RF section2.4-GHz RF transceiver compatible with Bluetooth®Low Energy 5.1 and earlier LE specificationsExcellent receiver sensitivity (–97 dBm for BLE), selectivity, and blocking performanceLink budget of 102 dB for BLEProgrammable output power up to +5 dBmSingle-ended or differential RF interfaceSuitable for systems targeting compliance with worldwide radio frequency regulationsETSI EN 300 328 (Europe)EN 300 440 Class 2 (Europe)FCC CFR47 Part 15 (US)ARIB STD-T66 (Japan)DevelopmentTools and SoftwareFull-feature development kitsMultiple reference designsSmartRF™ StudioSensor Controller StudioIAR Embedded Workbench for Arm®Code Composer Studio™ Integrated Development Environment (IDE)Code Composer Studio™ Cloud IDEMicrocontrollerPowerful Arm Cortex-M3EEMBC CoreMark score: 142Up to 48-MHz clock speed275KB of nonvolatile memory including 128KB of in-system Programmable FlashUp to 28KB of system SRAM, of which 20KB is ultra-low leakage SRAM8KB of SRAM for cache or system RAM use2-Pin cJTAG and JTAG debuggingSupports over-the-air upgrade (OTA)Ultra-low power sensor controllerCan run autonomous from the rest of the system16-bit architecture2KB of ultra-low leakage SRAM for code and dataEfficient code size architecture, placing drivers, TI-RTOS, and Bluetooth software in ROM to make more Flash available for the applicationRoHS-compliant package s2.7-mm × 2.7-mm YFV DSBGA34 (14 GPIOs)4-mm × 4-mm RSM VQFN32 (10 GPIOs)5-mm × 5-mm RHB VQFN32 (15 GPIOs)7-mm × 7-mm RGZ VQFN48 (31 GPIOs)PeripheralsAll digital peripheral pins can be routed to any GPIOFour general-purpose timer modules (eight 16-bit or four 32-bit timers, PWM each)12-bit ADC, 200-ksamples/s, 8-channel analog MUXContinuous time comparatorUltra-low power analog comparatorProgrammable current sourceUART, I2C, and I2S2× SSI (SPI, MICROWIRE, TI)Real-Time Clock (RTC)AES-128 security moduleTrue Random Number Generator (TRNG)Support for eight capacitive-sensing buttonsIntegrated temperature sensorExternal systemOn-chip internal DC/DC converterSeamless integration with CC2590 and CC2592 range extendersVery few external componentsPin compatible with the SimpleLink™ CC2640 and CC2650 devices in all VQFN packagesPin compatible with the SimpleLink™ CC2642R and CC2652R devices in 7-mm x 7-mm VQFN packagesPin compatible with the SimpleLink™ CC1350 device in 4-mm × 4-mm and 5-mm × 5-mm VQFN packagesLow powerWide supply voltage rangeNormal operation: 1.8 to 3.8 VExternal regulator mode: 1.7 to 1.95 VActive-Mode RX: 5.9 mAActive-Mode TX at 0 dBm: 6.1 mAActive-Mode TX at +5 dBm: 9.1 mAActive-Mode MCU: 61 µA/MHzActive-Mode MCU: 48.5 CoreMark/mAActive-Mode sensor controller: 0.4mA + 8.2 µA/MHzStandby: 1.1 µA (RTC running and RAM/CPU retention)Shutdown: 100 nA (wake up on external events)RF section2.4-GHz RF transceiver compatible with Bluetooth®Low Energy 5.1 and earlier LE specificationsExcellent receiver sensitivity (–97 dBm for BLE), selectivity, and blocking performanceLink budget of 102 dB for BLEProgrammable output power up to +5 dBmSingle-ended or differential RF interfaceSuitable for systems targeting compliance with worldwide radio frequency regulationsETSI EN 300 328 (Europe)EN 300 440 Class 2 (Europe)FCC CFR47 Part 15 (US)ARIB STD-T66 (Japan)DevelopmentTools and SoftwareFull-feature development kitsMultiple reference designsSmartRF™ StudioSensor Controller StudioIAR Embedded Workbench for Arm®Code Composer Studio™ Integrated Development Environment (IDE)Code Composer Studio™ Cloud IDE

Description

The SimpleLink™ Bluetooth® low energy CC2640R2F-Q1 device is an AEC-Q100 compliant wireless microcontroller (MCU) targeting Bluetooth® 4.2 and Bluetooth® 5 low energy automotive applications such as Passive Entry/Passive Start (PEPS), remote keyless entry (RKE), car sharing, piloted parking, cable replacement, and smartphone connectivity. The CC2640R2F-Q1 device is part of the SimpleLink™ MCU platform from Texas Instruments™. The platform consists of Wi-Fi®, Bluetooth® low energy, Sub-1GHz, Ethernet, Zigbee, Thread, and host MCUs. These devices all share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink™ platform enables users to add any combination of the portfolio’s devices into their design, allowing 100 percent code reuse when design requirements change. For more information, visithttp://www.ti.com/wireless-connectivity/simplelink-solutions/overview/overview.html. With very low active RF and MCU current consumption, in addition to flexible low power modes, the CC2640R2F-Q1 provides excellent battery life and allows long-range operation on small coin-cell batteries and a low power-consumption footprint for nodes connected to the car battery. Excellent receiver sensitivity and programmable output power provide industry-leading RF performance that is required for the demanding automotive RF environment. The CC2640R2F-Q1 wireless MCU contains a 32-bit Arm® Cortex®-M3 processor that runs at 48MHz as the main application processor and includes the Bluetooth® 4.2 low energy controller and host libraries embedded in ROM. This architecture improves overall system performance and power consumption and frees up significant amounts of flash memory for the application. Additionally, the device is AEC-Q100 Qualified at the Grade 2 temperature range (–40°C to +105°C) and is offered in a 7mm × 7mm VQFN packagewith wettable flanks.The wettable flanks help reduce production-line cost and increase the reliability enabled by optical inspection of solder points. TheBluetooth Low Energy Software Stackis available free of charge fromti.com. The SimpleLink™ Bluetooth® low energy CC2640R2F-Q1 device is an AEC-Q100 compliant wireless microcontroller (MCU) targeting Bluetooth® 4.2 and Bluetooth® 5 low energy automotive applications such as Passive Entry/Passive Start (PEPS), remote keyless entry (RKE), car sharing, piloted parking, cable replacement, and smartphone connectivity. The CC2640R2F-Q1 device is part of the SimpleLink™ MCU platform from Texas Instruments™. The platform consists of Wi-Fi®, Bluetooth® low energy, Sub-1GHz, Ethernet, Zigbee, Thread, and host MCUs. These devices all share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink™ platform enables users to add any combination of the portfolio’s devices into their design, allowing 100 percent code reuse when design requirements change. For more information, visithttp://www.ti.com/wireless-connectivity/simplelink-solutions/overview/overview.html. With very low active RF and MCU current consumption, in addition to flexible low power modes, the CC2640R2F-Q1 provides excellent battery life and allows long-range operation on small coin-cell batteries and a low power-consumption footprint for nodes connected to the car battery. Excellent receiver sensitivity and programmable output power provide industry-leading RF performance that is required for the demanding automotive RF environment. The CC2640R2F-Q1 wireless MCU contains a 32-bit Arm® Cortex®-M3 processor that runs at 48MHz as the main application processor and includes the Bluetooth® 4.2 low energy controller and host libraries embedded in ROM. This architecture improves overall system performance and power consumption and frees up significant amounts of flash memory for the application. Additionally, the device is AEC-Q100 Qualified at the Grade 2 temperature range (–40°C to +105°C) and is offered in a 7mm × 7mm VQFN packagewith wettable flanks.The wettable flanks help reduce production-line cost and increase the reliability enabled by optical inspection of solder points. TheBluetooth Low Energy Software Stackis available free of charge fromti.com.
